Panasonic SA-PM10E - Page 21

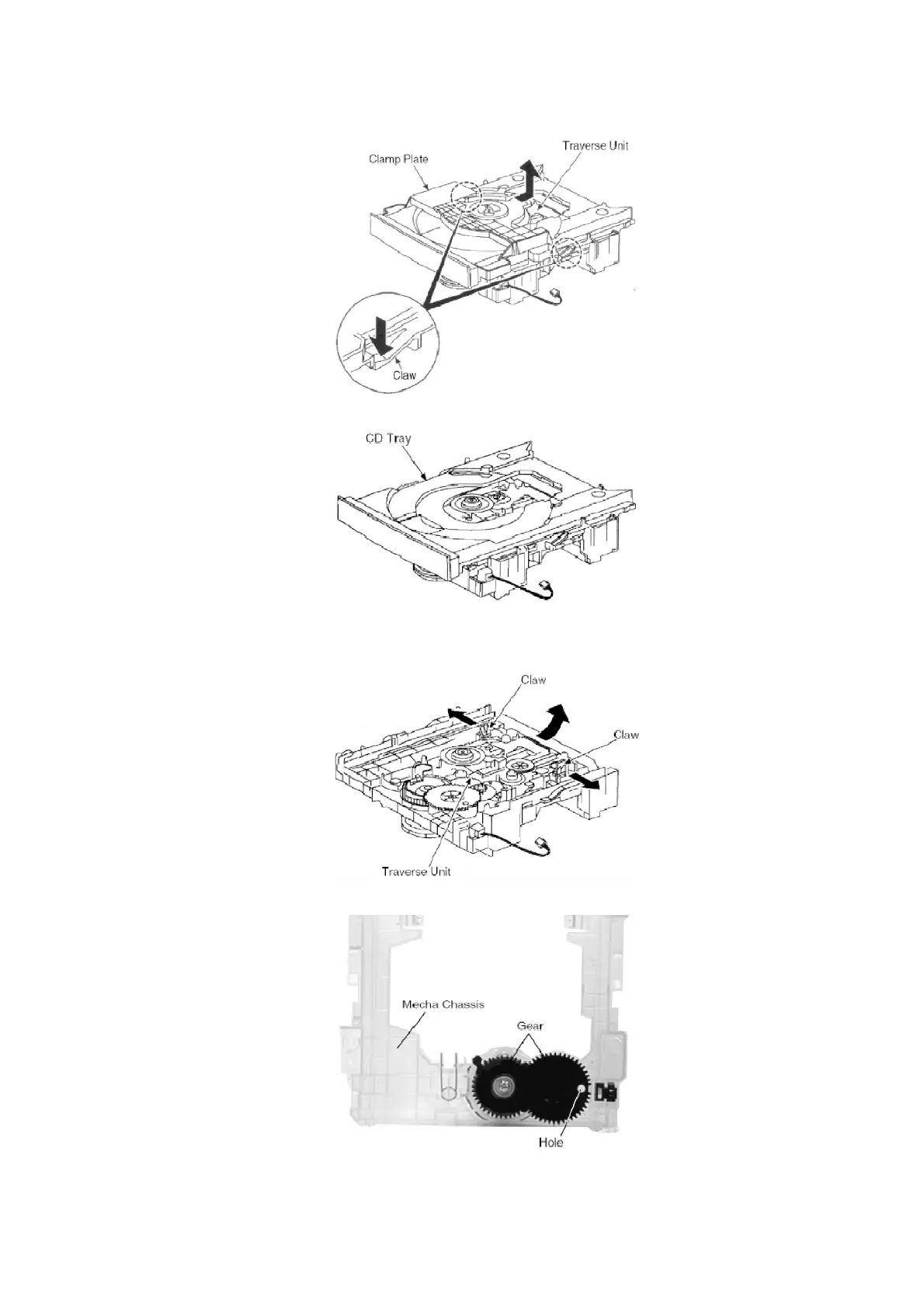

Step 2 Release the 2 claws and remove the clamp plate in the direction of the arrow.
Step 3 Lift up the CD Tray to remove it.
8.2.2. Disassembly of the CD Traverse Unit.
Step 1 Release the 2 claws and remove the CD Traverse Unit in the direction of the arrow.
21
