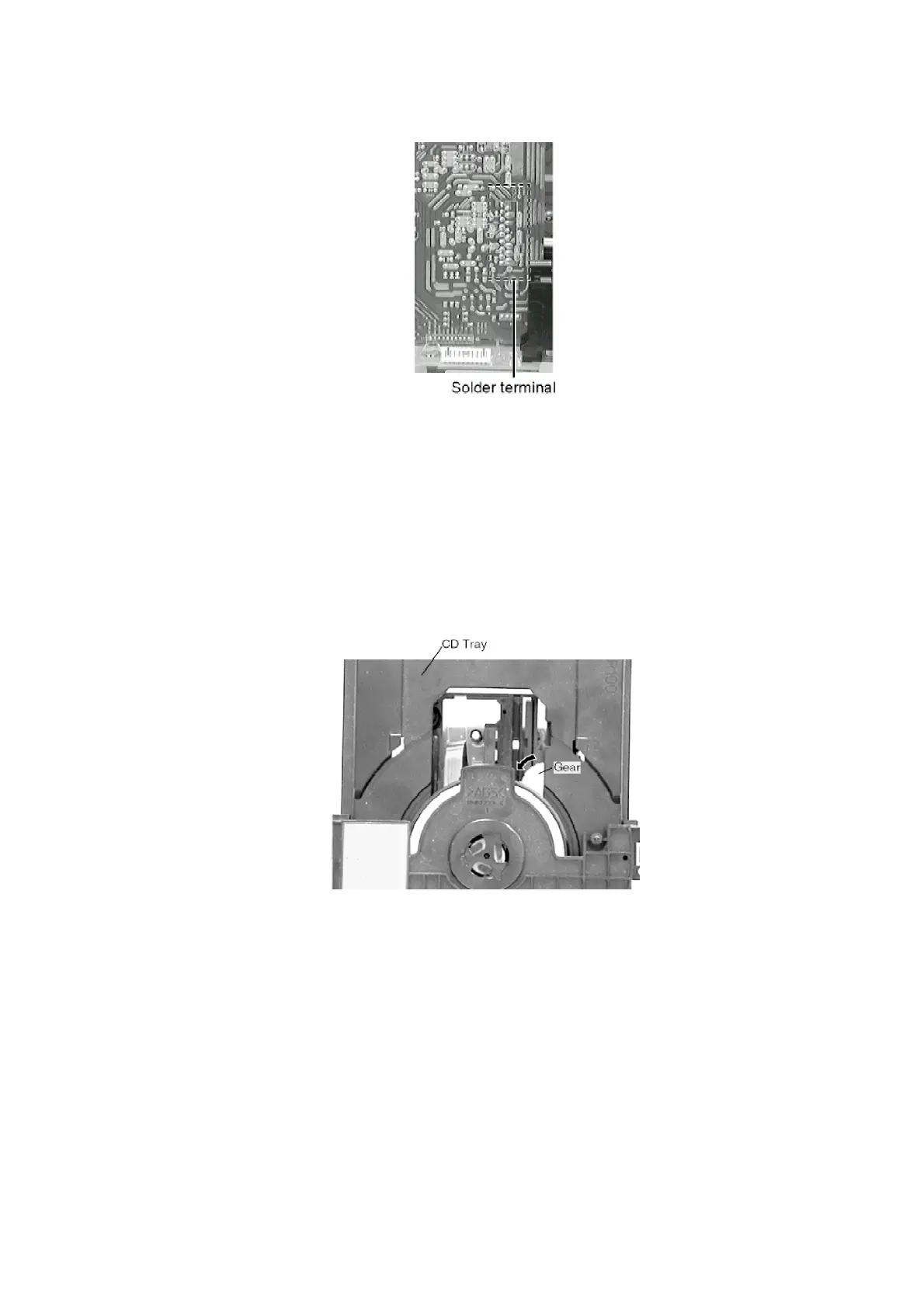

Step 2 Unsolder the terminals of Power Amp IC, transistor and replace the component.
8.2. Disassembly and Assembly of the Disc Tray and CD Traverse
Unit
- Follow the (Step 1) - (Step 4) of Item 8.1.1.
- Follow the (Step 1) - (Step 5) of Item 8.1.2.
- Follow the (Step 1) - (Step 9) of Item 8.1.3.
- Follow the (Step 1) - (Step 3) of Item 8.1.4.
8.2.1. Disassembly of the Disc Tray.
Step 1 Turn the gear counter clock wise until the CD Tray starts to move out.
20
