- Check the Transformer P.C.B. as shown.
7.1.2. Checking for the Main P.C.B.
Step 5 Remove 2 screws

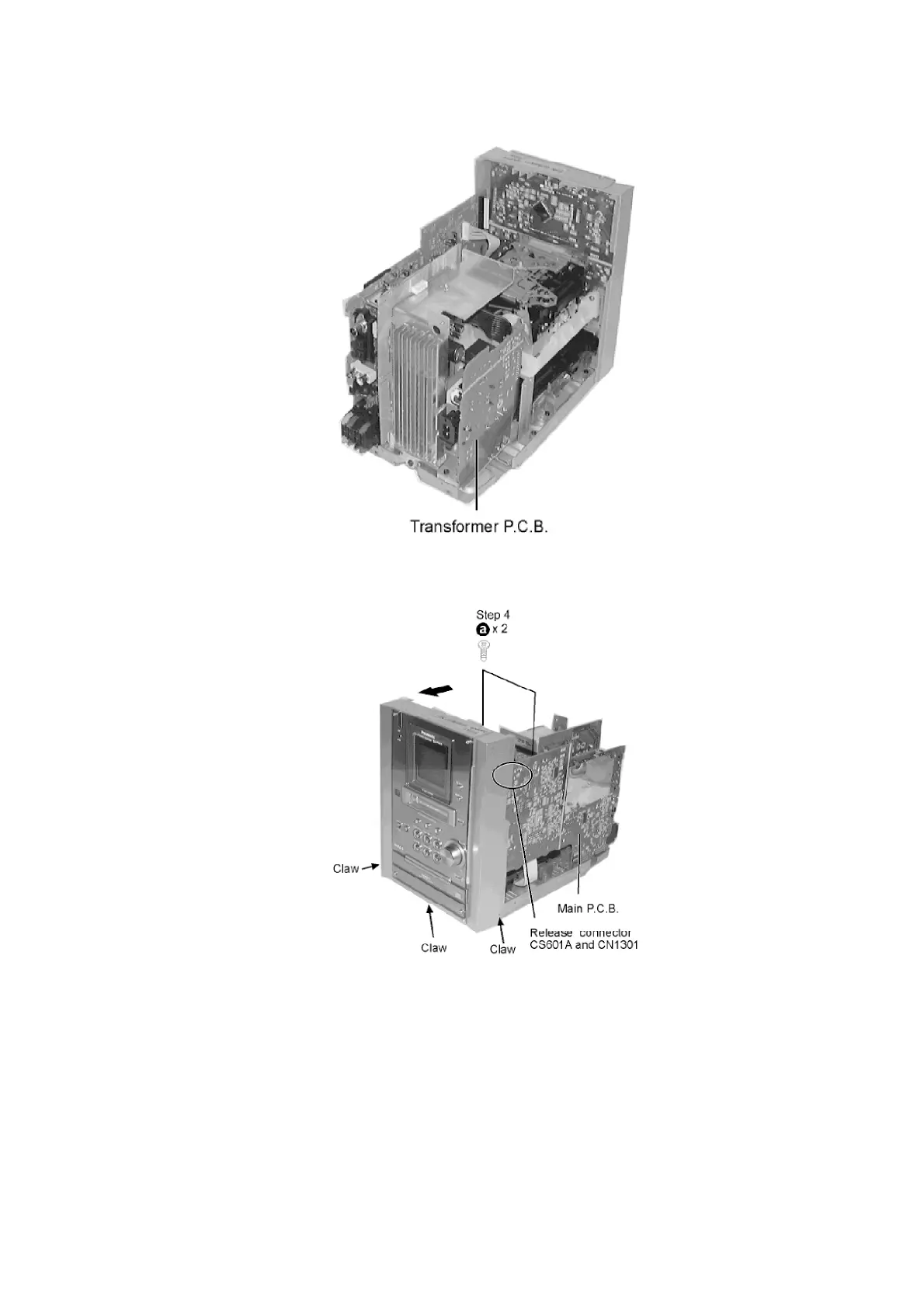

Step 6 Push claws both side and bottom. Release connectors CS601A and CN1301 between
Panel P.C.B. and Main P.C.B. Push front panel forward.
- Check the Main P.C.B. as shown.
7.1.3. Checking for the CD Servo P.C.B.
11
