Panasonic SA-PM25 - Mechanical Unit Disassembly

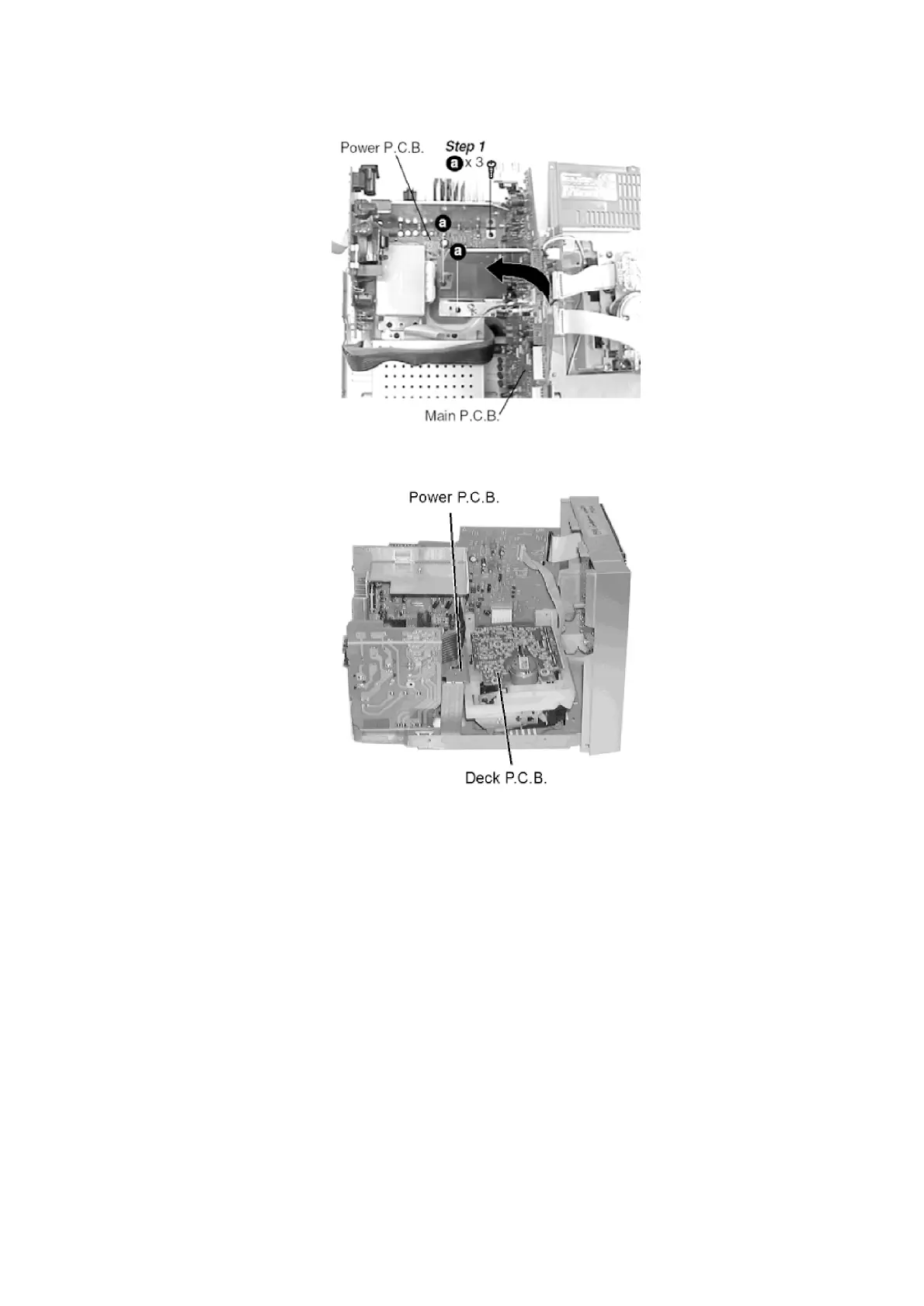

Step 2 Lift up the Main P.C.B. together with the Power P.C.B. and rotate left then place the P.C.B.
as shown in the following figure.
- Check the Power P.C.B. as shown.
7.2. Disassembly and Assembly of the Disc Tray and CD Traverse
Unit
7.2.1. Disassembly of the Disc Tray.
13
