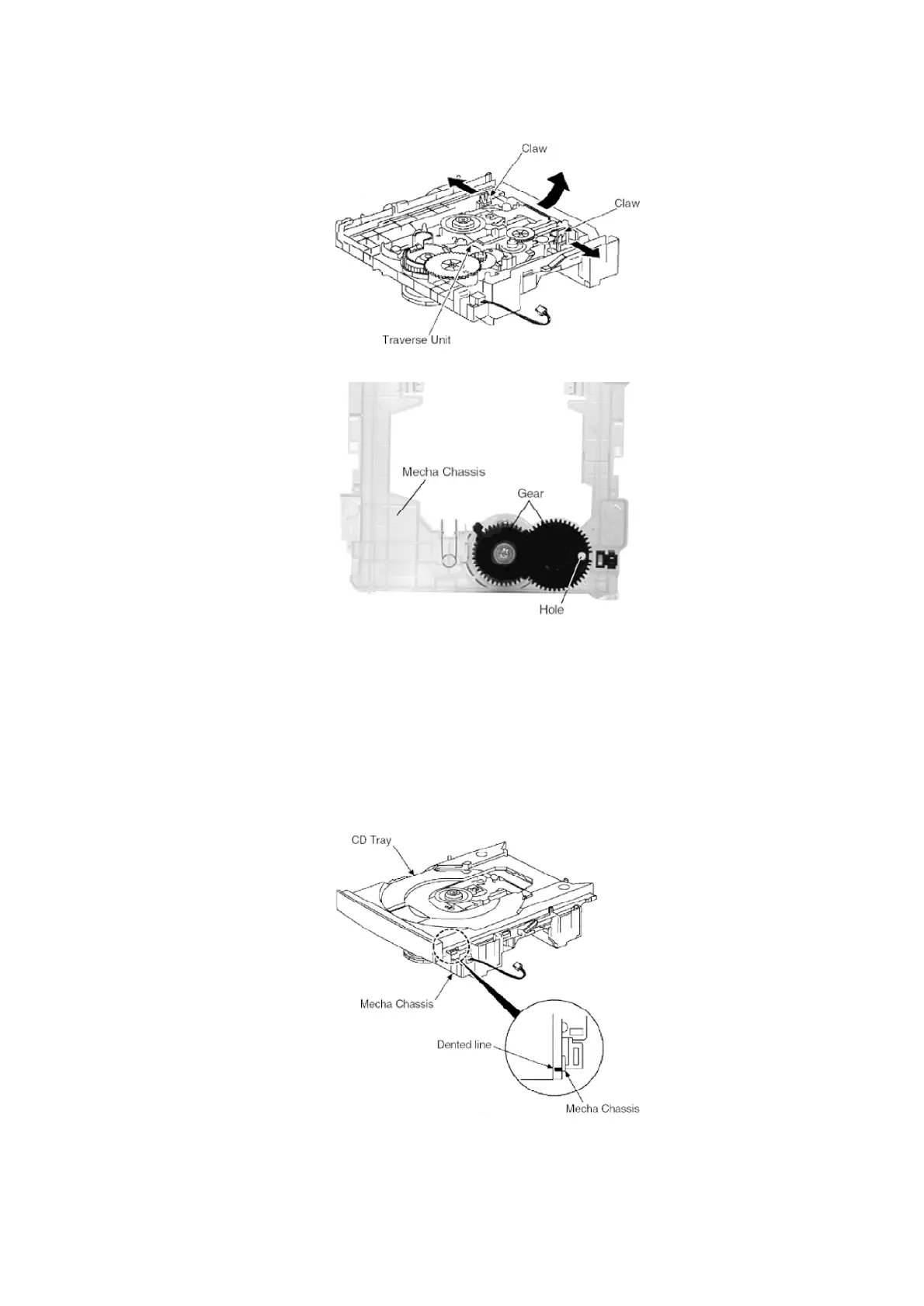

Step 1 Release the 2 claws and remove the CD Traverse Unit in the direction of the arrow.
NOTE :
1. Follow the reverse procedure to replace the CD Traverse Unit and
CD Tray.
2. Make sure that the 2 gear is in position shown above and the hole
on the right gear is align with the hole below it when replacing the
CD Traverse Unit and CD Tray.
NOTE : When replacing the CD Tray, make sure the Dented line is at the position as shown.
7.3. Main Component Replacement Procedure
15
