Fig. 5

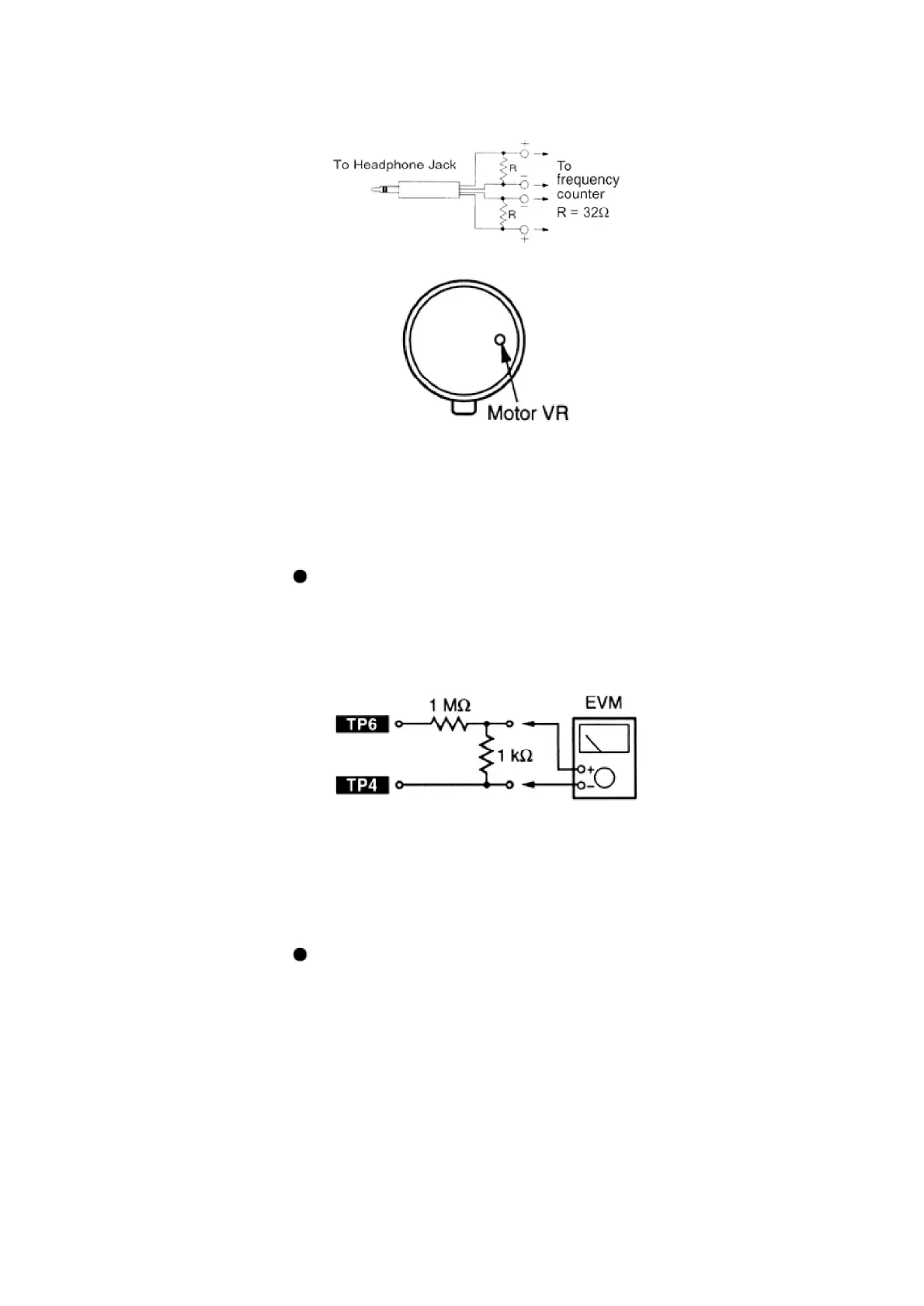

9.1.3. Bias Vlotage Check
1. Connect the measuring instrument as shown in Fig. 6.
2. Set the unit to “AUX” position.
3. Insert the normal blank tape (QZZCRA) and set the unit to “REC”
mode (use “ REC/STOP” key).
4. Measure and make sure that the output is within the standad value.
[Standard value : 16 ± 3mV]
Fig. 6
9.1.4. Bias Frequency Check
1. Connect the measuring instrument as shown in Fig. 7.
2. Set the unit to “AUX” position.
3. Insert the normal blank tape (QZZCRA) and set the unit to “REC”
mode (use “ REC/STOP” key).
4. Measure and make sure that the output is within the standard
value.
[Standard value : 98 ± 8kHz]
Fig. 7
22
