8.1. Checking Procedure for Each Major P.C.B.

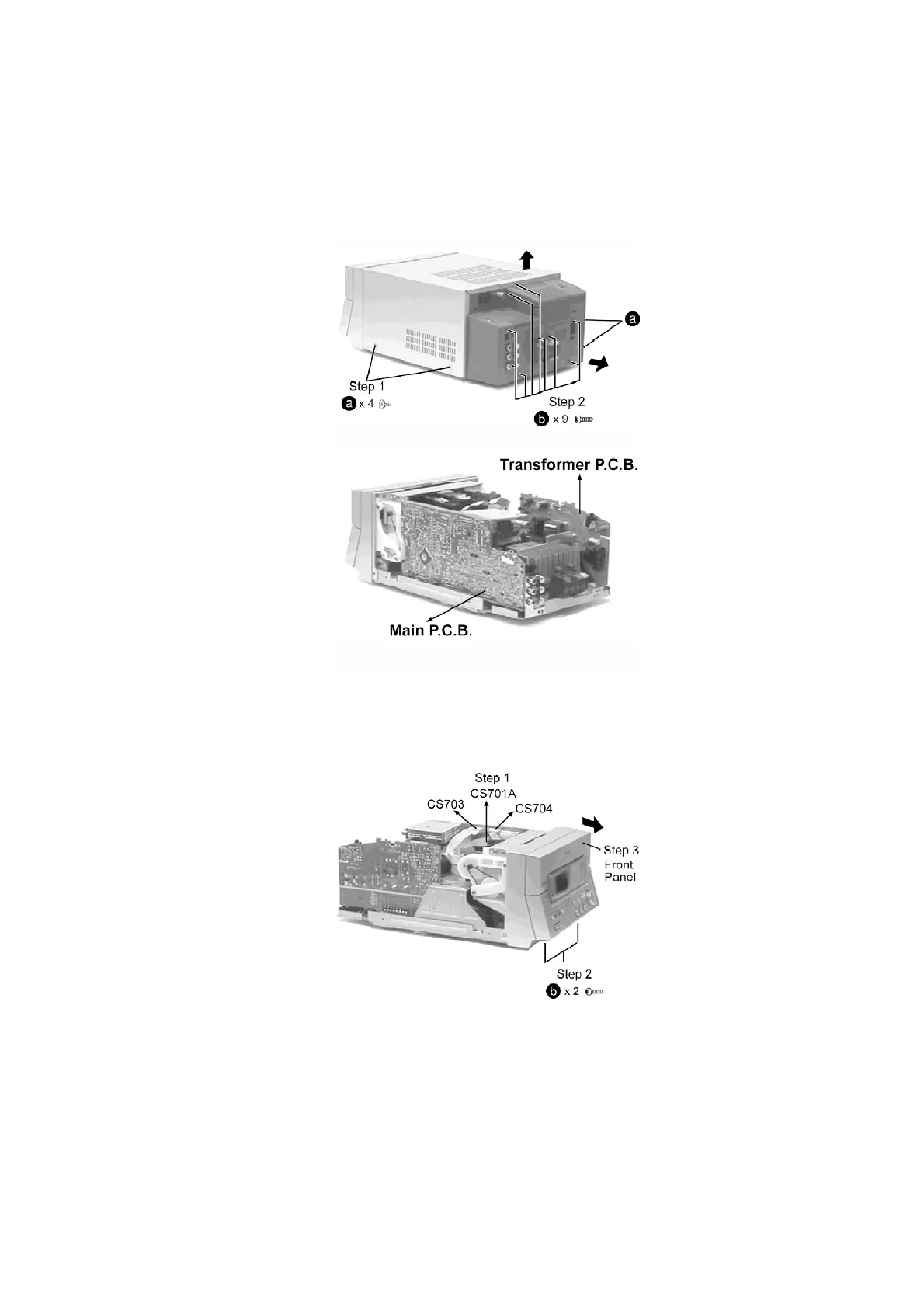

8.1.1. Checking for the Transformer P.C.B. and Main P.C.B.
- Check the Transformer P.C.B. and Main P.C.B. as shown.
8.1.2. Checking for the Panel P.C.B., CD Loding P.C.B., MD Loding P.C.B. and
Tact Switch P.C.B.
Step 1 Disconnect CS701A, CS703 and CS704.
Step 2 Unscrew all the screws.
Step 3 Remove the front panel in the direction of arrow shown.
