- Reconnect all the connectors.

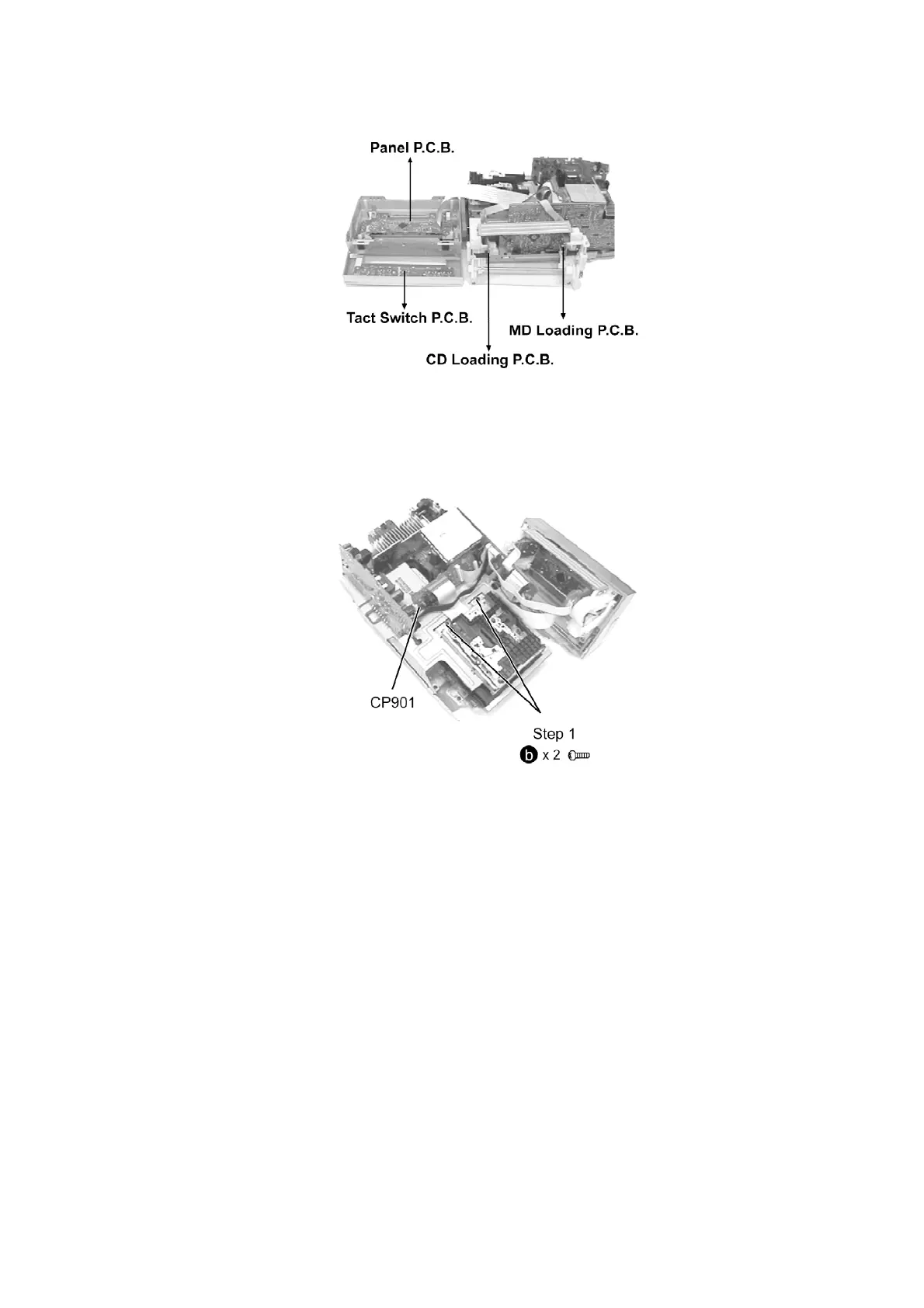

- Check the Panel P.C.B., CD Loding P.C.B., MD Loding P.C.B. and
Tact Switch P.C.B. as shown.
8.1.3. Checking for the MD Servo P.C.B. and MD Connector P.C.B.
Step 1 Unscrew all the screws and disconnect the connector (CP901).
