Panasonic SA-PM65MD - Page 17

- Reconnect the connector.

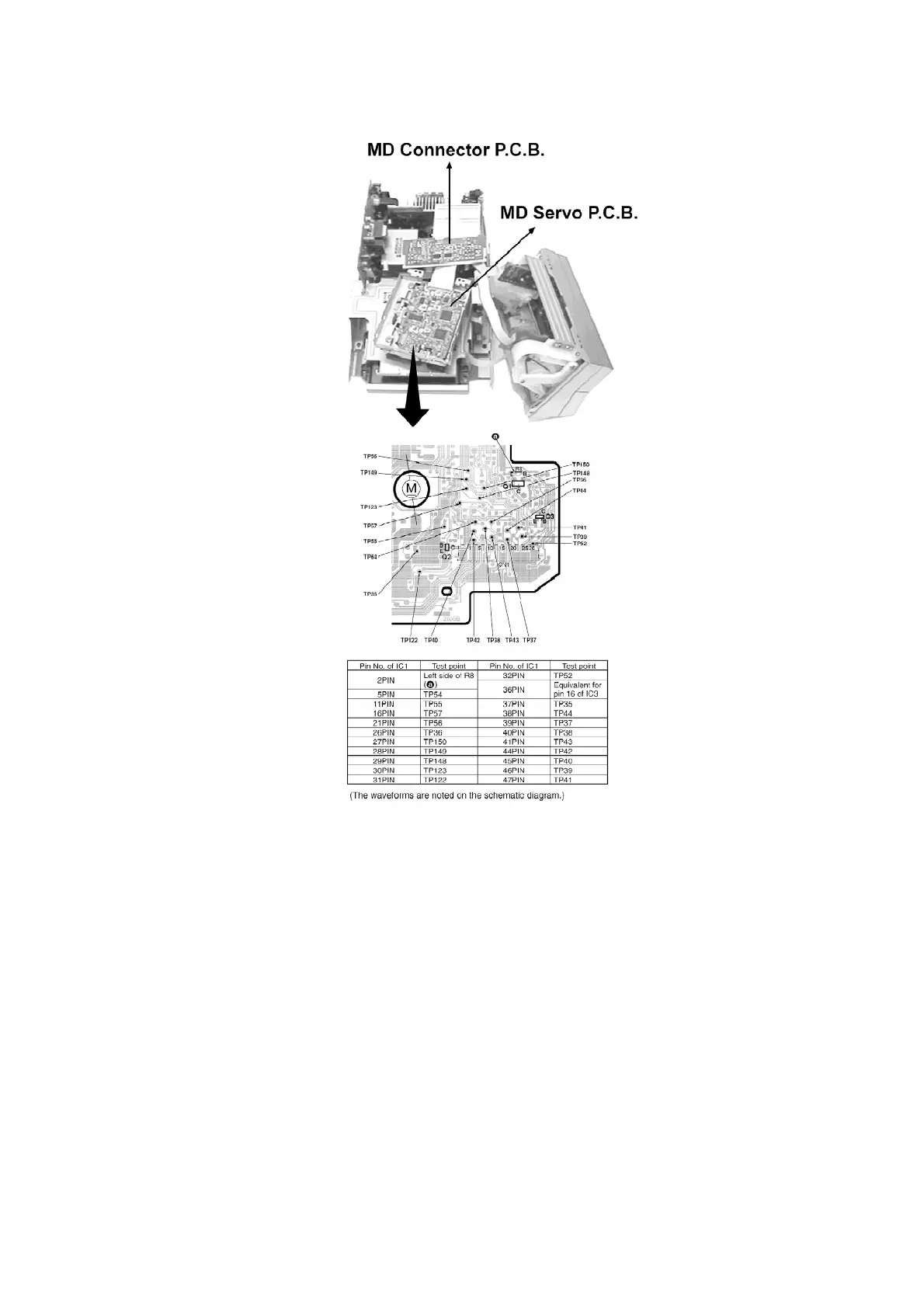

- Check the MD Servo P.C.B. and MD Connector P.C.B. as shown.
- When checking the IC1 on the MD Servo P.C.B., it can be measured
with test point on the MD Servo P.C.B.
8.1.4. Checking for the CD Servo P.C.B.
17
