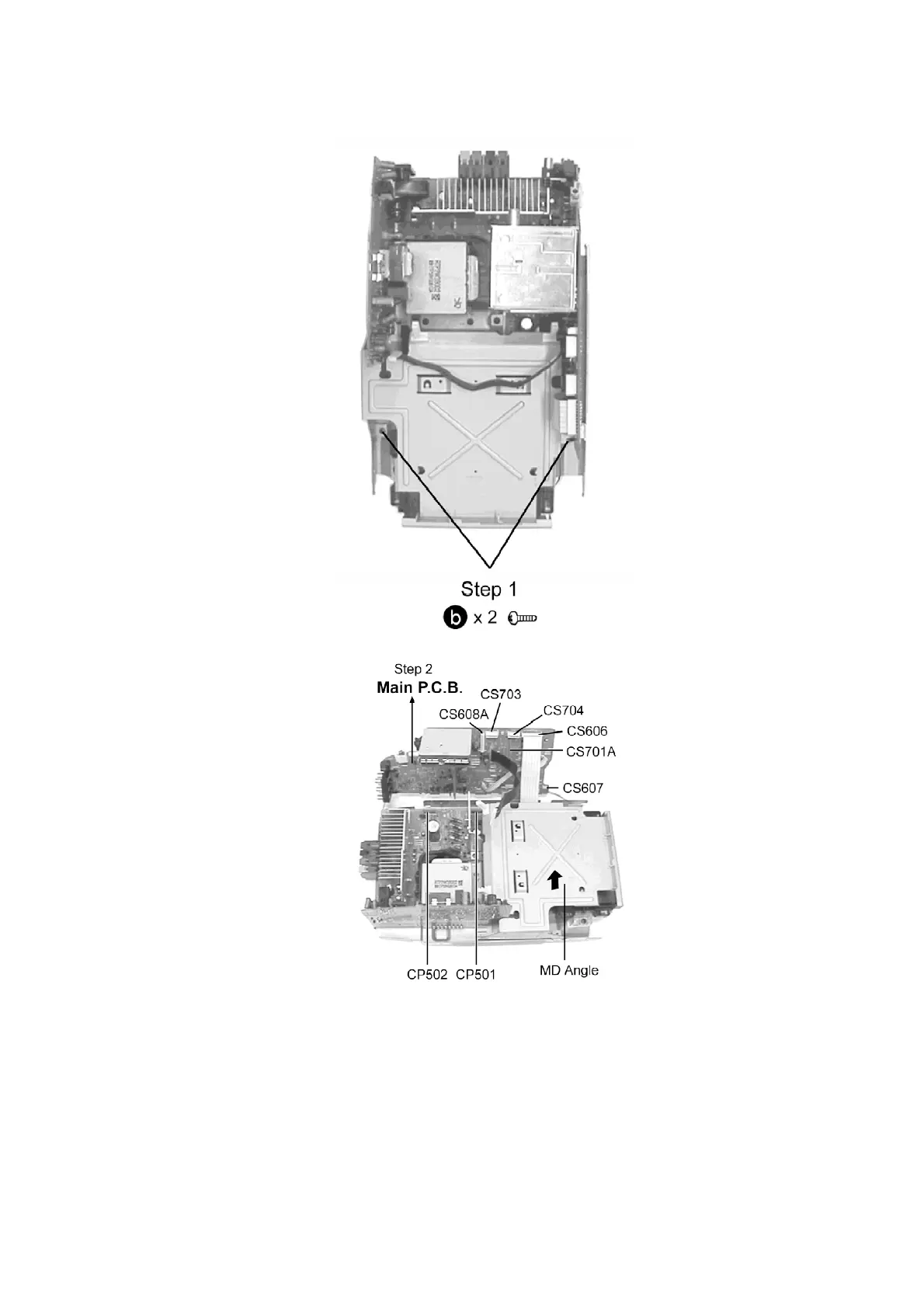

Step 1 Unscrew all the screws.
Step 2 Lift up the Main P.C.B., disconnect all connectors as shown and lift up the MD Angle in
the direction of arrow shown.
18
