Panasonic SA-PM65MD - Page 27

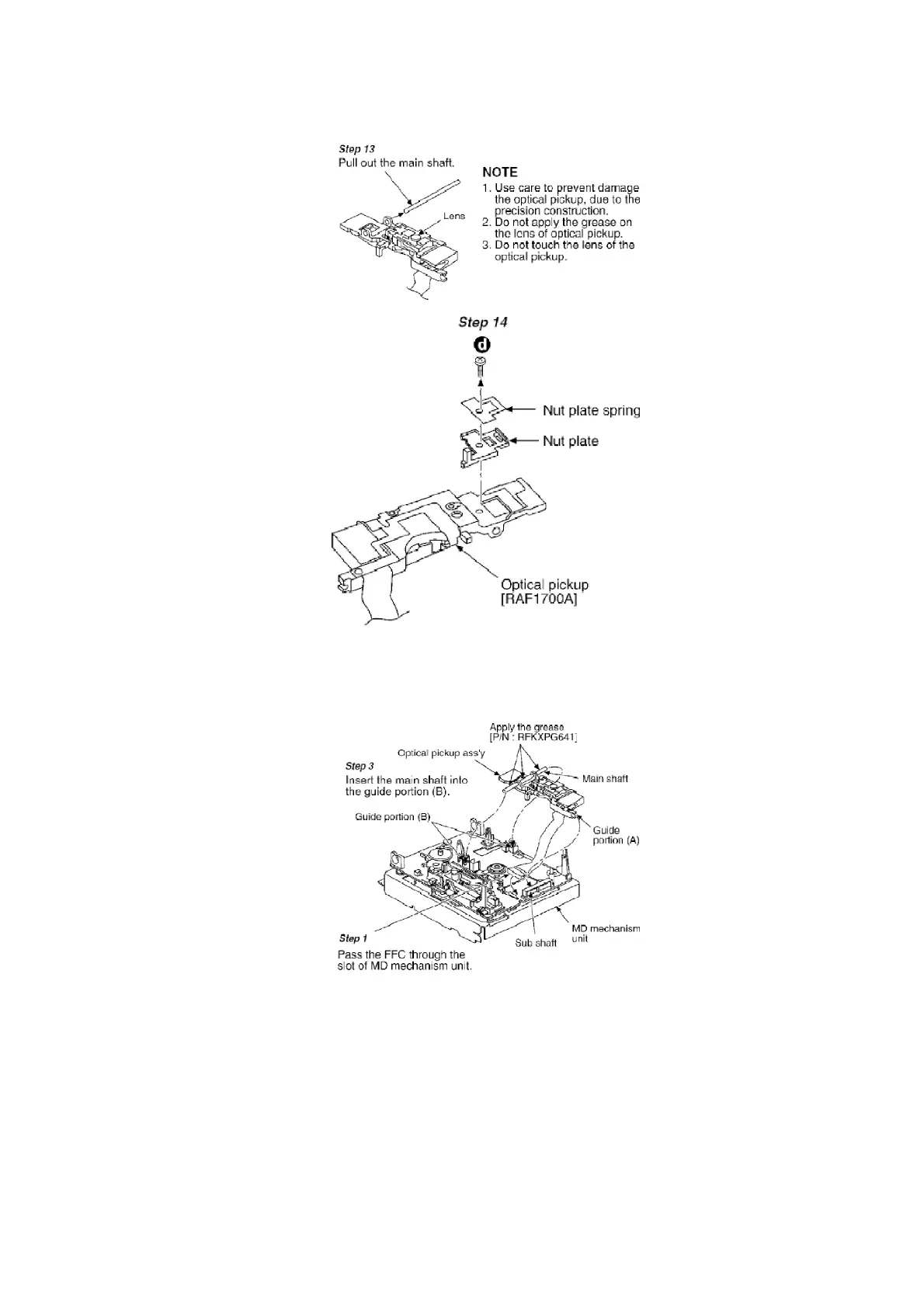

Step 15 Remove the nut plate spring and nut plate.
Notice for installing the optical pickup
Step 2 Align the guide portion (A) of optical pickup with the sub shaft.
Note : Take care not to bend the FFC.
27
