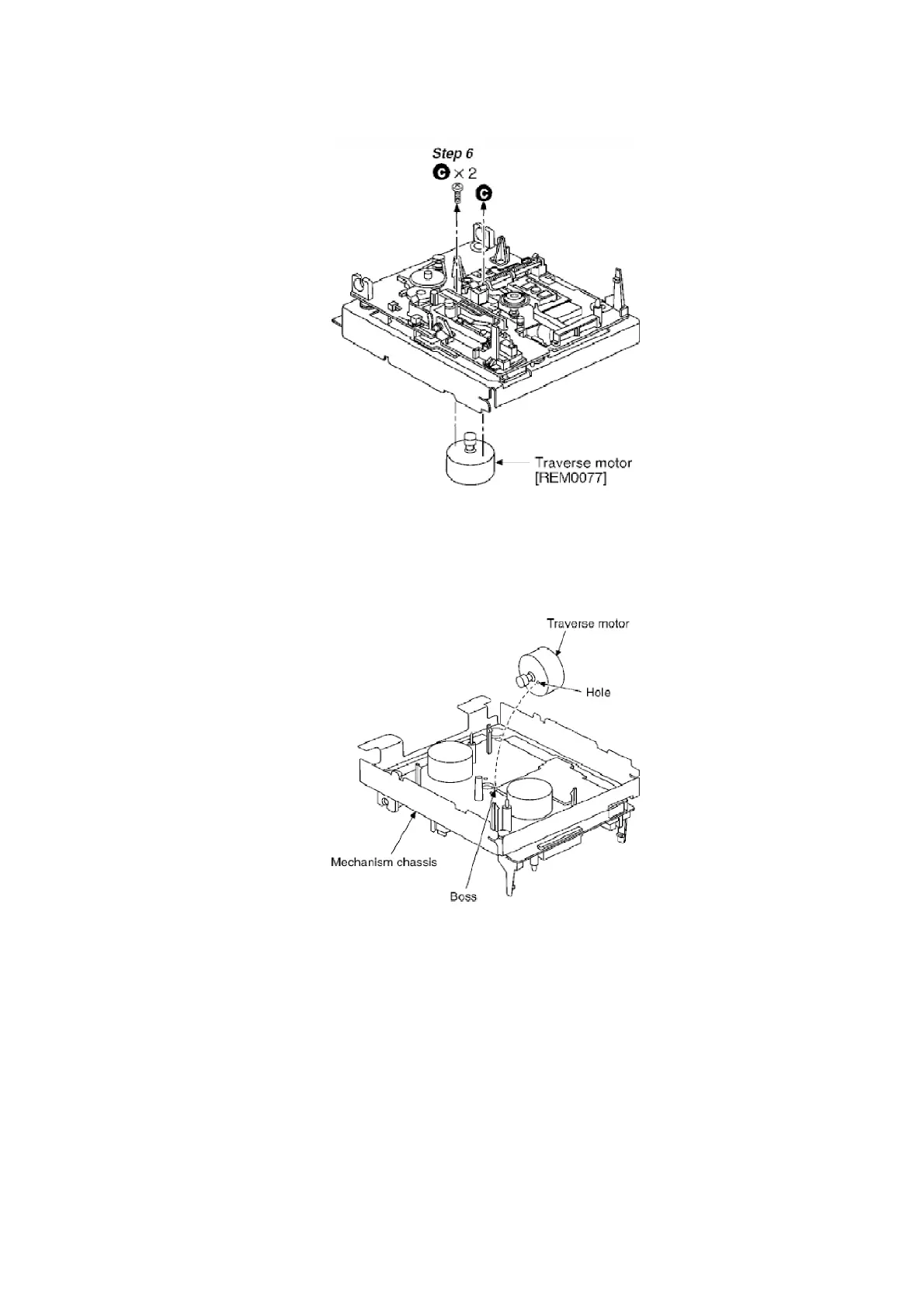

Notice for installing the traverse motor
- Align the hole of traverse motor with the boss of mechanism
chassis and then install the traverse motor.
9. Self-Diagnostic Display Function
This unit is equipped with a self-diagnostic function which, in the event of a malfunction,
automatucally display a code indication the nature of the malfunction. Use this self-diagnostic
function when servicing the unit.
9.1. Entering self-diagnostic Mode
1. Turn the power on.
2. Press CD play button with no CD, cassette or MD loaded.
3. Press and hold the STOP button for at least 2 seconds, and while
31
