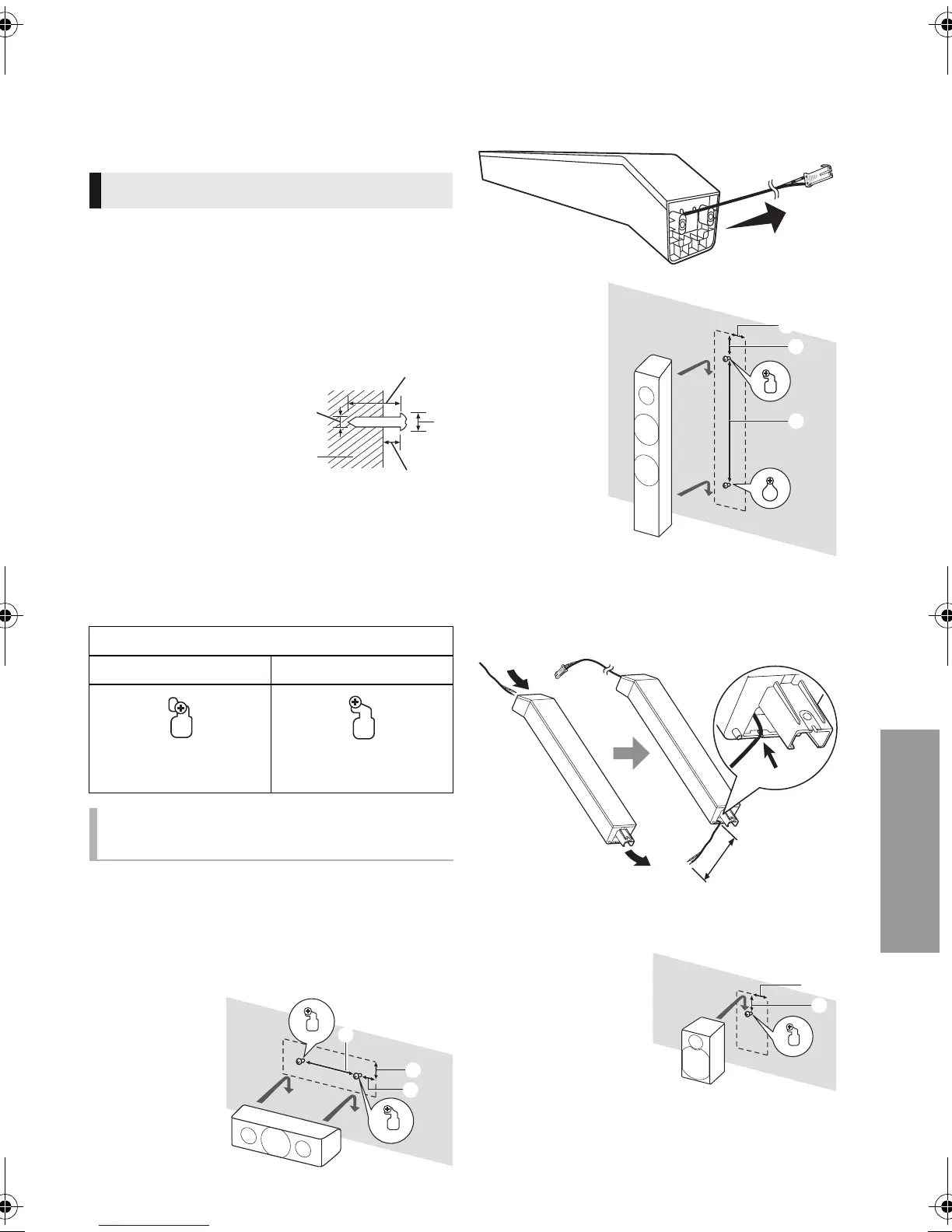

Speaker installation option
Consult a qualified building contractor when
attaching the speakers to a wall. Improper
attachment may result in damage to the wall and
speakers and personal injury.
You can attach all of the speakers (except
subwoofer) to a wall.
≥ The wall or pillar on which the speakers are to
be attached should be capable of supporting
10 kg (22 lbs) per screw.
1 Drive a screw (not supplied) into the wall.
A At least 30 mm
(1
3
/16q)
B ‰ 4.0 mm (
5
/32q)
C ‰ 7.0 mm to
‰ 9.4 mm
(
9
/32q to
3
/8q)
D Wall or pillar
E 5.5 mm to 7.5 mm
(
7
/32q to
5
/16q)
2 Fit the speaker securely onto the screw(s)
with the hole(s).
Use the measurements indicated below.
≥ Leave at least 20 mm (
25
/32q) of space above the
speaker and 10 mm (
13
/32q) on each side to
allow enough space for fitting the speaker.
CENTER
A 14 mm
(
9
/16q)
B 65 mm
(2
9
/16q)
C 175 mm
(6
29
/32q)
[BTT466] [BTT465] FRONT
Attach to a wall without the base and the stand.
≥ Before using the speaker cable, remove it from
the stand by pulling it out.
D 45 mm
(1
25
/
32
q
)
E 53 mm
(2
3
/
32
q
)
F 266 mm
(
10
1
/
2
q
)
≥ Reattaching the speaker cable to the stand
[BTT466] [BTT465] SURROUND
[BTT405] FRONT, SURROUND
G 42 mm
(1
21
/
32
q
)
H 45 mm
(1
25
/
32
q
)
Attaching to a wall
e.g., Surround speaker
DO NOT DO
≥ In this position, the
speaker will likely fall if
moved to the left or right.
≥ Move the speaker so
that the screw is in this
position.
Screwing positions on the
wall
Straighten the cable and run through the stand.
Pull out the cable through the hole.
160 mm (6
5
/
16
q
)
