Panasonic SC-BTT490 - Main Unit Overview; Main Unit Front Panel; Main Unit Rear Panel

Getting started
9
VQT3X49
1 Standby/on switch [Í/I] (> 18)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Open or close the disc tray (> 20)
3 Adjust the volume of the main unit
4 Disc tray
5 Stop (> 23)
6 Start play (> 23)
7 SD card slot (> 20)
8USB port (> 20)
9 Remote control signal sensor
Distance: Within approx. 7 m (23 ft.)
Angle: Approx. 20
o
up and down, 30o left and
right
10 Display
11 Dock for iPod/iPhone (> 26)
1 AC IN terminal (> 17)
* (For units with PX printed on the packaging)
The terminal is not polarized.
2 Speaker terminals (> 13)
3 Cooling fan
4 LAN port (> 17)
5 USB port (> 30)
6 HDMI AV OUT (ARC) terminal (> 14, 16)
7 HDMI1 IN (CABLE/SAT) terminal (> 16)
8 HDMI2 IN terminal (> 16)
9 DIGITAL AUDIO IN terminal (> 14, 15, 16)
10 FM radio antenna terminal (> 15)
11 AUX terminal (> 15)
12 VIDEO OUT terminal (> 15)
13 Digital transmitter dock for wireless system
14 (For units with PX printed on the packaging)
AC Voltage selector (> 17)

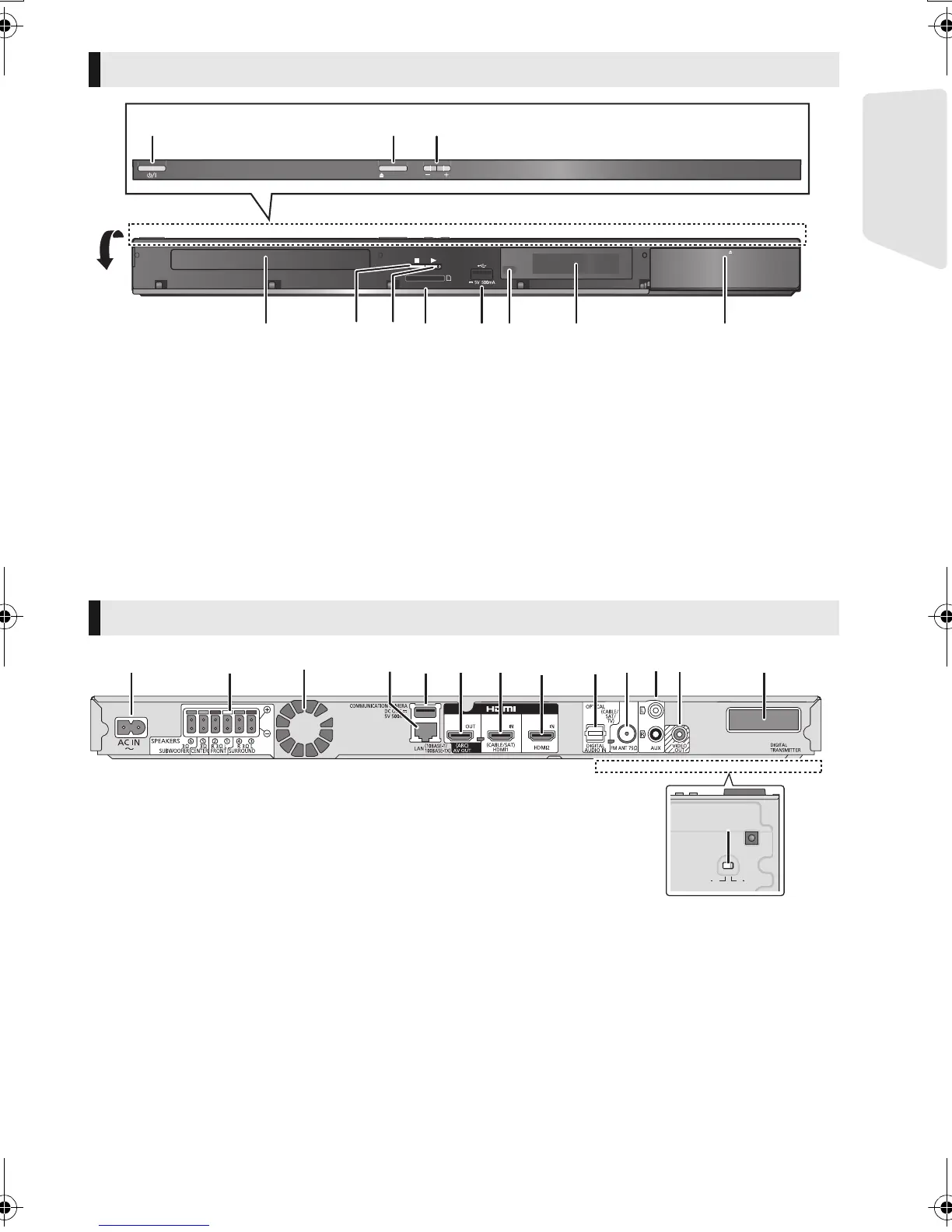

Main unit (Front)
VOL
OPEN/CLOSE
SD CARD
iPod
123
457611910
8
Main unit (Rear)
1* 2 3 4 5 6 7 1311 128 9 10
VOLT ADJ
110
127V
220
240V
VOLT ADJ
110
127V
220
240V
14
(on the bottom of the unit)
