Getting started
- 10 -
1 Standby/on switch (Í/I) (> 18)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Open or close the disc tray (> 20)
3 Adjust the volume of the main unit
4 Disc tray
5 Stop (> 23)
6 Start play (> 23)
7 SD card slot (> 20)
8 USB port (> 20, 26)
9 Remote control signal sensor
Distance: within approx. 7 m.
Angle: Approx. 20 e up and down, 30 e left and right
10 Display
11 Dock for iPod/iPhone (> 26)
1 AC IN terminal (> 17)
2 Speaker terminals (> 13)
3 Cooling fan
4 LAN port (> 16)
5 USB port (> 30)
6 HDMI AV OUT (ARC) terminal (> 14, 15)
7 HDMI1 IN (CABLE/SAT) terminal (> 15)
8 HDMI2 IN terminal (> 15)
9 DIGITAL AUDIO IN terminal (> 14, 15)
10 FM radio antenna terminal (> 15)
11 AUX terminal (> 14)
12 Digital transmitter dock for wireless system

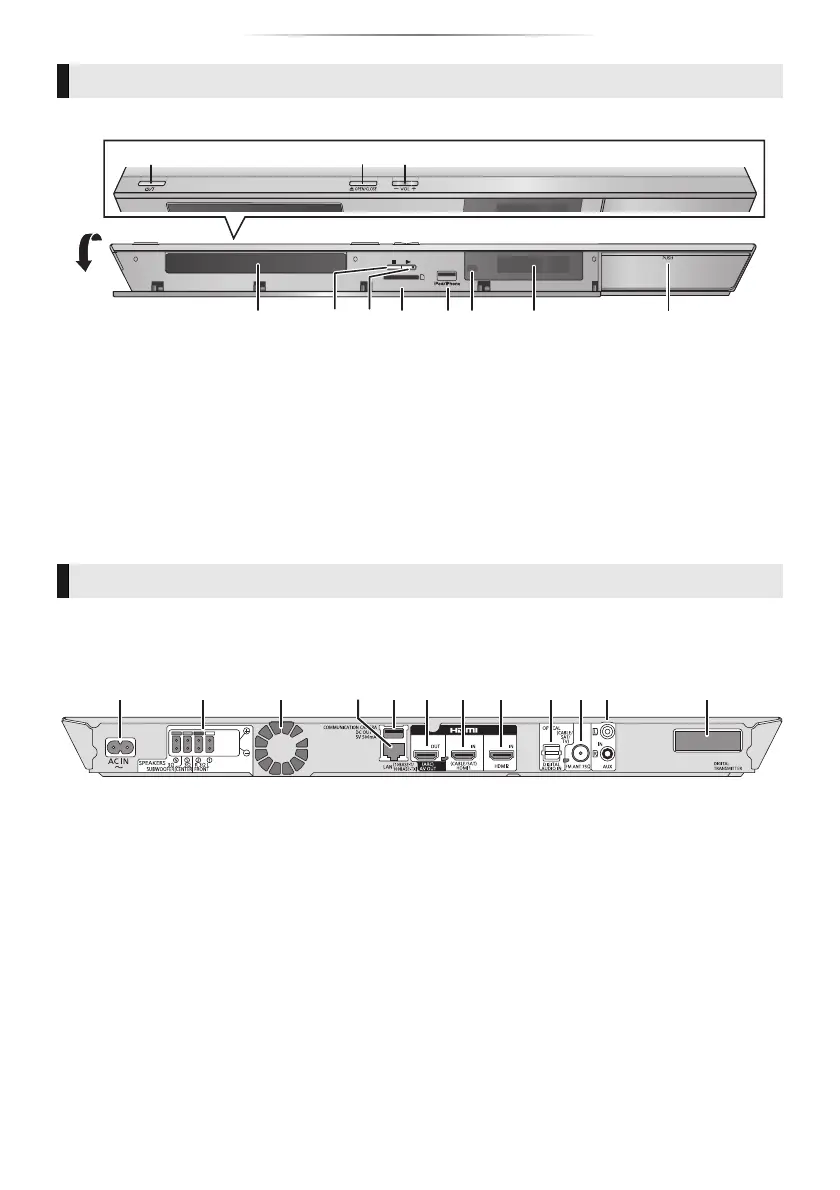

Main unit (Front)
SD CARD
457611910
123
8
Main unit (Rear)
1 2 3 4 5 6 7 12118 9 10
e.g., [BT T8 80]
