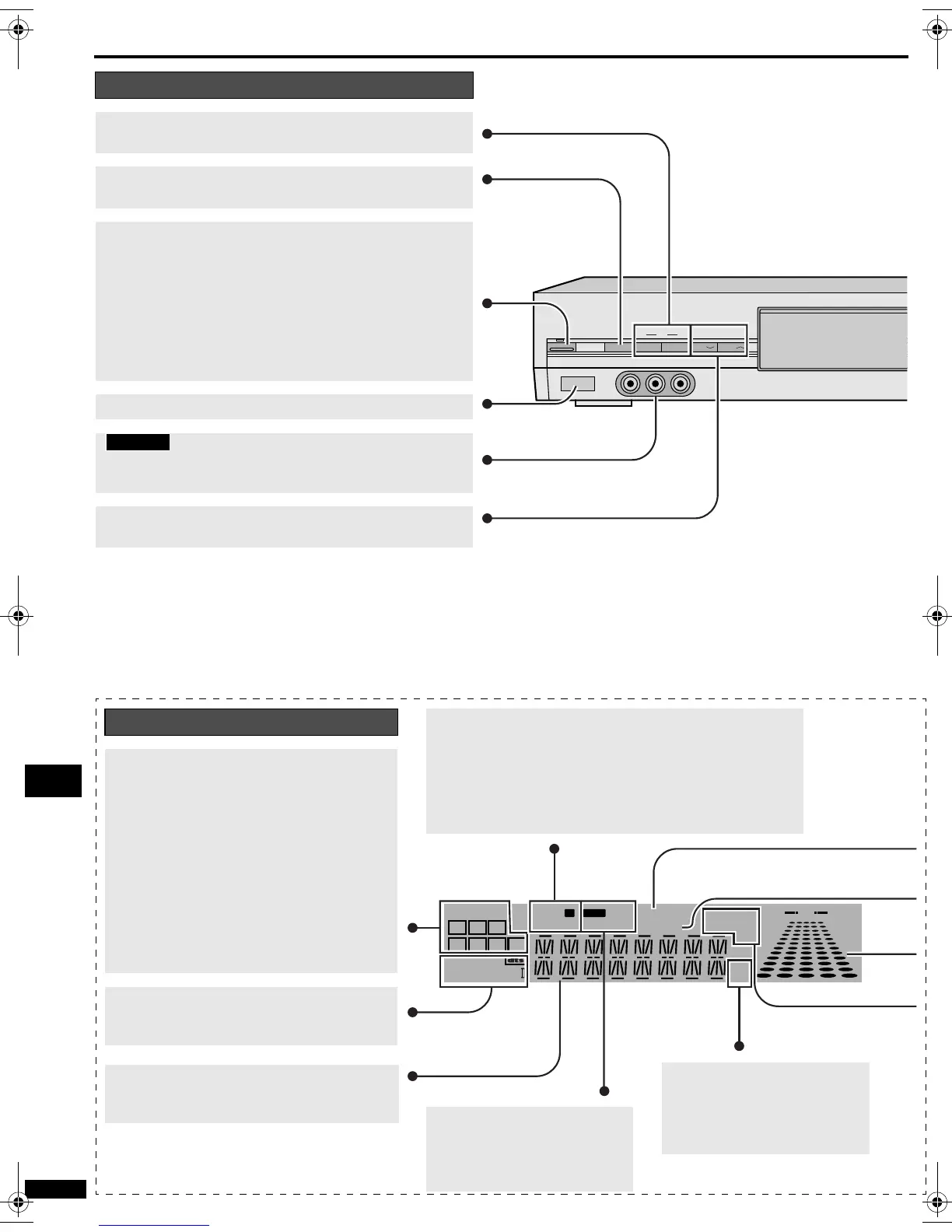

Main unit
[SFC, MUSIC, AV/MOVIE]
For selecting SFC modes.
[INPUT SELECTOR]
For selecting input.
Standby indicator [^]
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the
unit is turned on.
Standby/on switch [8]
Press to switch the unit from on to standby mode or vice
versa.
In standby mode, the unit is still consuming a small amount
of power.
Remote control signal sensor
[VCR 2]
Connect equipment like video cameras.
[TUNE2, TUNE1]
For tuning the radio and selecting preset stations.
Display
[DIGITAL INPUT]
Program format indicators
Show the channels contained in the digital
input signal.
They do not light when input is analog.
L: Front left channel
C: Center channel
R: Front right channel
LS: Surround left channel
S: If the surround channel is monaural
RS: Surround right channel
LFE (Low Frequency Effects): Deep-bass
effect
[%DIGITAL, dts, %PRO LOGIC II]
Light to indicate the source’s input signal and
decoding format used.
General display
Shows the input mode, radio frequency, and
other general information.
[TUNED, M, MONO, ST ]
Radio indicators
TUNED: A station is tuned.
M: Flashes or lights during presetting.
MONO: You have switched to monaural mode with [FM
MODE] to improve reception.
ST: A stereo FM broadcast is tuned.
[RDS, PS, PTY]
(For continental Europe and the
United Kingdom)
Shows the current RDS display
mode.
[kHz, MHz]
Frequency unit indicators
kHz: AM, or PCM sampling
frequency
MHz: FM
