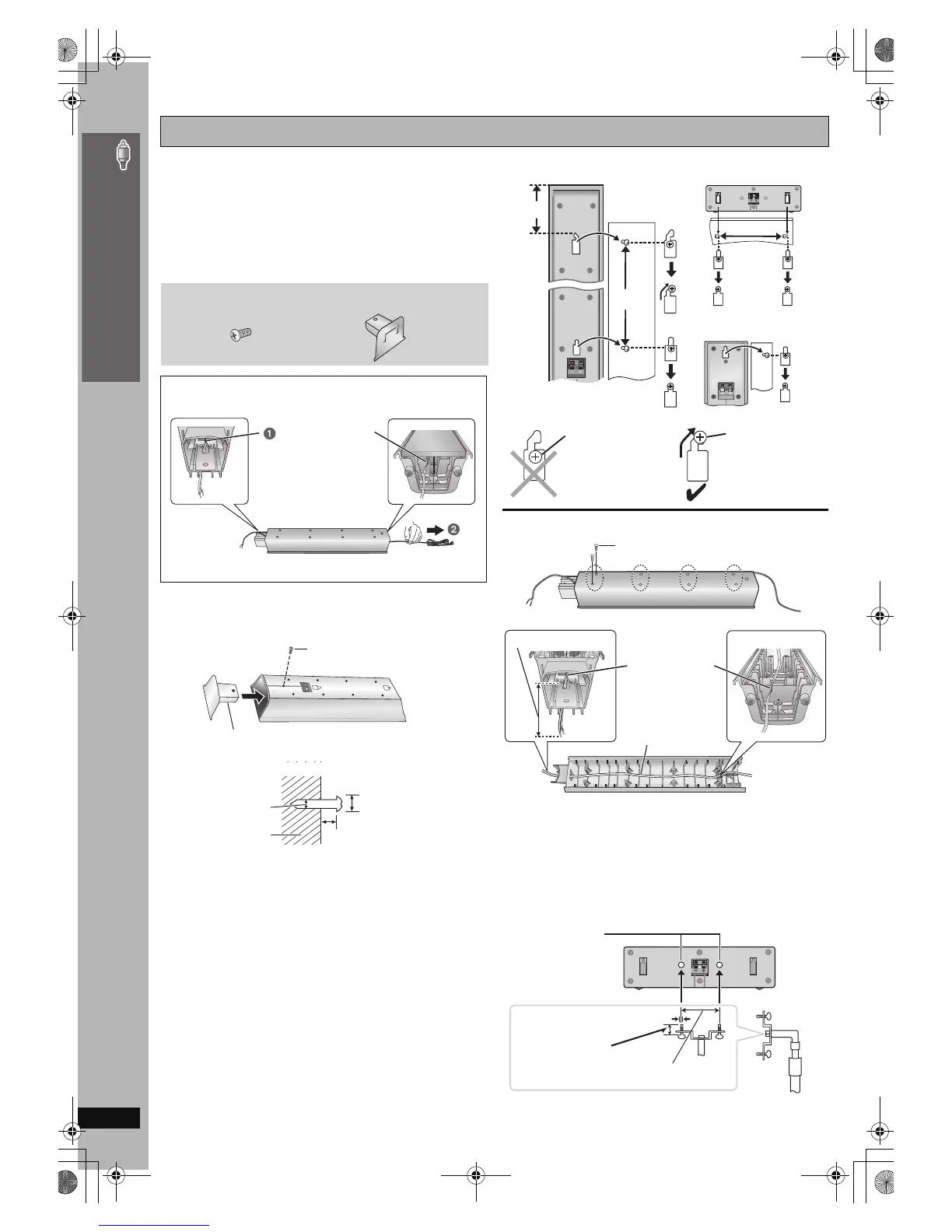

Simple Setup
Attaching to a wall
You can attach all of the speakers (except subwoofer) to a wall.
The wall or pillar on which the speakers are to be attached
should be capable of supporting over 10 kg per screw. Consult a
qualified building contractor when attaching the speakers to a
wall. Improper attachment may result in damage to the wall and
speakers.
When mounting the front speakers to a wall, we recommend
using a string (not included) to prevent it from falling.
1 Attach the cover plate to the front speaker.
2 Drive a screw (not included) into the wall.
3 Fit the speaker securely onto the screw(s) with the hole(s).
Reattaching the speaker cable to the stand
1 Remove the eight screws from the stand, and remove the speaker net.
2 Position the cable.
3 Attach the speaker net with the screws.
Fitting speaker stands (not included)
(Except front speakers)
Ensure the stands meet these conditions before purchasing them.
Note the diameter and length of the screws and the distance
between screws as shown in the diagram.
The stands must be able to support over 10 kg .
The stands must be stable even if the speakers are in a high position.
Speaker installation options
Preparation for front speakers
1 Remove the speaker cable from the stand.
2 Connect the cable ( page 5).
2 Cover plates2 Screws
Release the cable
from the groove.
1
2
Screw
Tighten securely.
Cover plate
7.5 to 9.5 mm
5.0 to 7.0 mm
Wall or pillar
4.0 mm
106 mm
200 mm
Center speaker
Surround speaker
340 mm
Front speaker
In this position, the
speaker will likely
fall if moved to the
left or right.
Move the speaker
so that the screw is
in this position.
e.g.
Screw
Press the cable
into the groove.
Approx.15 cm
Cable
Speaker stand
(not included)
Plate thickness plus
7mm to 10mm
e.g. Center speaker
5 mm, pitch 0.8 mm
Metal screw holes
For attaching to
speaker stands
60 mm
Assembling the front speakers
