Panasonic SC-HT895 User Manual

RQT8607
6

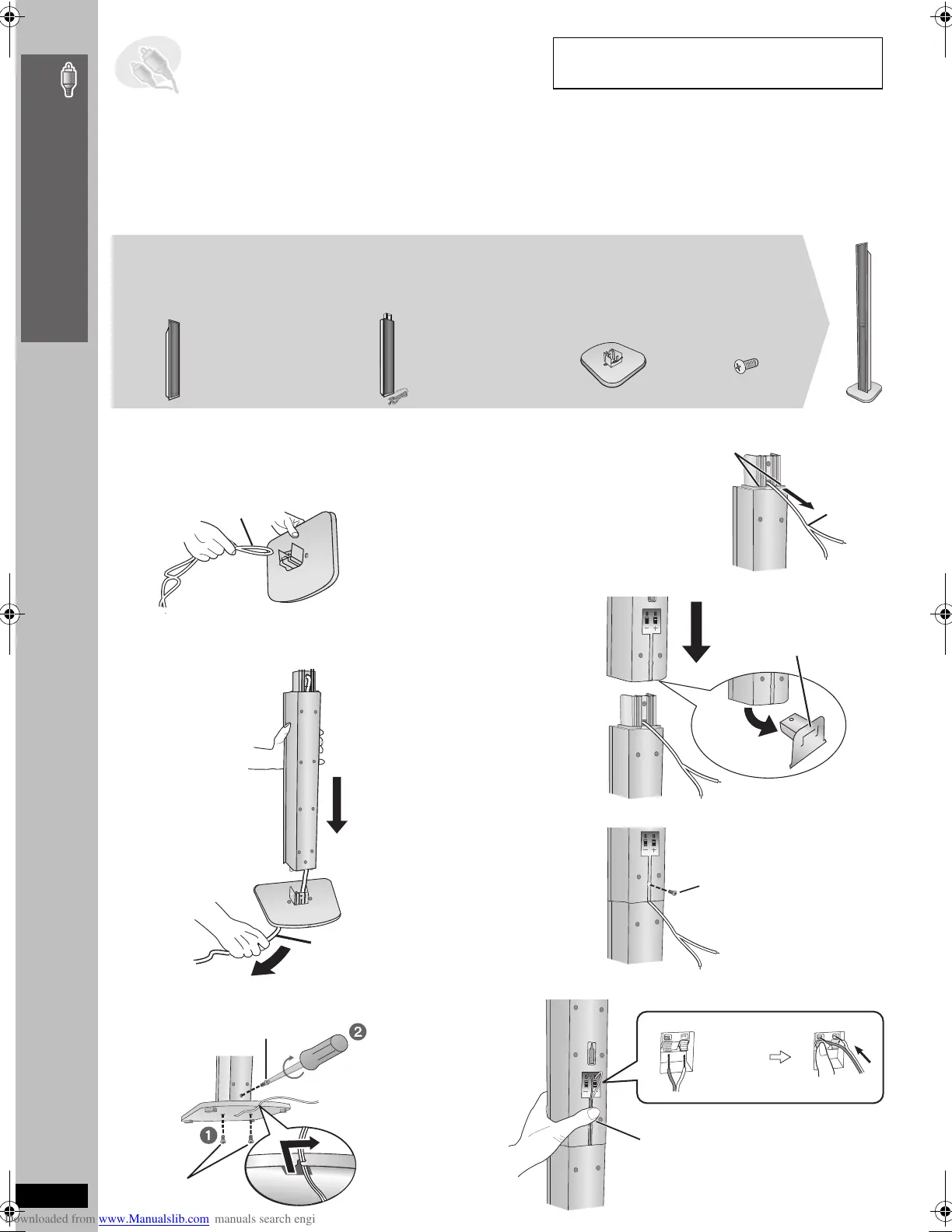

Simple Setup
\Southeast\Asia,\Thailand,[the\Middle\East,\South\Africa,\Saudi\Arabia\and\Kuwait\ Front and surround speakers
[Australia[and[N.Z.] Front speakers
Preparation
≥ To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
≥ For assembly, use a Phillips-head screwdriver.
≥ Make sure you have all the indicated components before starting assembly, setup, and connection.
≥ There is no difference between the right and left speakers and stands.
≥ For optional wall mount, refer to page 7.
1 Attach the stand to the base.
1 Thread the speaker cable through the base.
For quicker threading, loosely fold the cable in half (do not
crease), pass the folded portion through the hole, and then pull
the rest of the cable through the base.
2 Attach the stand to the base while gently pulling on the
end of the speaker cable.
2 Secure the stand to the base.
3 Attach the speaker to the stand.
1 Pull out the end of
the speaker cable
and position it
between the ridges.
2 Attach the speaker to the stand.
4 Secure the speaker to the stand.
5 Connect the speaker cable.
STEP1 Assembling the speakers
The supplied stands are specially designed for
attachment to Panasonic SB-FS540 front and surround
speakers. Use only as indicated in this setup.
4 Front and surround speakers
(with cover plate)
[Australia[and[N.Z.]
2 Front speakers
(with cover plate)
4 Bases
[Australia[and[N.Z.]
2 Bases
4 Stands
≥ 2 k stands with short cable: For front speakers
≥ 2 k stands with long cable: For surround speakers
[Australia[and[N.Z.]
2 Stands (with cable)
16 Screws
[Australia[and[N.Z.]
8 Screws
Base
Cable
Stand
Base
Cable
Pull gently.
Screw
Tighten securely.
Slide the speaker
cable into the groove.
Stand
Base
Screws
Tighten securely.
Cable
Ridges
Stand
Speaker
Stand
Cover plate
Remove before attaching
the speaker and keep for
wall-mount use (➜ page 7).
Speaker
Stand
Screw
Tighten securely.
Ensure the speaker cable is
centered in the groove.
_: White
`: Blue
Push!
Press the speaker cable
into the groove.
Insert the wire fully.
Assembling the speakers
HT895 En.book Page 6 Friday, April 21, 2006 4:17 PM
