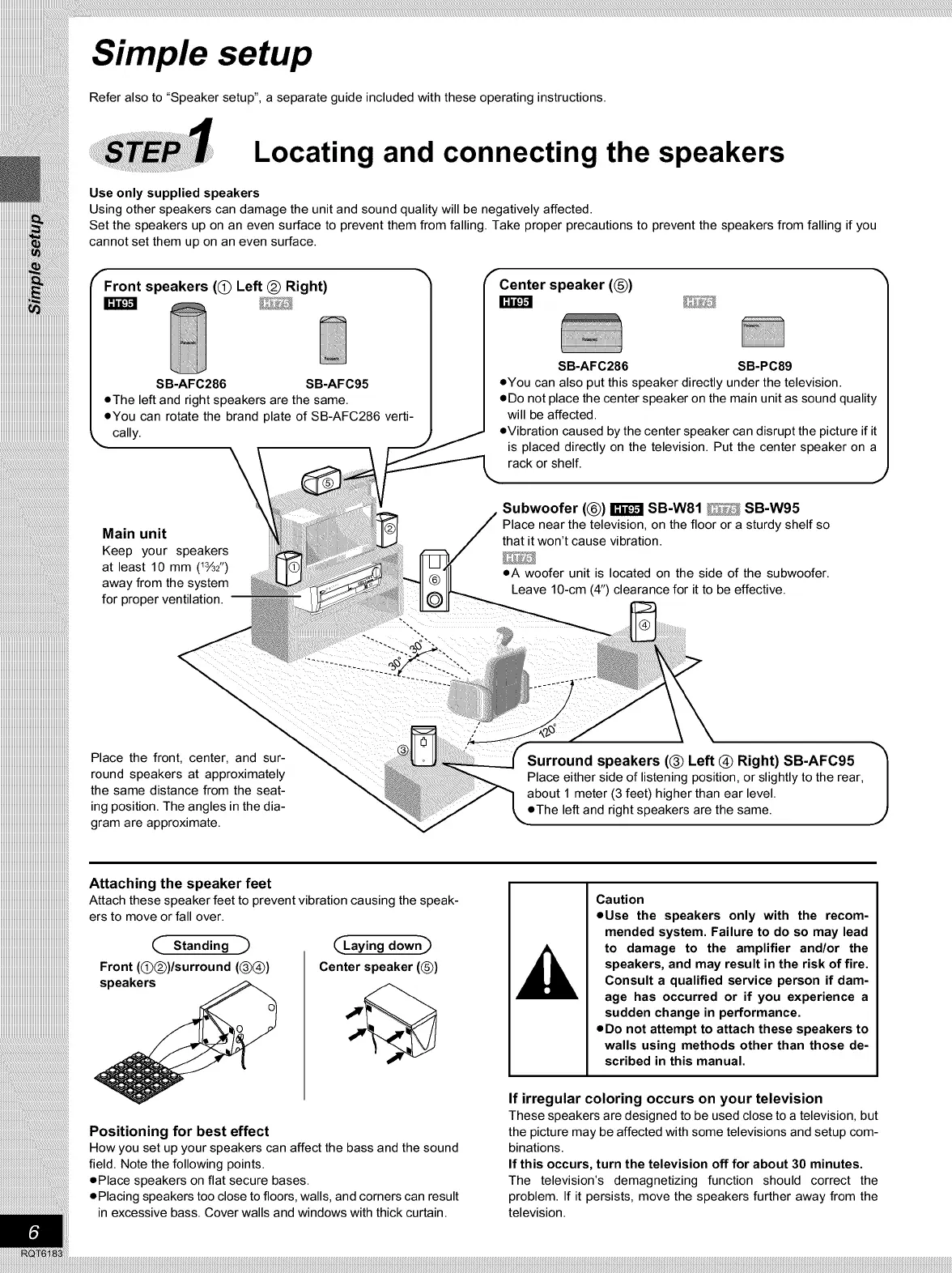

SB-AFC286 SB-AFC95
oThe left and right speakers are the same.
oYou can rotate the brand plate of SB-AFC286 verti-
cally.
SB-AFC286 SB-PC89
oYou can also put this speaker directly under the television.
oDo not place the center speaker on the main unit as sound quality
will be affected.
oVibration caused by the center speaker can disrupt the picture if it
is placed directly on the television. Put the center speaker on a
rack or shelf.
Main unit
Keep your speakers
at least 10 mm (l_j,)
away from the system
for proper ventilation.
Subwoofer ((_)) _ SB-W81 SB-W95
Place near the television, on the floor or a sturdy shelf so
that it won't cause vibration.
cA woofer unit is located on the side of the subwoofer.
Leave 10-cm (4") clearance for it to be effective.
Place the fron _ Surround speakers ((_) Left @ Right) SB-AFC95
round speakers at approximately _ _ "_
dlsta--. ,seat "_ __, _'_ Place either side of listening position, or slightly to the rear,
the
ing position.SameThe angles in the dia- ' about 1 meter (3 feet) higher than ear level.
,, oThe left and right speakers are the same.
gram are approximate. _ --
Attaching the speaker feet
Attach these speaker feet to prevent vibration causing the speak- Caution
ers to move orfall over. oUse the speakers only with the recom-
mended system. Failure to do so may lead
( _ _) _Laying down_ /I k to damage to the amplifier and/or the
Front ((_)@)/surround (_@) Center speaker (_) ,_ speakers, and may result in the risk of fire.
speakers Consult a qualified service person if dam-
_,_ age has occurred or if you experience a
sudden change in performance.
oDo not attempt to attach these speakers to
walls using methods other than those de-
scribed in this manual.
Positioning for best effect
How you set up your speakers can affect the bass and the sound
field. Note the following points.
oPlace speakers on flat secure bases.
oPlacing speakers too close to floors, walls, and corners can result
in excessive bass. Cover walls and windows with thick curtain.
If irregular coloring occurs on your television
These speakers are designed to be used close to a television, but
the picture may be affected with some televisions and setup com-
binations.
If this occurs, turn the television off for about 30 minutes.
The television's demagnetizing function should correct the
problem. If it persists, move the speakers further away from the
television.
