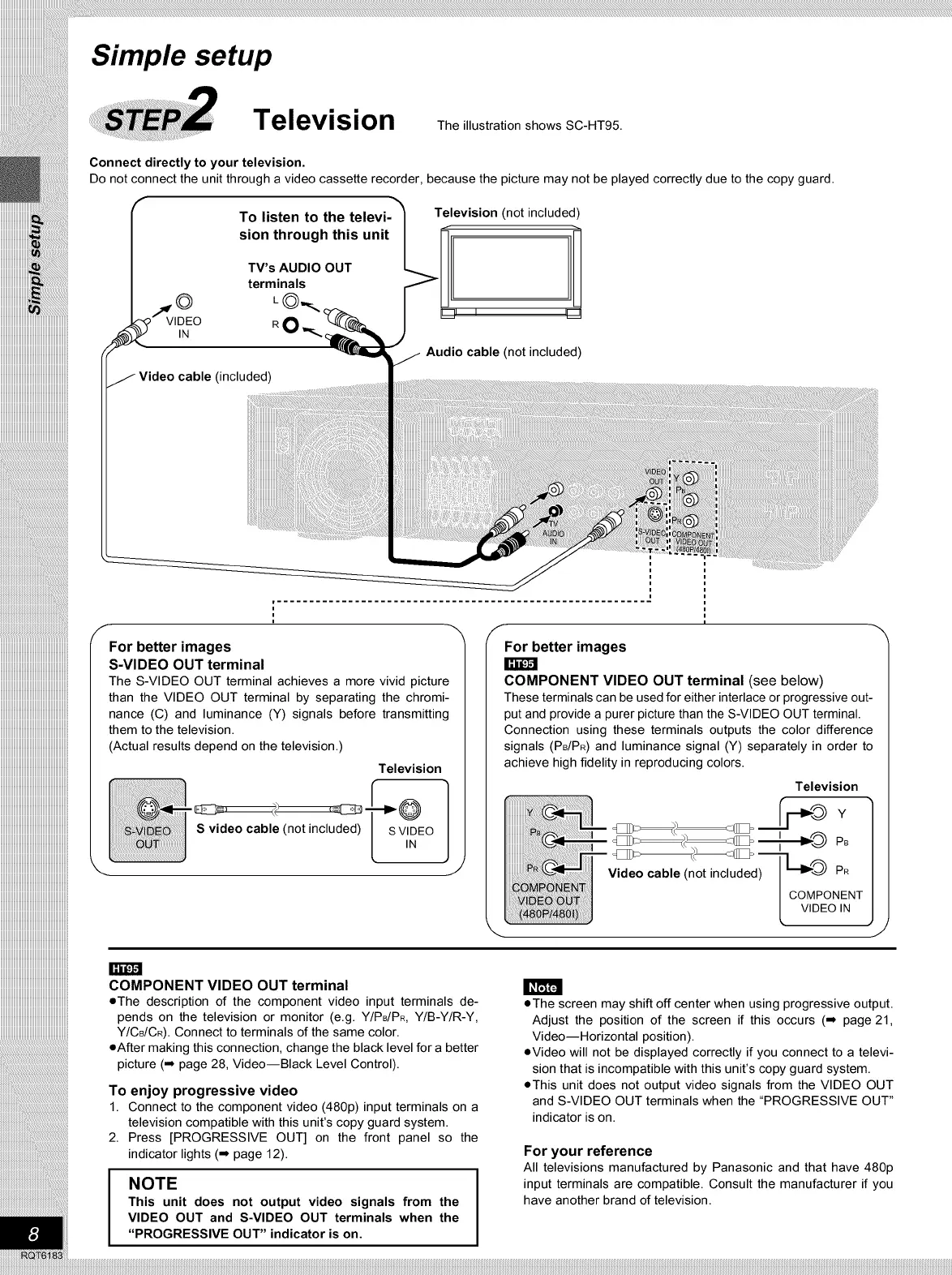

Simple setup
Television The illustration shows SC-HT95.
Connect directly to your television.
Do not connect the unit through a video cassette recorder, because the picture may not be played correctly due to the copy guard.
To listen to the televi- I
/
S1::: h::: g::_ 1: unit[
terminals
cable (included)
Television (not included)
Audio cable (not included)
1111_].1
i
i
For better images
S-VIDEO OUT terminal
The S-VIDEO OUT terminal achieves a more vivid picture
than the VIDEO OUT terminal by separating the chromi-
nance (C) and luminance (Y) signals before transmitting
them to the television.
(Actual results depend on the television.)
Television
S video cable (not included)
_D
SVIDEO
IN
J
For better images
COMPONENT VIDEO OUT terminal (see below)
These terminals can be used for either interlace or progressive out-
put and provide a purer picture than the S-VIDEO OUT terminal.
Connection using these terminals outputs the color difference
signals (PB/PR) and luminance signal (Y) separately in order to
achieve high fidelity in reproducing colors.
Television
_[_=_© ,__ Y
Video cable (not included) [--I_,-_ PR
COMPONENT
VIDEO IN
[_11#].1
COMPONENT VIDEO OUT terminal
oThe description of the component video input terminals de-
pends on the television or monitor (e.g. Y/PB/PR, Y/B-Y/R-Y,
Y/CB/CR). Connect to terminals of the same color.
oAfter making this connection, change the black level for a better
picture (-_ page 28, Video--Black Level Control).
To enjoy progressive video
1. Connect to the component video (480p) input terminals on a
television compatible with this unit's copy guard system.
2. Press [PROGRESSIVE OUT] on the front panel so the
indicator lights (-_ page 12).
NOTE
This unit does not output video signals from the
VIDEO OUT and S-VIDEO OUT terminals when the
"PROGRESSIVE OUT" indicator is on.
oThe screen may shift off center when using progressive output.
Adjust the position of the screen if this occurs (-_ page 21,
Video--Horizontal position).
oVideo will not be displayed correctly if you connect to a televi-
sion that is incompatible with this unit's copy guard system.
oThis unit does not output video signals from the VIDEO OUT
and S-VIDEO OUT terminals when the "PROGRESSIVE OUT"
indicator is on.
For your reference
All televisions manufactured by Panasonic and that have 480p
input terminals are compatible. Consult the manufacturer if you
have another brand of television.
