Indicators illumination

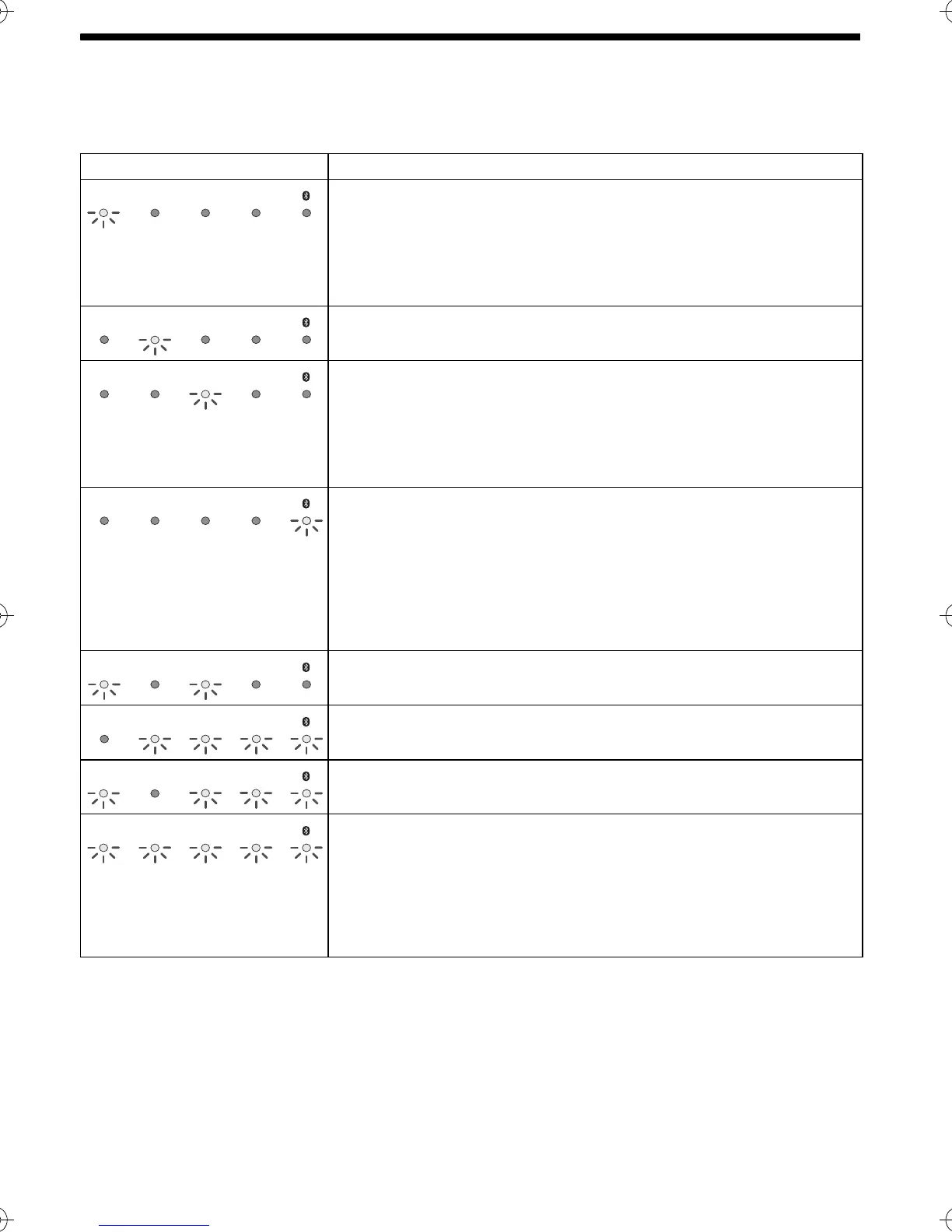

The indicators show the condition of this system. The indicator patterns illustrated below are shown
during normal operational conditions. They do not refer to the indications of a problem.
Indicators Description
The indicator blinks for 5 seconds.
• When the setting is on
(“Auto power down”, “Bluetooth
®
standby”, “Volume limitation”)
(
~13)
• When the audio format is Dolby Digital. (~ 13)
• When the dual audio is main. (~12)
The indicator blinks for 5 seconds.
• When the audio format is DTS
®
. (~13)
The indicator blinks for 5 seconds.
• When the setting is off
(“Auto power down”, “Bluetooth
®
standby”, “Volume limitation”)
(
~13)
• When the audio format is PCM. (~13)
• When the dual audio is secondary. (~12)
The indicator blinks quickly.
• When the main unit is ready for pairing. (~11)
The indicator blinks slowly.
• When the main unit is waiting to connect. (~11)
The indicator lights on.
• When the main unit is connected to a Bluetooth
®
device.
(
~11)
The indicator blinks for 5 seconds.
• When the dual audio is main+secondary. (~12)
The indicator blinks for 10 seconds.
• When the remote control is set to code 2. (~16)
The indicator blinks for 10 seconds.
• When the remote control is set to code 1. (~16)
The indicators blink until the system restarts.
• When the main unit is reset. (~16)
The indicators blink continuously.
• When the sound is muted. (~12)
The indicators blink 10 times.
• When active subwoofer is failed to connect. (~ 16)
MUSIC CINEMA HDMI(ARC) OPTICAL
MUSIC CINEMA HDMI(ARC) OPTICAL
MUSIC CINEMA HDMI(ARC) OPTICAL
MUSIC CINEMA HDMI(ARC) OPTICAL
MUSIC CINEMA HDMI(ARC) OPTICAL
MUSIC CINEMA HDMI(ARC) OPTICAL
MUSIC CINEMA HDMI(ARC) OPTICAL
MUSIC CINEMA HDMI(ARC) OPTICAL
