Making the connections
Switch off all equipment before connection.
Components and cables are sold separately.
Connect the AC mains lead only after all the other connections have been made.

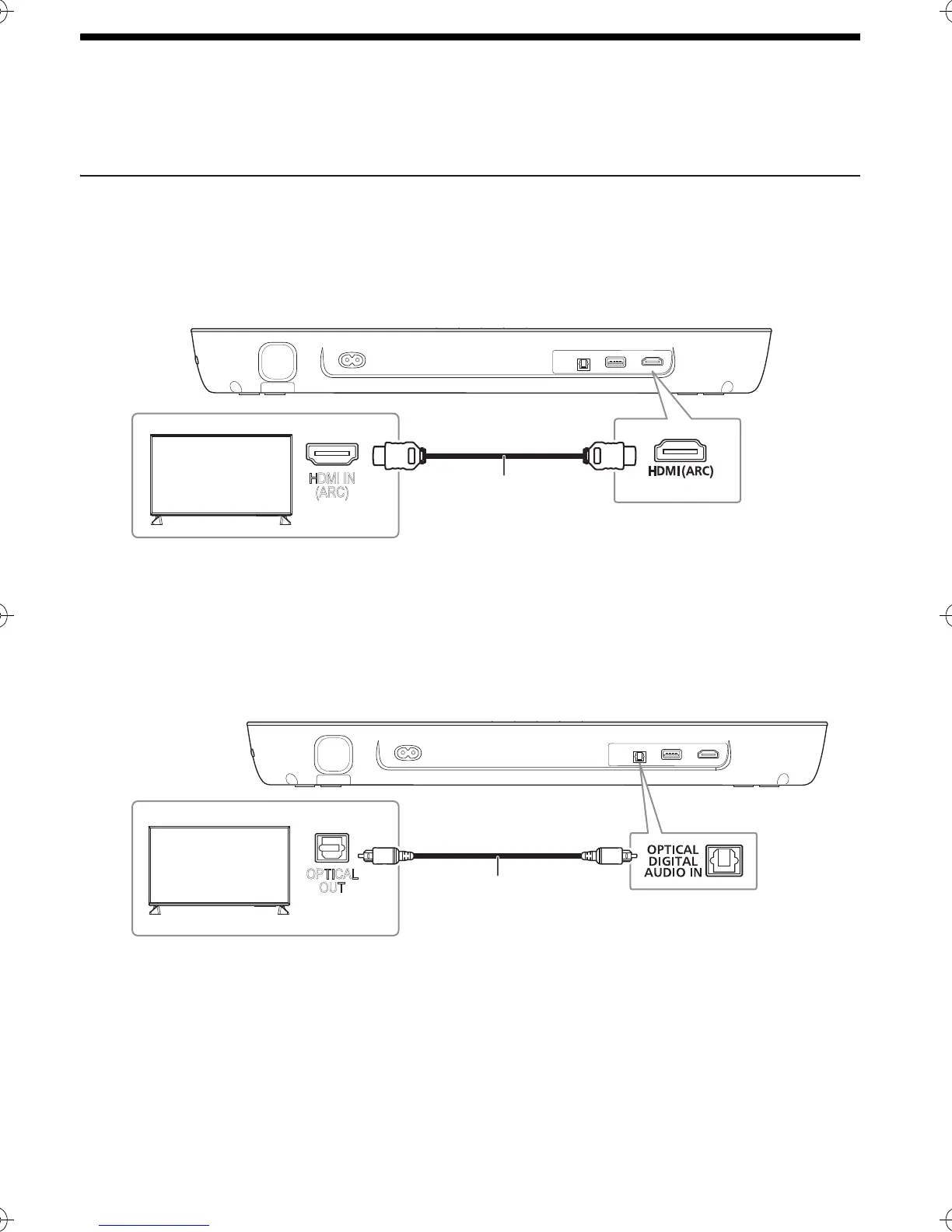

Connecting the TV
█ Connect an ARC compatible TV
Connect to the ARC compatible terminal of the TV with an ARC compatible high speed HDMI cable.
ARC (Audio Return Channel)
ARC is an HDMI function that lets you enjoy both sound and TV pictures with one HDMI cable, the optical
digital audio cable that is usually required in order to listen to sound from a TV is no longer required.
█ Connect a non-ARC compatible TV
When connecting the optical digital audio cable, observe the orientation and insert the tip correctly into
the terminal.
HDMI IN
(ARC)
TV
HDMI cable
OPTICAL
OUT
TV
Optical digital audio cable
TQBJ2086_en.fm Page 9 Wednesday, December 27, 2017 2:30 PM
