Place the infrared emitter in sight of the TV’s remote control signal
sensor.
≥ For the location of the TV’s remote control signal sensor, refer to the operating instructions for the TV.
Aim the TV’s remote control at this system’s remote control sensor and
operate the TV.
≥ For the location of this system’s remote control signal sensor, refer to page 8.
≥ Make sure to clean the surface, where the adhesive tape is to be attached.
≥ If you peel off the adhesive tape, the surface may become damaged and exposed adhesive may remain. Once you have
confirmed the TV is operating correctly, secure it by attaching the adhesive tape.
≥ The supplied IR Blaster is only compatible with Panasonic TVs.

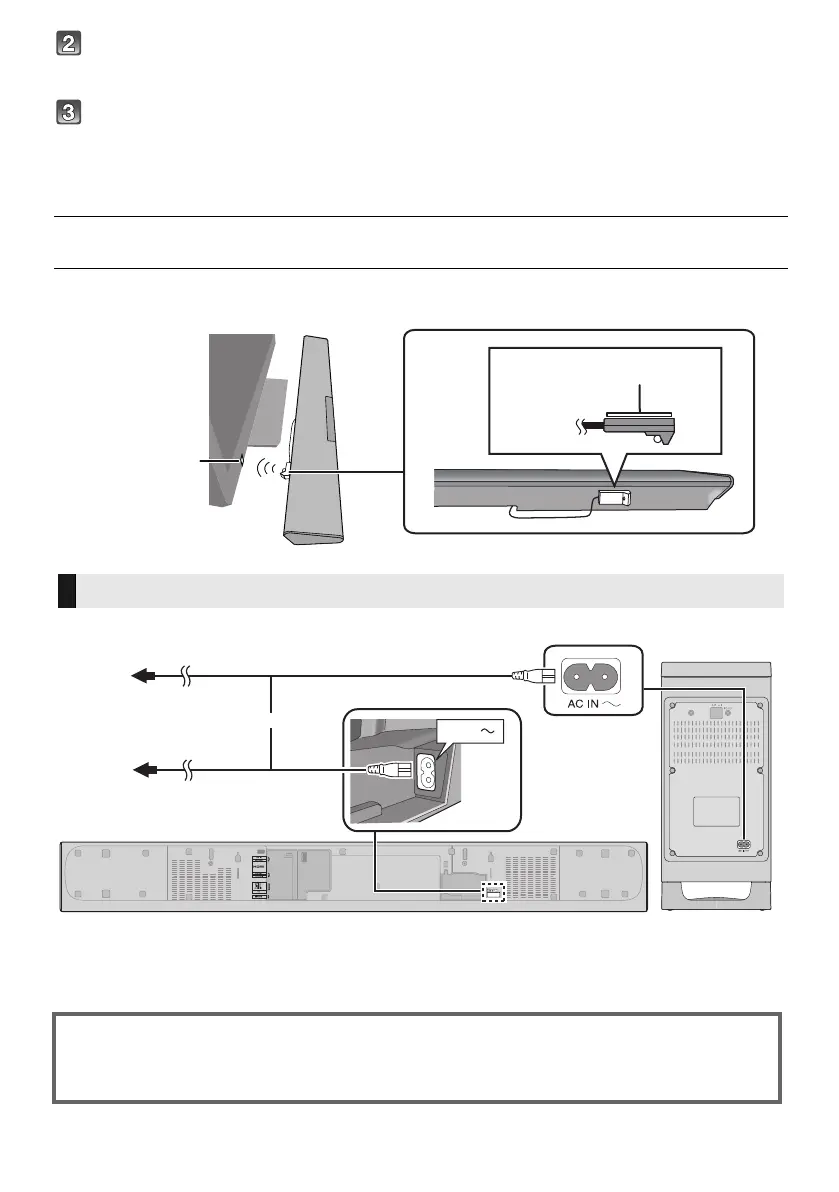

∫ Placement example
On the rear of the main unit:
≥ Connect only after all other connections are completed.
A To a household mains socket
B AC mains lead (supplied)
≥
This system consumes a small amount of AC power (
>
30) even when it is turned off. In the interest of power
conservation, if you will not be using this system for a long time, unplug it from the household mains socket.
AC mains lead connection
TV remote control
signal sensor
Adhesive tape (supplied)
Saving energy
The main unit is designed to conserve its power consumption and save energy.
≥
The main unit will automatically switch to standby mode when no signal is input and no operation is
performed for approx. 20 minutes. Refer to page 24, “AUTO POWER DOWN” to turn this function off.
