Panasonic SC-HTB485 User Manual

8
RQT0A04

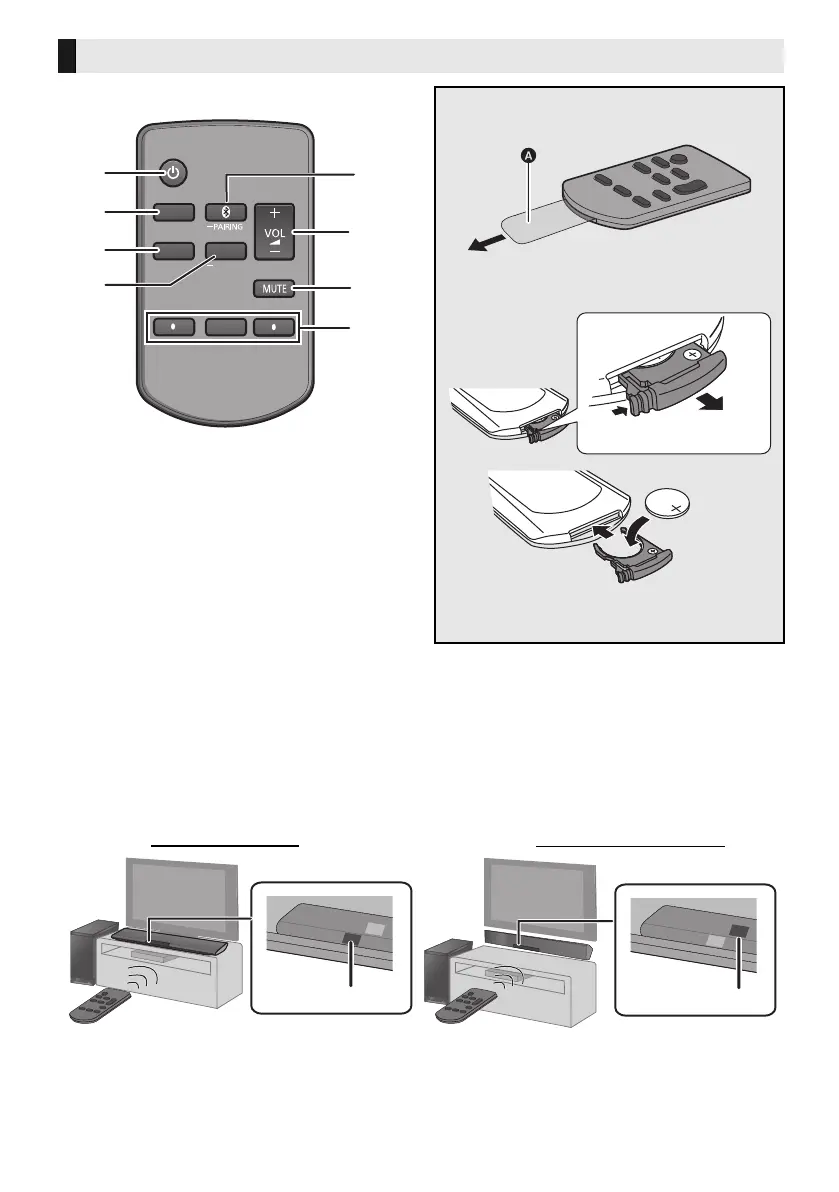

1 Turn the main unit on or off (> 21)
2 Select the input source (> 21)
“TV” --# “BD/DVD” --# “BLUETOOTH”
^--------------------------------------------------------}
3 Select the setup menu (> 24)
4 Select the sound menu (> 22)
5 Select the Bluetooth
®
device as the source
(> 21)
6 Adjust the volume of this system (> 21)
7 Mute the sound (> 21)
8 Select and confirm the option
∫ About remote control signal sensor
The remote control signal sensor is located on the main unit.
≥Use the remote control within the correct operation range.
Distance: Within approx. 7 m directly in front
Angle: Approx. 30
o
left and right
B Remote control signal sensor for table top layout
C Remote control signal sensor for wall mounting layout
Remote control
SOUND
MUSIC
1
5
6
7
8
2
INPUT
SETUP


OK
3
4
∫ Before using for the first time
Remove the insulation sheet A.
∫ To replace a button-type battery
Battery type: CR2025 (Lithium battery)
≥ Set the button-type battery with its (i) mark
facing upward.




For table top layout
For wall mounting layout
