RQT9922
17

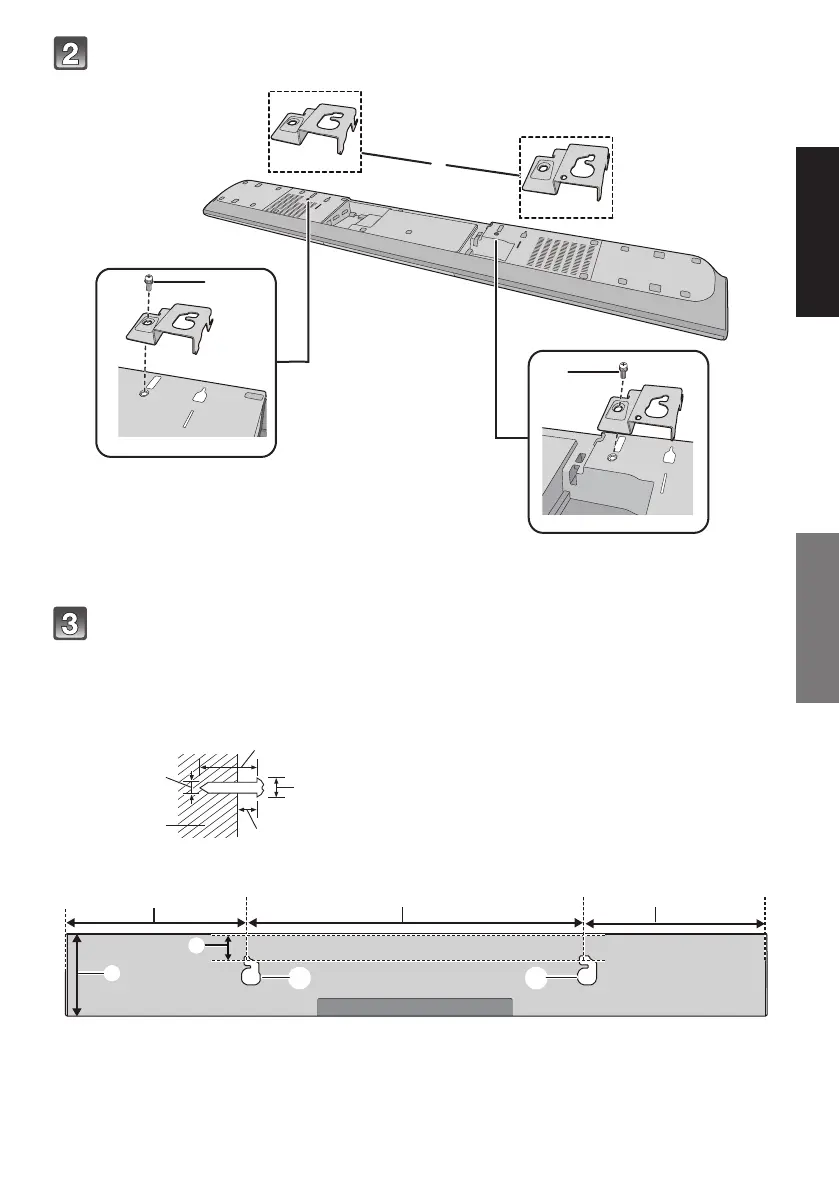

Attach the wall mount brackets to the main unit.
A Wall mount bracket (supplied)
B Screw (supplied)
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 100 mm (3
15
/16q) of space above of the main unit to allow enough space for fitting the main unit.
≥ Position the main unit with at least 50 mm (2q) of free space to its right. If not, it may not be possible to access the buttons.
≥ Be sure to use a level to insure that both mounting holes are level to each other.
Front view (semi-transparent image)
C At least 30 mm (1
3
/16q)
D ‰4.0 mm (
5
/32q)
E ‰7.0 mm to ‰9.4 mm (
9
/32q to
3
/8q)
F Wall or pillar
G 1.6 mm to 2.5 mm (
1
/16q to
3
/32q)
H 400 mm (15
3
/4q) I 275 mm (10
13
/16q) J 275 mm (10
13
/16q)
K 27 mm (1
1
/16q) L 110 mm (4
11
/32q) M Wall mounting hole
SC-HTB580P_RQT9922-Y.book 17 ページ ２０１３年１２月１９日 木曜日 午前１１時０分
