Precautions
Step 3 Connections
≥Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC power supply cord until all other connections are completed.

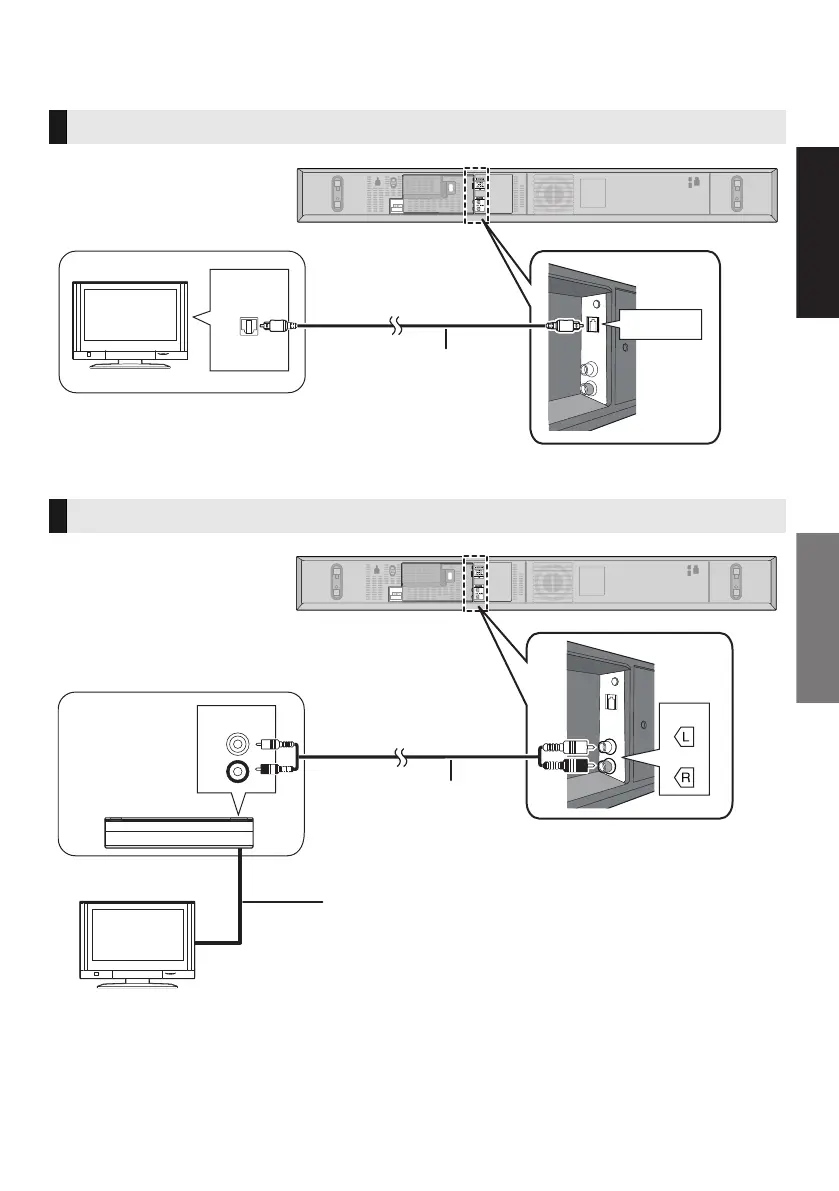

Connection with the TV
A Optical digital audio cable
≥ When you use the optical digital audio cable, insert the tip correctly into the terminal.
Connection with other device
B Audio cable

OPTICAL
OUT
OPTICAL DIGITAL
AUDIO IN (TV)

L
R
AUDIO OUT
AUDIO IN
BD/DVD
e.g., Set top box
Refer to the operating instructions of the
respective devices for the optimal connection.
