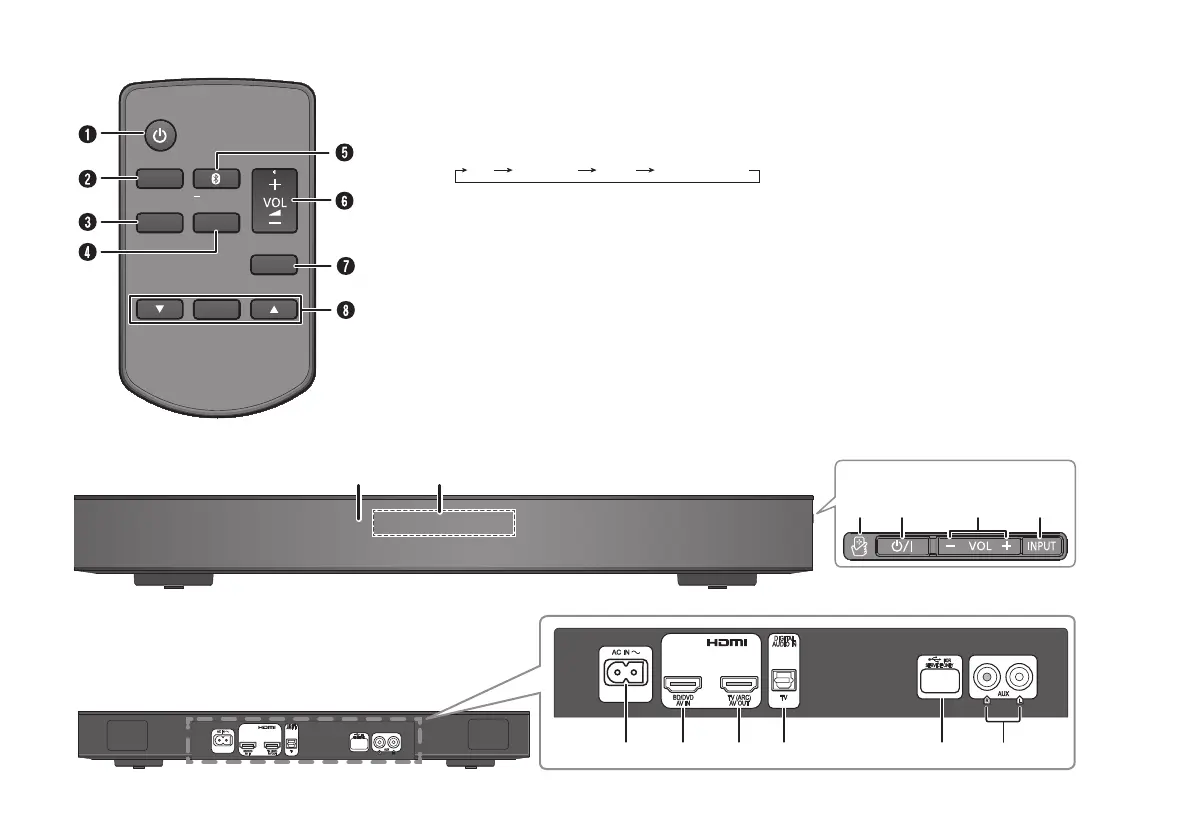

Overview of controls
MUTE
SETUP
INPUT
SOUND
OK
PAIRING
IJ
BFAK
Front panel
Side view
L
M
NO P Q
Rear panel
A Standby/on switch [`], [1]
Press to turn the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a
small amount of power.
B Select input source
C View setup menu
D View sound menu
E Select Bluetooth
®
mode
Start Bluetooth
®
pairing mode
F Adjust the volume of the system
G Mute the sound of the system
To cancel, press the button again.
“MUTE” is also canceled when you adjust the volume
or when you turn off the system.
H Select and confirm the option
I Remote control sensor
Distance: Within approximately 7 m (23 ft)
Angle: Approximately 20° up and down, 30° left and
right
J Display panel
K NFC touch area
L AC IN terminal
M HDMI IN terminal (BD/DVD)
N HDMI OUT terminal (ARC compatible)
O DIGITAL AUDIO IN (TV) terminal
P USB port (for service use only)
Q AUX IN terminal
