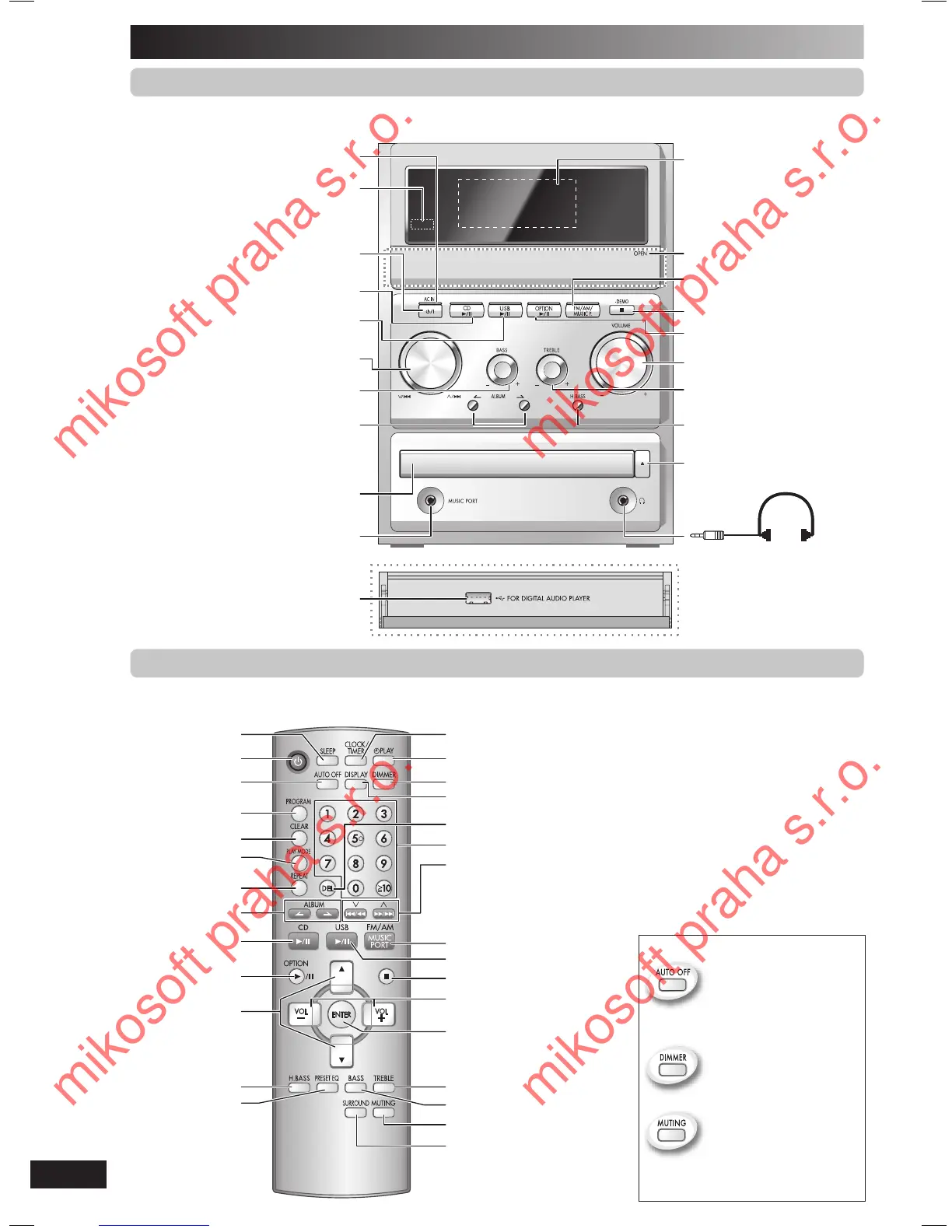

Main unit
Main unit
Refer to the numbers in parentheses for page reference.
6 Option play/pause (13)
Disc tray (7)
7 Volume control
Disc tray open/close (7)
Track skip, tune/preset channel
selections, time adjustment
Remote control sensor
Stop/Demo (5, 7, 8, 12, 13)
5 FM/AM radio, music
port selection (9, 13)
Music port jack (13)
Display panel
1 Standby/on switch (y/l) (7, 11)
Press to switch the unit from on
to standby mode or vice versa.
In standby mode, the unit is still
consuming a small
amount of power.
3 USB play/pause (12)
Bass adjustment (11)
Treble adjustment (11)
2 Disc play/pause (7, 8)
8 H.BASS selection (11)
4 Album selection (7, 8, 12)
USB jack cover open (12)
Headphone jack (
l
)
Avoid listening for
prolonged periods of time
to prevent hearing damage.
Plug type: 3.5 mm stereo
(not included)
AC supply indicator (AC IN)
This indicator lights when the unit is
connected to the AC mains supply.
USB jack (12)
Remote control
Remote control
Buttons such as 1 function the same as the controls on the main unit.
Overview of controls
Clock/Timer (10, 11)
Play timer (11)
Numeric (7, 8, 9, 12)
Delete (8)
Surround (11)
Program (8, 9)
Clear (8)
Play mode (7, 9)
2
Preset EQ (11)
Sleep timer (10)
Treble (11)
Track skip/search, tune/preset
channel selections, time
adjustment (7 to 13)
Repeat (8)
6
Bass/Treble
adjustment (11)
8
Dimmer
Display (7, 9)
5
3
Stop (7, 8, 12, 13)
7
Bass (11)
Auto off
4
Enter (8, 13)
1
Muting
This function allows you to
turn off the unit in disc or
USB mode only after left
unused for 10 minutes.
The setting is maintained
even if the unit is turned off.
Dims the display panel.
Mutes the sound.
• Press the button to activate.
• Press again to cancel.
