Preparation
Before using
1

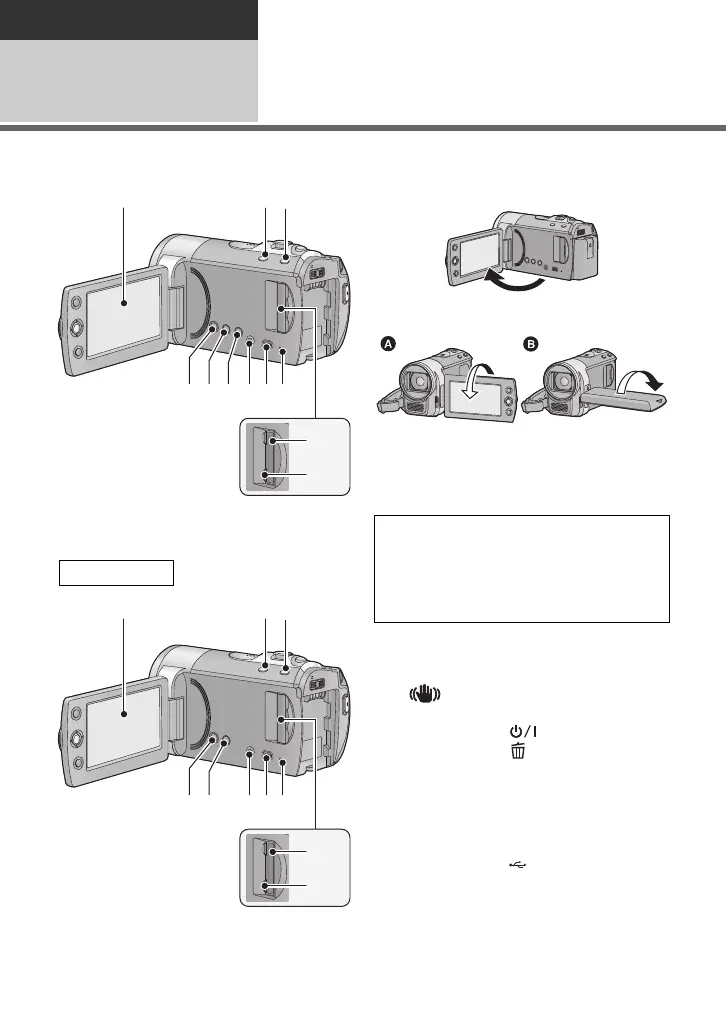

Parts identification and
handling
1 LCD monitor
≥ Pull the LCD monitor out in the direction of
the arrow with your fingers.
≥ It can open up to 90o.
≥ It can rotate up to 180o A towards the lens
or 90o B towards the opposite direction.
≥ The brightness and colour level of the
LCD monitor can be adjusted.
2 Intelligent auto/Manual button
[iA/MANUAL] (l 21)
3 Optical image stabilizer button
[ , O.I.S.] (SDR-S50/SDR-T50/
SDR-H85) (l 25)
4 Power button [ ] (l 17)
5 Delete button [ ] (l 28)
6 Long recording button [LONG REC.]
7 Audio-video output terminal [A/V]
(l 30)
≥ Use the AV cable (only the supplied
cable).
8 USB terminal [ ]
9 Access lamp [ACCESS]
(l 16)
10 SD card slot (l 16)
11 SD card cover [SD CARD] (l 16)
1 23
456789
10
11
1 2
45
6
789
10
11
SDR-S45 only
Due to limitations in LCD production
technology, there may be some tiny bright
or dark spots on the LCD monitor screen.
However, this is not a malfunction and
does not affect the recorded picture.
