8
Setup
8
RQTX0127
ENGLISH
Setup
∫ Wireless system
Preparation
If the surround speaker cables (with a blue connector and a grey connector) have already been connected, disconnect
the surround speaker cables from your home theater unit.
Connections
∫ AC mains lead
AC IN
SPEAKERS
ENCEINTES
LS / RB LB / RS
SURROUND (3 – 6 )
AMBIOPHONIQUES
SURR
L
SIDE
R
SIDE
I/D SET
SURR
L
SIDE
R
SIDE
SURR
L
SIDE
R
SIDE
Surround
selector

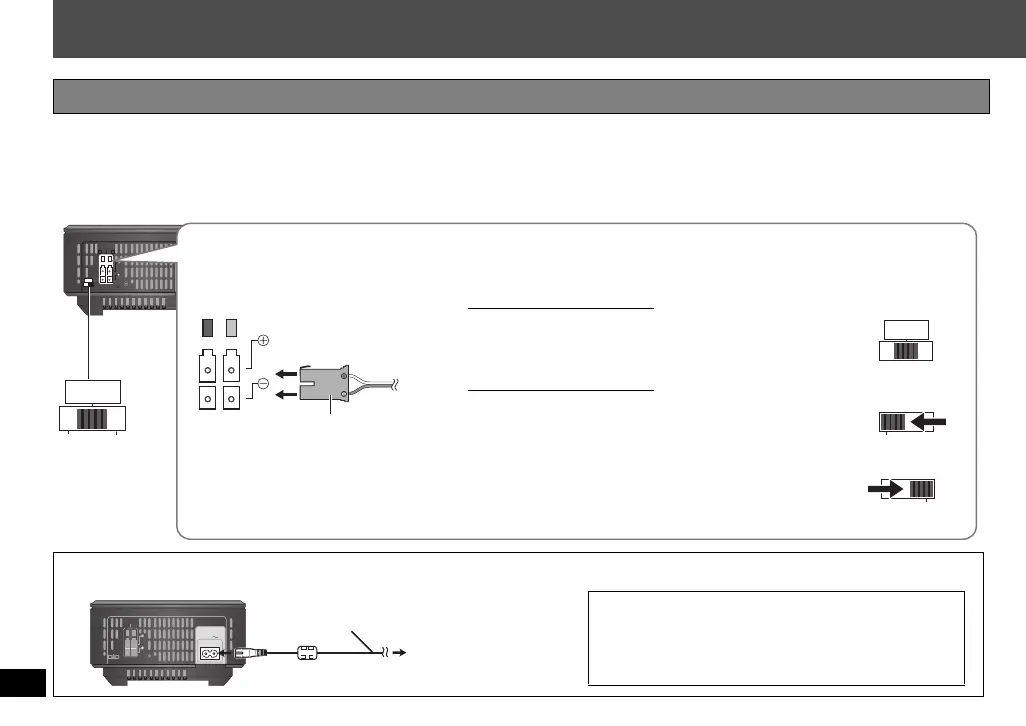

Connecting the speakers to the wireless system
Connect to terminals of the same colour.
Insert fully.
Speaker cable
For 5.1ch connection
SURROUND (L): Blue
SURROUND (R): Grey
For 7.1ch connection
SURROUND (L): Blue
SURROUND BACK (L): Grey
SURROUND (R): Grey
SURROUND BACK (R): Blue
Selector setting for the
left and right speakers
Selector setting for the
left speakers
Selector setting for the
right speakers
AC IN
To household
mains socket
AC mains lead
[For[the[United[Kingdom]
BE SURE TO READ THE CAUTION FOR
THE AC MAINS LEAD ON PAGE 3 BEFORE
CONNECTION.
SH-FX67_RQTX0127_En_181107.fm Page 8 Sunday, November 18, 2007 11:04 AM
