7
Setup
7
RQTX1131

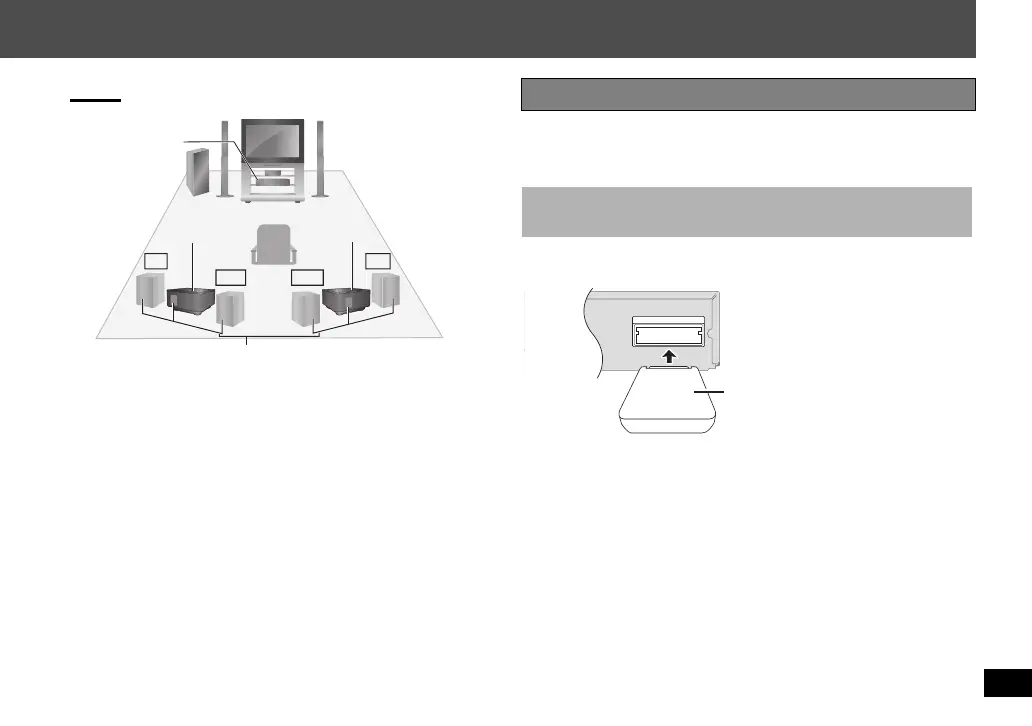

e.g. 7.1ch (Using two units of the wireless system)
This placement offers 7.1-channel playback. Your home theater
unit must be capable of 7.1-channel playback.
LS: Surround (left), RS: Surround (right)
≥Place on the side of the seating position.
LB
§
: Surround back (left), RB
§
: Surround back (right)
≥Place behind the seating position, about 1 m higher than ear
level.
§ LB or SBL RB or SBR
∫ Digital transmitter
Refer also to the operating instructions for your home
theater unit.
(Continued on next page)
Surround speaker cables (included)
Surround speakers and surround back speakers are not
included.
Wireless system
Home theater unit
(with the digital
transmitter)
Seating position
Wireless system
Connections
Do not insert or remove while the home theater unit
is on.
Digital transmitter (included)
Insert fully until you hear a
click.
e.g.
Rear of the home theater
unit
SH-FX71_RQTX1131-B_En.book Page 7 Thursday, January 14, 2010 5:18 PM
