6 DISASSEMBLING

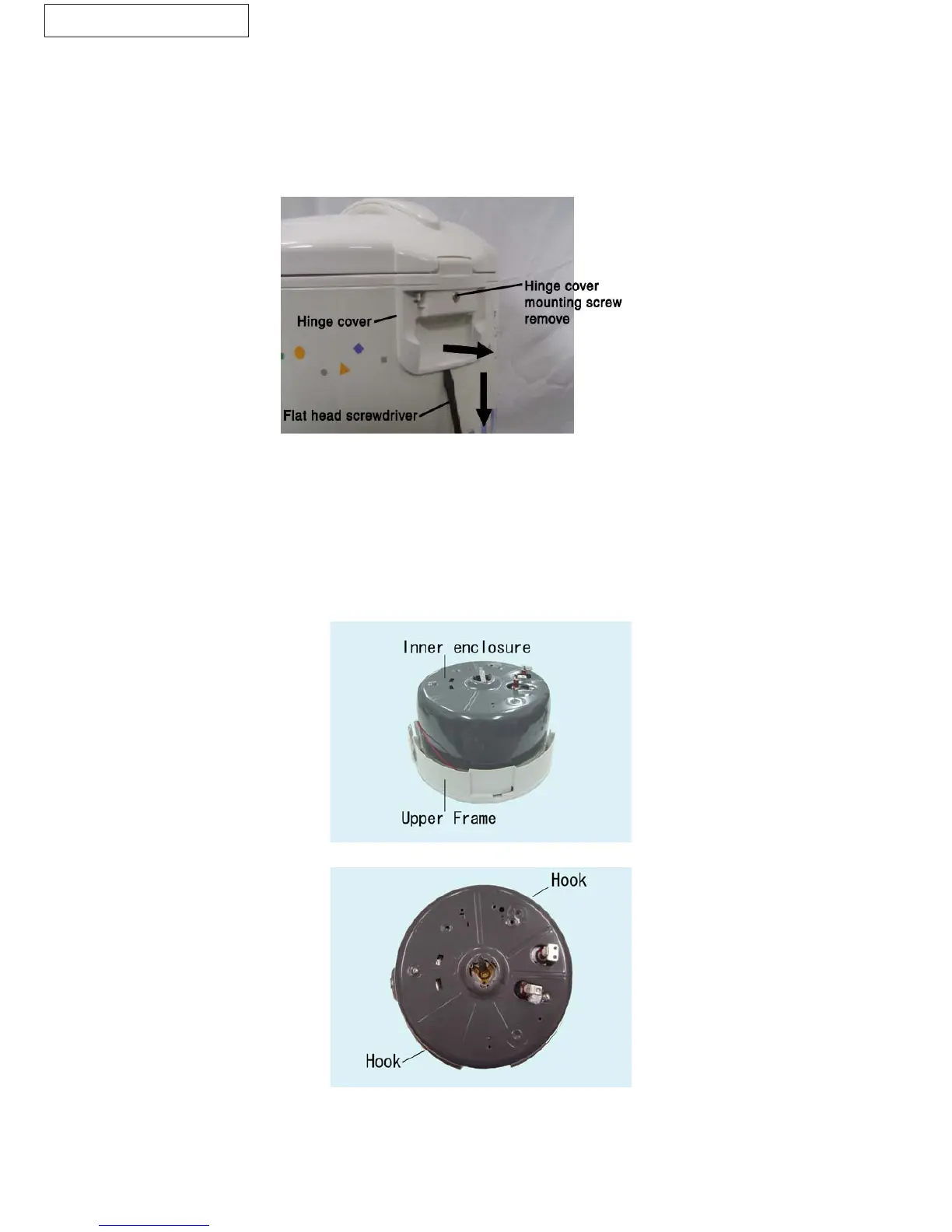

6.1 Hinge cover removal
1. Remove the dew collector.
2. Remove the hinge cover mounting screws.
3. As show in the figure, insert a narrow flat head screw driver from just below and pry off the hinge cover.
6.2 Inner enclosure and upper frame removal
1. As show in the figure, pry up three fastening hooks. Fixing the upper frame, turn the inner enclosure in the
arrow direction.
2. The upper frame will be seperated from the inner enclosure and the upper frame.
Note When assembling, refer to the illustration without mistaking the position relation ship
between the innerenclosure and the upper frame.
