Section 4 – MENU SETUP
26

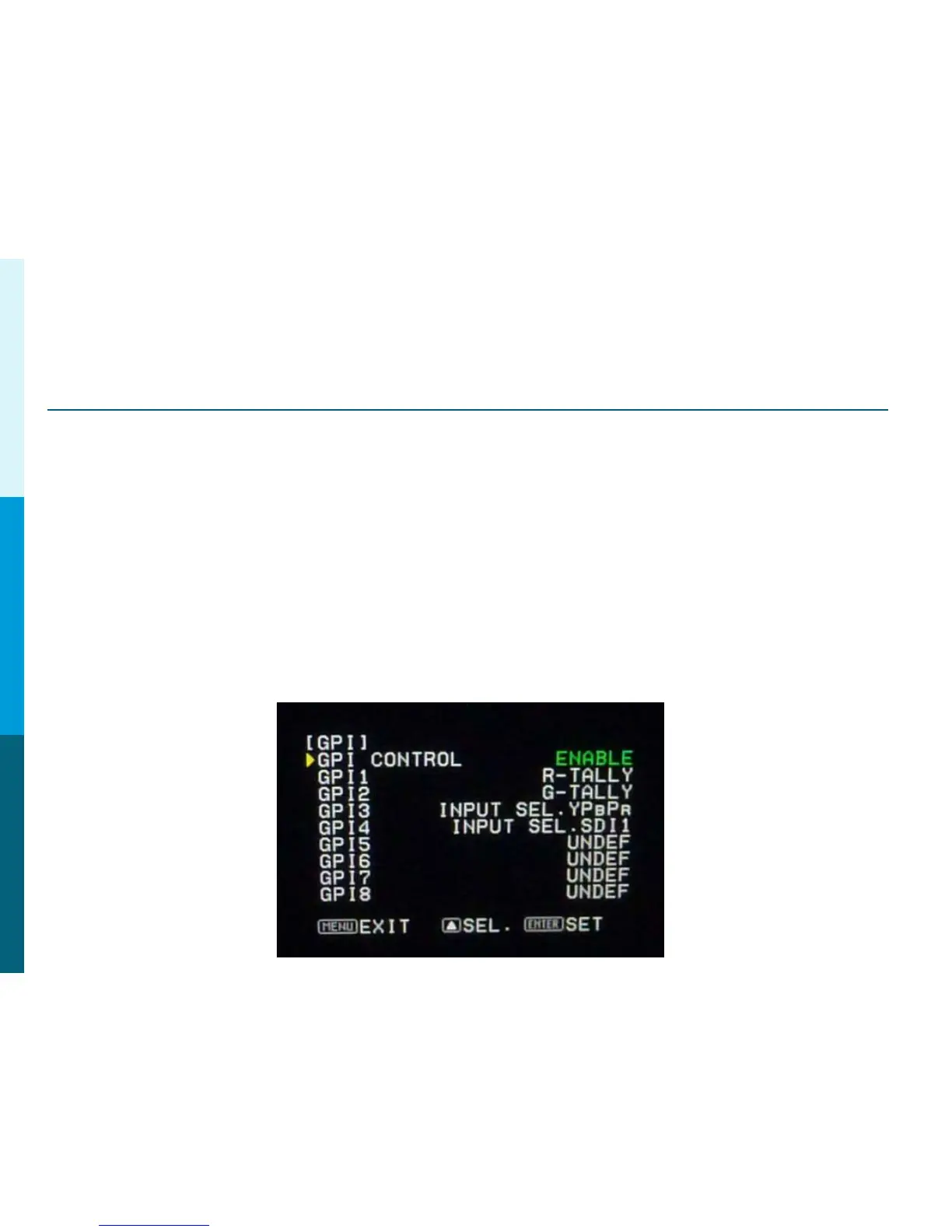

On Board Monitor GPI Assignment
1. Press Menu button on Panasonic Monitor
2. Select GPI
3. GPI Control = Enable
4. GPI 1 = R-Tally
5. GPI 2 = G-Tally
6. GPI 3 = INPUT SEL. YPBPR
7. GPI 4 = INPUT SEL. SDI1 (or VF if using BT-CS910G cable)
8. Exit Menu
