Section 1 - Studio System 300

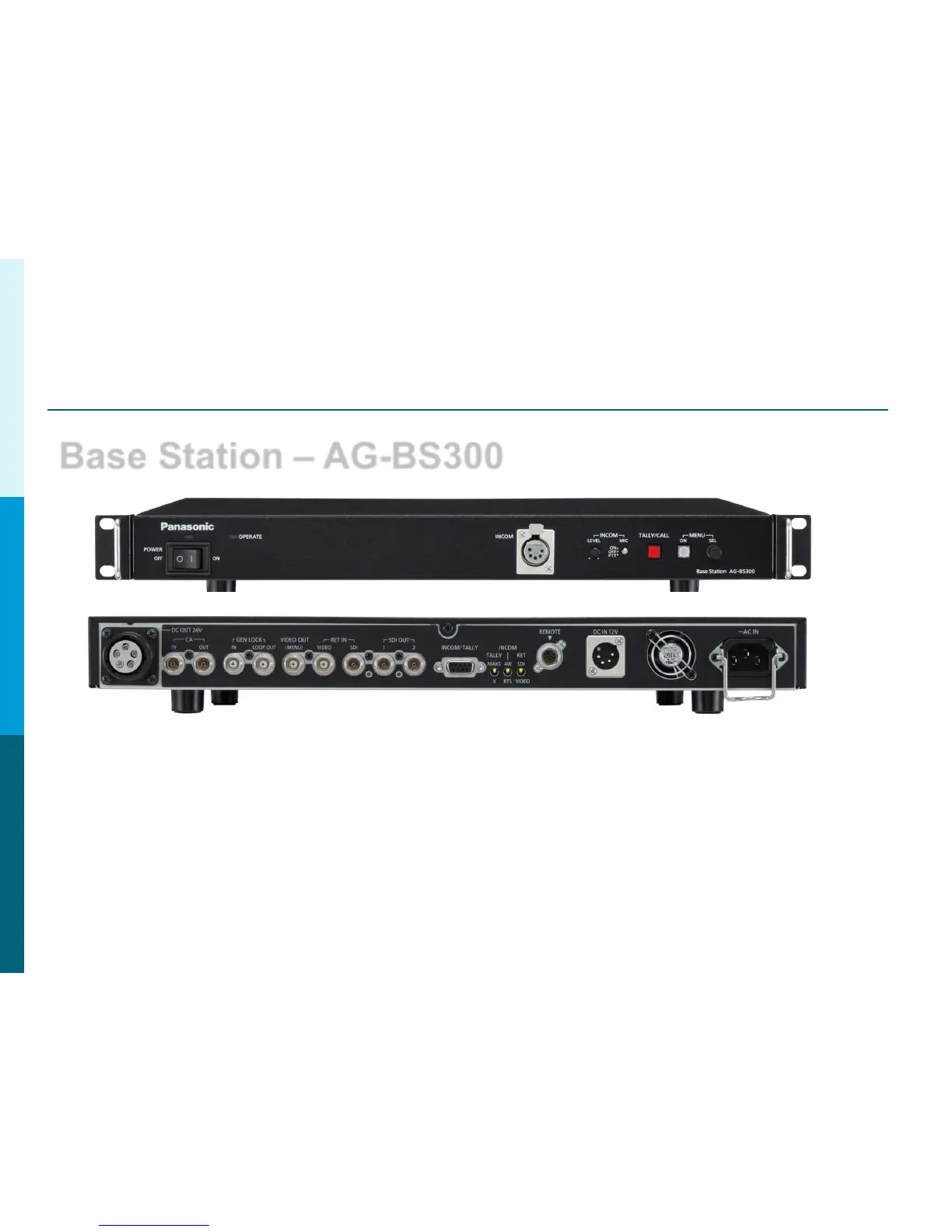

Base Station – AG-BS300
5
The Base Station AG-BS300 is the heart of the system.
It provides the following: Power to the Camera*, Tally, Intercom, GenLock,
Return Video (SDI or Video or Both) and ROP Control.
*Does not provide power under the following 3 conditions:
1. The Base Station is powered using 12 Volts DC.
2. A Fiber Option is used in place of the studio cable.
3. Using 2 RG6 Type BNC Cables Only (no power cable).
Front
Back
