TH-32F400A TH-32F400Z
24
8 Measurements and Adjustments
8.1. Voltage chart of A-board
Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table.

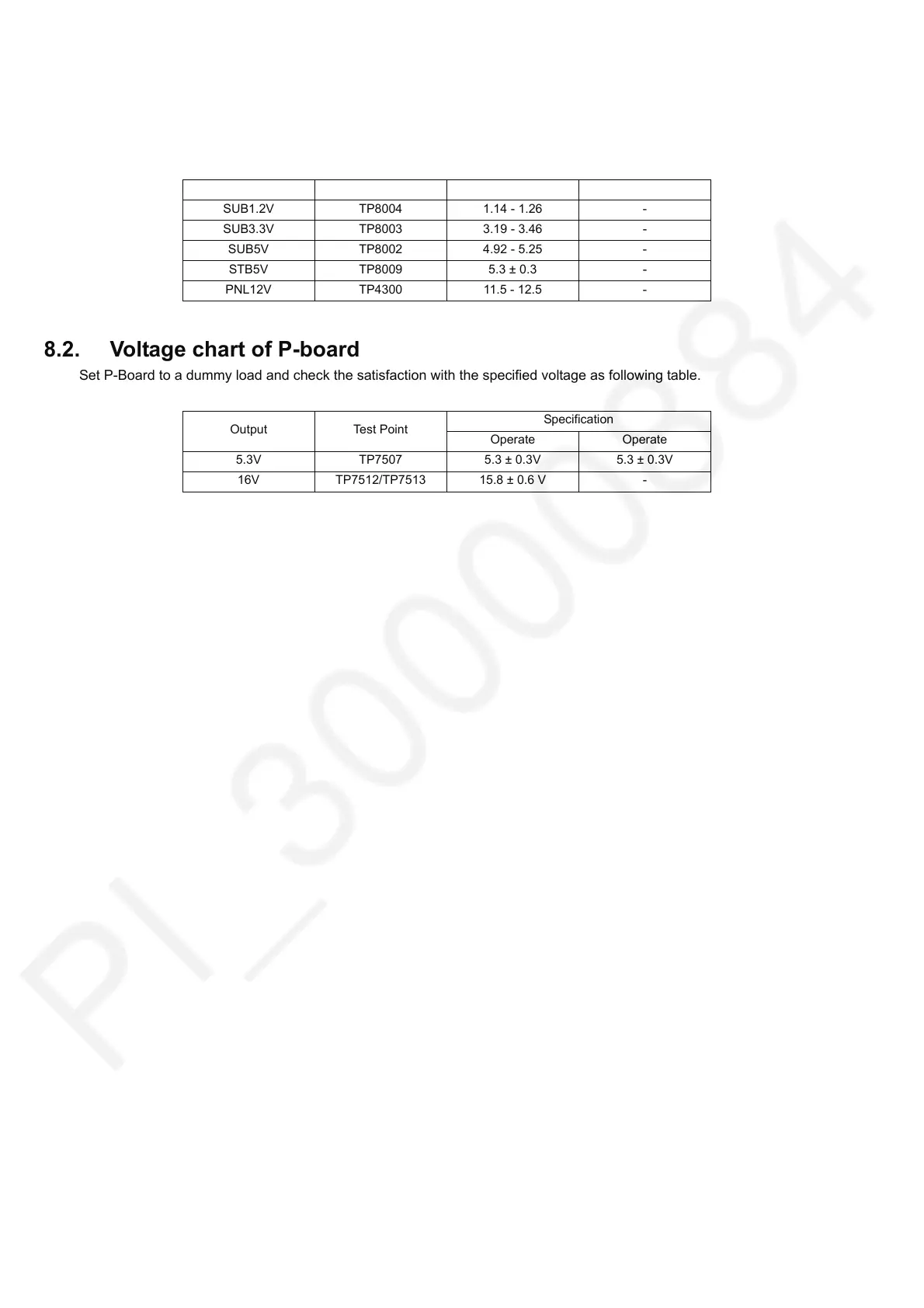

8.2. Voltage chart of P-board
Set P-Board to a dummy load and check the satisfaction with the specified voltage as following table.
Power Supply Name Measurement Point Specification (V) Remark
SUB1.2V TP8004 1.14 - 1.26 -
SUB3.3V TP8003 3.19 - 3.46 -
SUB5V TP8002 4.92 - 5.25 -
STB5V TP8009 5.3 ± 0.3 -
PNL12V TP4300 11.5 - 12.5 -
Output Test Point
Specification
Operate Operate
5.3V TP7507 5.3 ± 0.3V 5.3 ± 0.3V
16V TP7512/TP7513 15.8 ± 0.6 V -
