TH-32F400A TH-32F400Z
7

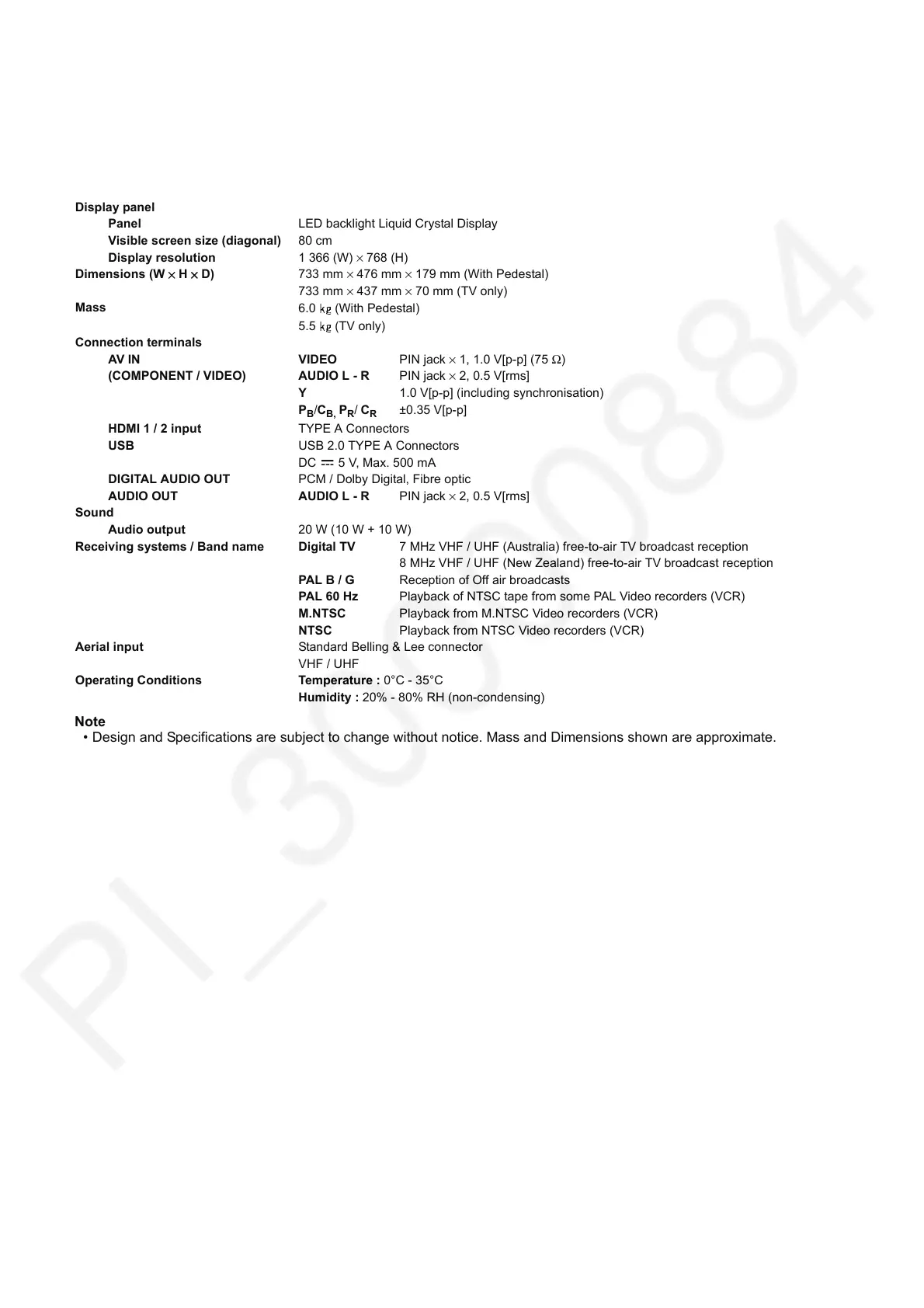

4 Specifications
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
Power
Rating AC 220 - 240 V, 50 / 60 Hz 0.56 A
Normal (Home) mode 38 W
Standby power consumption 0.35 W
Display panel
Panel LED backlight Liquid Crystal Display
Visible screen size (diagonal) 80 cm
Display resolution 1 366 (W) × 768 (H)
Dimensions (W × H × D) 733 mm × 476 mm × 179 mm (With Pedestal)
733 mm × 437 mm × 70 mm (TV only)
Mass
6.0 (With Pedestal)
5.5 (TV only)
Connection terminals
AV IN VIDEO PIN jack × 1, 1.0 V[p-p] (75 Ω)
(COMPONENT / VIDEO) AUDIO L - R PIN jack × 2, 0.5 V[rms]
Y 1.0 V[p-p] (including synchronisation)
P
B
/C
B,
P
R
/
C
R
±0.35 V[p-p]
HDMI 1 / 2 input TYPE A Connectors
USB USB 2.0 TYPE A Connectors
DC 5 V, Max. 500 mA
DIGITAL AUDIO OUT PCM / Dolby Digital, Fibre optic
AUDIO OUT AUDIO L - R PIN jack × 2, 0.5 V[rms]
Sound
Audio output 20 W (10 W + 10 W)
Receiving systems / Band name Digital TV 7 MHz VHF / UHF (Australia) free-to-air TV broadcast reception
8 MHz VHF / UHF (New Zealand) free-to-air TV broadcast reception
PAL B / G Reception of Off air broadcasts
PAL 60 Hz Playback of NTSC tape from some PAL Video recorders (VCR)
M.NTSC Playback from M.NTSC Video recorders (VCR)
NTSC Playback from NTSC Video recorders (VCR)
Aerial input Standard Belling & Lee connector
VHF / UHF
Operating Conditions Temperature : 0°C - 35°C
Humidity : 20% - 80% RH (non-condensing)
