20

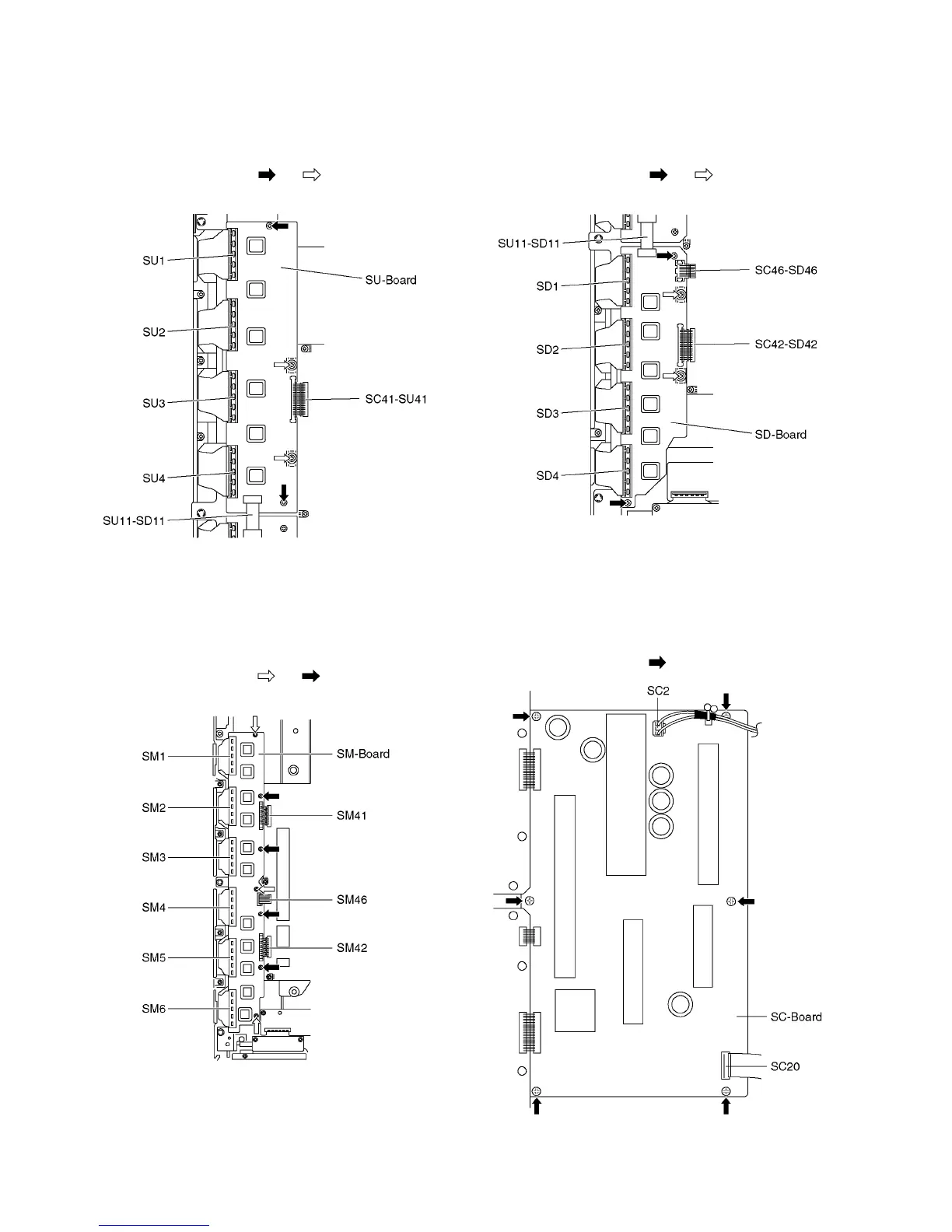

7.6. Remove the SU-Board (42 inch)
1. Remove the flexible cables (SU1, SU2, SU3 and SU4)
connected to the SU-Board.
2. Remove the flexible cable (SU11-SD11) and the bridge
connector (SC41-SU41).
3. Remove the screws (×2 , ×2 ) and remove the SU-
Board.
7.7. Remove the SM-Board
(37 inch)
1. Remove the flexible cables (SM1, SM2, SM3, SM4, SM5
and SM6).
2. Remove the bridge connector (SM41, SM42 and SM46).
3. Remove the screws (×3 , ×4 ) and remove the SM-
Board.
7.8. Remove the SD-Board (42 inch)
1. Remove the flexible cables (SD1, SD2, SD3 and SD4)
connected to the SD-Board.
2. Remove the flexible cable (SU11-SD11) and the bridge
connectors (SC42-SD42 and SC46-SD46).
3. Remove the screws (×2 , ×2 ) and remove the SD-
Board.
7.9. Remove the SC-Board
1. Remove the SU-Board, SM-Board and SD-Board. (See
section 7.6., 7.7. and 7.8.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connector (SC2).
4. Disconnect the flexible cable (SC20).
5. Remove the screws (×6 ) and remove the SC-Board.
To Next Page
