Panasonic TH-37PV80P Service Manual

22
37 inch

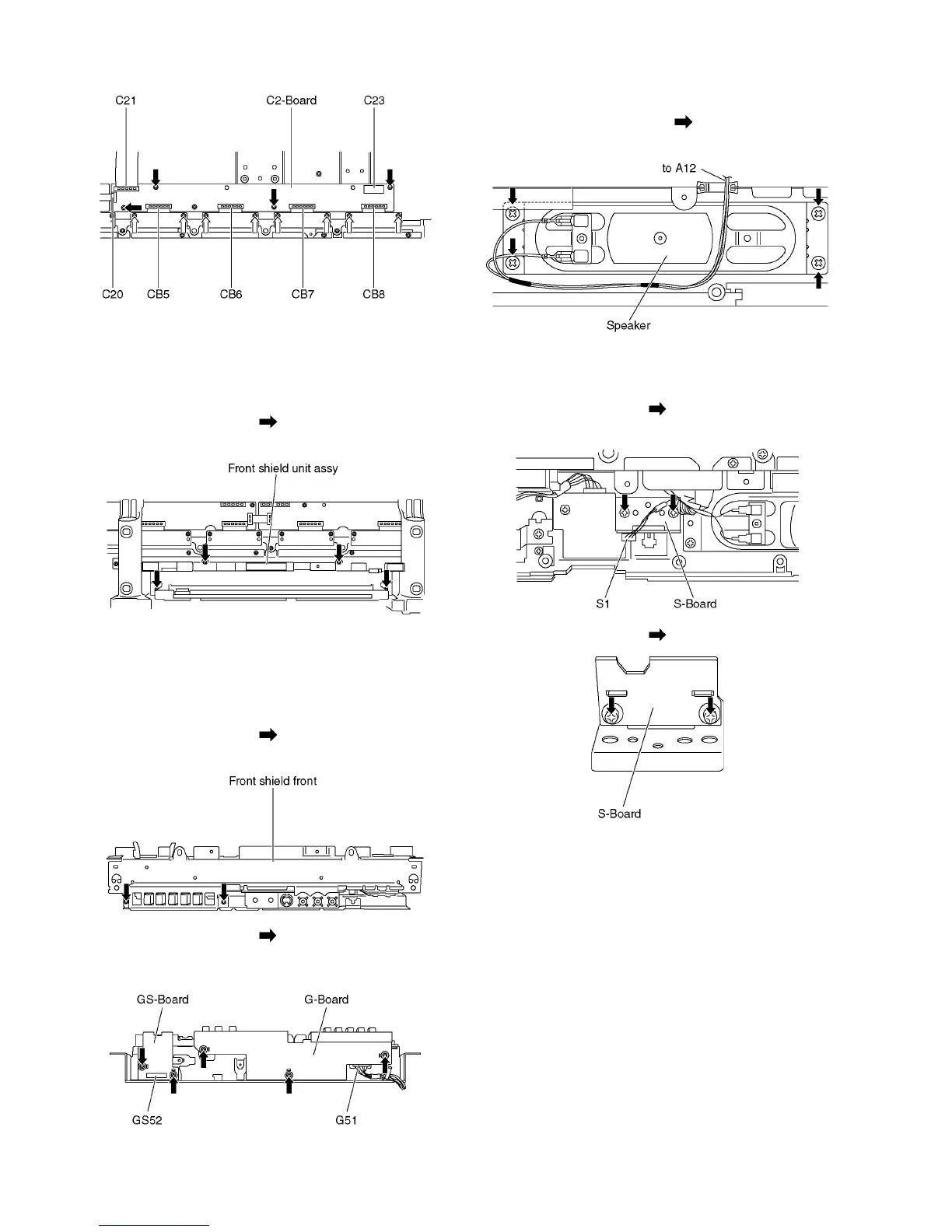

7.14. Remove the front shield unit
assy
1. Disconnect the connector (A51 and A52). (See section
7.4.)
2. Remove the screws (×4 ) and remove the front shield
unit assy.
7.15. Remove the G-Board and
GS-Board
1. Remove the front bracket and the front shield unit assy.
(See section 7.14.)
2. Remove the screws (×2 ) and remove the front shield
front.
3. Remove the screws (×5 ) and disconnect the connec-
tor (G51 and GS52).
4. Remove the G-Board and GS-Board.
7.16. Remove the speaker L, R
1. Disconnect the connector (A12). (See section 7.4.)
2. Remove the screws (×4 each) and remove the
speaker L, R.
7.17. Remove the S-Board
1. Remove the stand brackes. (See section 7.11.)
2. Remove the screws (×2 ).
3. Disconnect the connector (S1).
4. Remove the screws (×2 ) and remove the S-Board.
