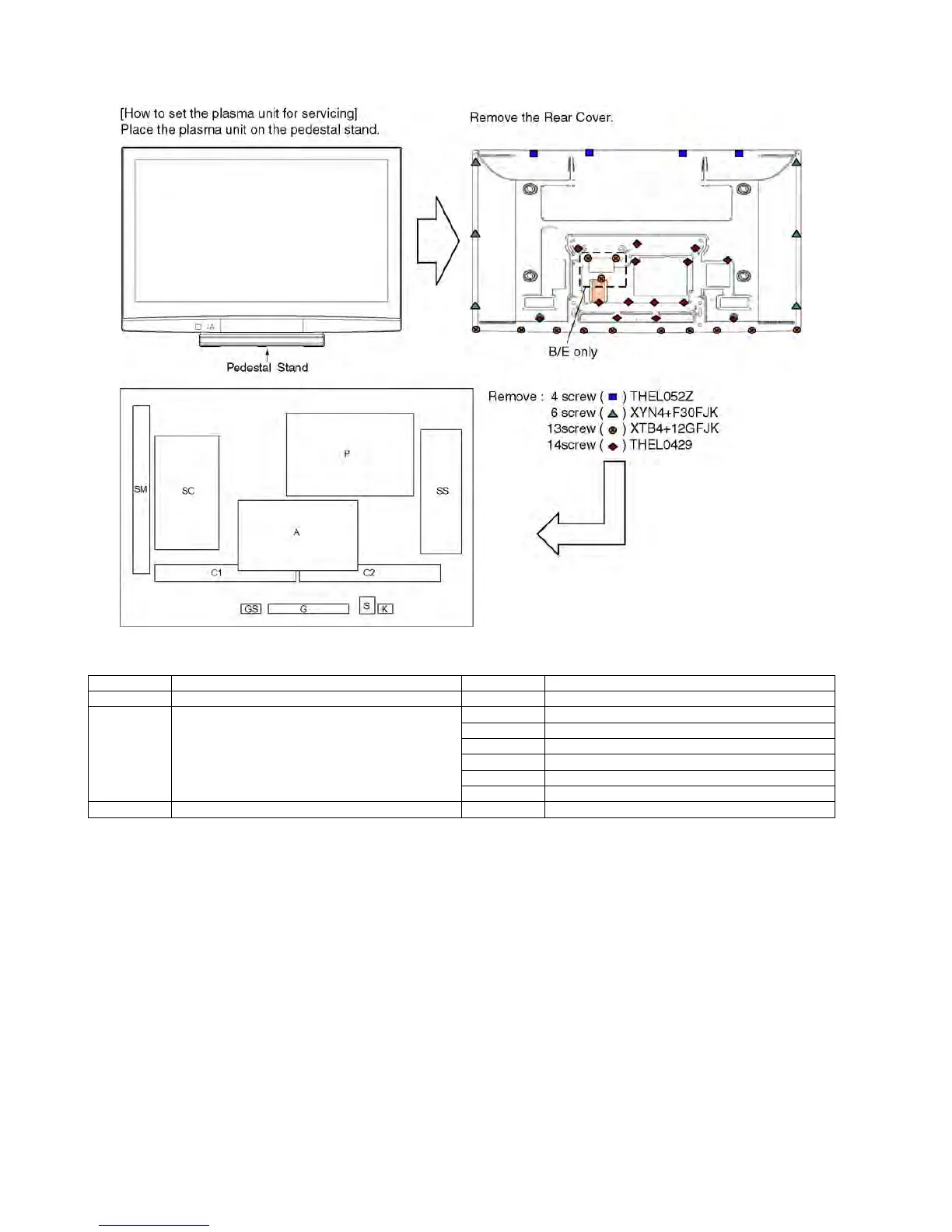

3.2. Service Hint (37 inch)
Board Name Function Board Name Function
P Power Supply C1 Data Driver (Lower Right)
A DC-DC Converter
Speaker out, Sound Processor
AV Ter minal, AV Switch
Digital Signal Processor, Micon, HDMI Interface
Peaks Lite 2p
Format Converter, Plasma AI, Sub-Field Processor
C2 Data Driver (Lower Left)
SC Scan Drive
SM Scan out
SS Sustain Drive
G Key Switch, Front Terminal
GS SD Card Slot
K Remote receiver, Power LED S Power Switch
