H-Freq.
V-Freq.
kHz
Hz
63.98
60.02
Signal Format
1280×1024/60
H-Freq.
Dot Clock Freq.
kHz
MHz
63.98
108.0
V-Freq. Hz
60.02
Signal Format
1280×1024/60
38

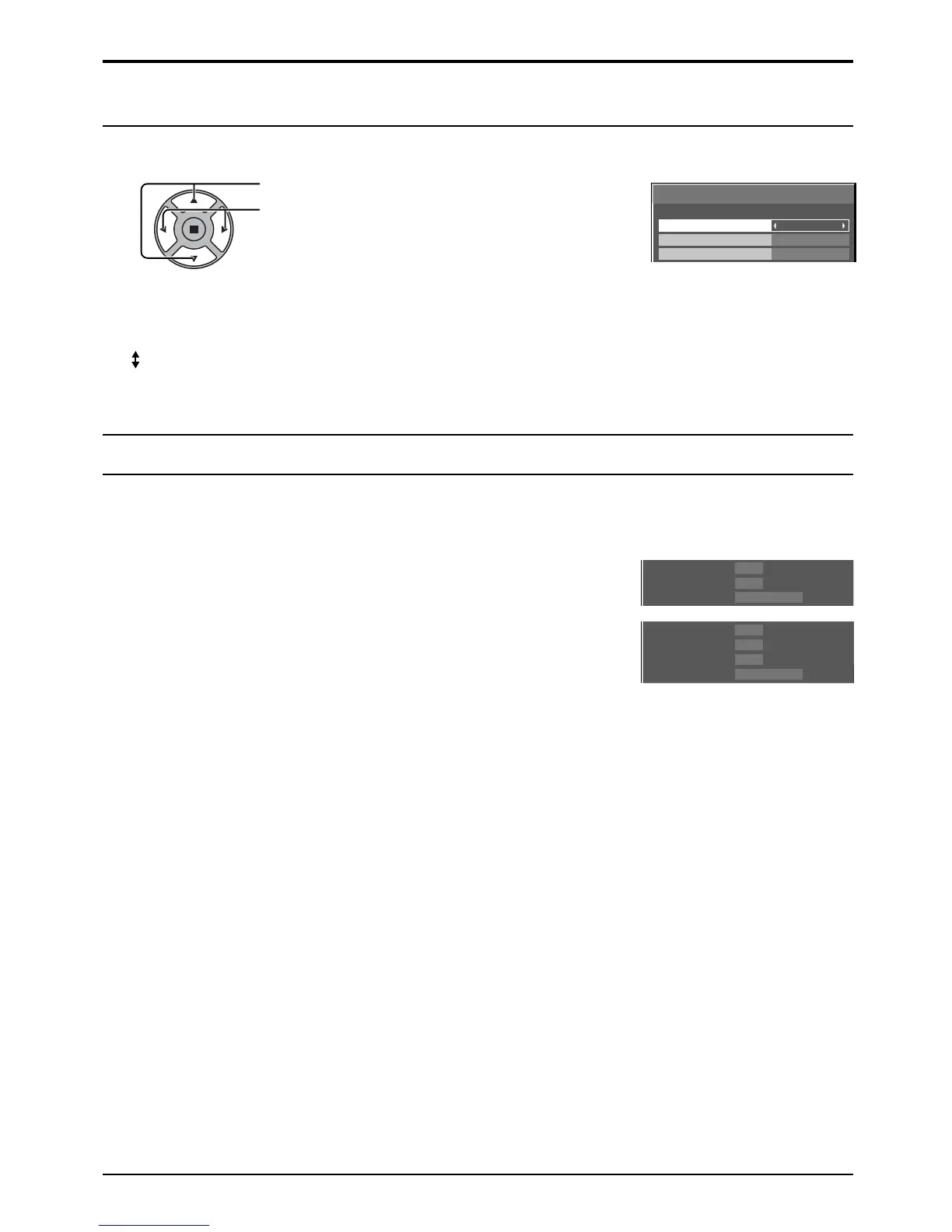

Setup for Input Signals
Sync
Signal
[
RGB
]
Cinema reality
XGA Mode
Auto
Off
1024
×
768
This function operates only during input from PC IN terminal.
Confi rm that the input is set to RGB input (this setting is valid only for RGB input signal).
Auto:
The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.
However, the synchronized signal that is input fi rst is selected.
on G: Uses a synchronized signal on the Video G signal, which is input from the G connector.
Sync
Press to select the “Sync”.
Press to adjust.
Displays the frequency and the type of the current input signal.
This display is valid only for PC and Digital input signal.
Display range:
Horizontal 30 - 110 kHz
Vertical 48 - 120 Hz
The dot clock frequency is displayed during digital signal input.
Note:
The automatically detected signal format may be displayed differently than the
actual input signal.
Input signal display
