Video equipment connection

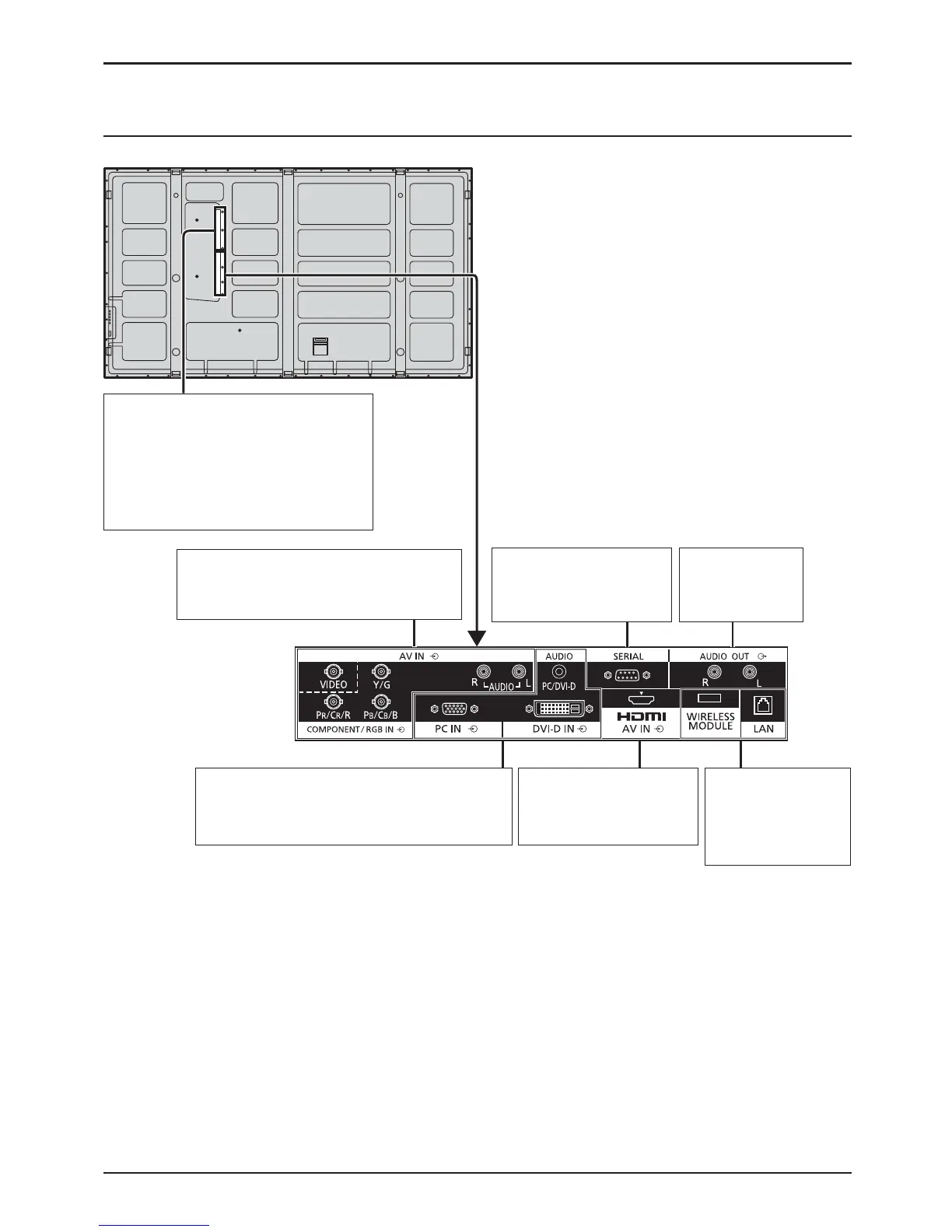

Connections
SLOT: Terminal board (optional
accessories) insert slot
(see page 4)
Note:
The lower side slot is for terminal board
with 2-slot width. The terminal board
with 1-slot width does not function when
installed in the lower side slot.
SERIAL:
Control the Plasma Display
by connecting to PC.
(see page 14)
AUDIO OUT
Connect to sound
equipment.
(see page 11)
DVI-D IN: DVI-D Input Terminal (see page 12)
PC IN: PC Input Terminal Connect to video
terminal of PC or equipment with Y,
P
B(CB) and PR(CR) output. (see page 13)
AV IN (HDMI): HDMI Input
Terminal (see page 12)
Connect to video equipment
such as VCR or DVD player.
WIRELESS
MODULE, LAN:
Refer to “Operating
Instructions, Network
Operations”.
AV IN (VIDEO): Composite Video Input Terminal
(see
page 11)
COMPONENT/RGB IN: Component/RGB Video
Input Terminal (see page 11)
