Panasonic TH-85PB1W - AUDIO out Terminals Connection; VIDEO and COMPONENT; RGB in Connection

AUDIO
OUT
R
L
VIDEO
OUT
AUDIO
OUT
R
L
, Y , P B , P R
OUT
P
R
P B
Y
11
Connections

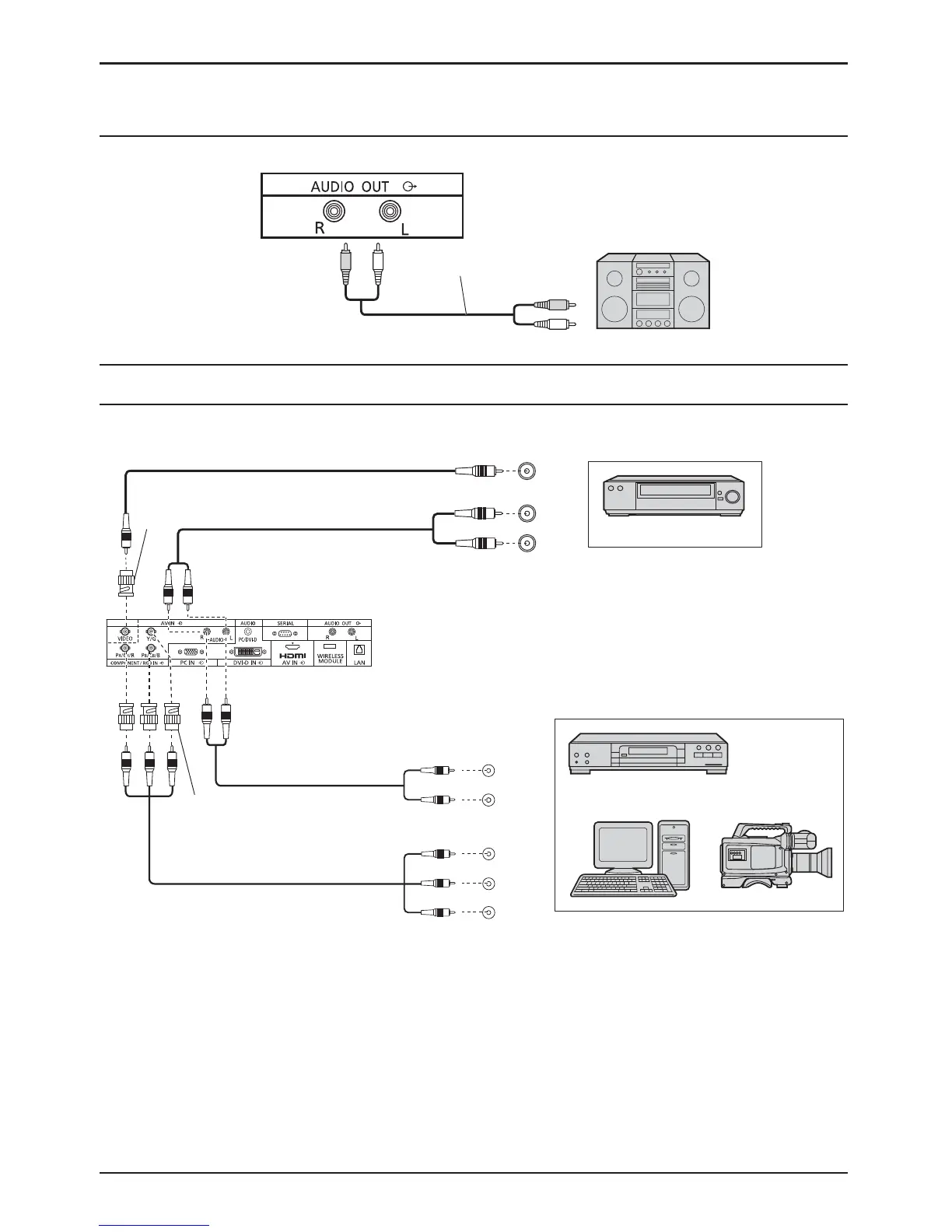

VIDEO and COMPONENT / RGB IN connection
AUDIO OUT Terminals connection
Notes:
• Change the “Component/RGB-in select” setting in the “Setup”
menu to “Component” (when Component signal connection) or
“RGB” (when RGB signal connection). (see page 48)
• Signals input to COMPONENT/RGB IN terminals correspond to
Sync on G or Sync on Y.
RCA-BNC
Adapter plug
AUDIO L-R:
Shared with VIDEO and
COMPONENT/RGB IN
RCA-BNC
Adapter plug
DVD Player
VCR
Computer RGB Camcorder
Note:
Additional equipment, cables and adapter plugs
shown are not supplied with this set.
Stereophonic sound code
audio equipment
line-in
