7.13. EMI Spec (LVDS)

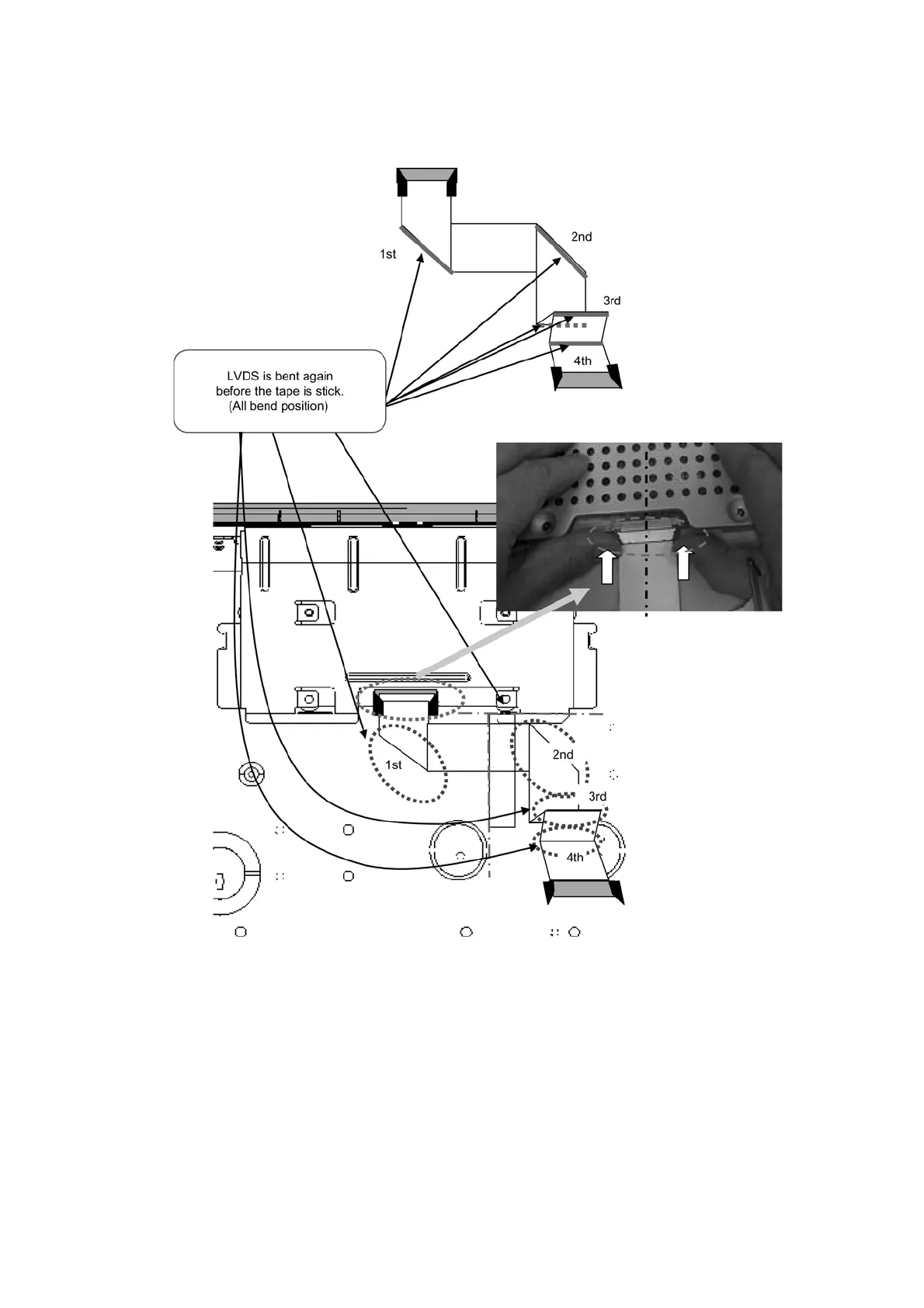

1. When insert LVDS wire to T-con conector,make sure must center position follow bellow picture.
2. After fixing LVDS wire please bent again follow the picture.
