TH-L32X20Z
23

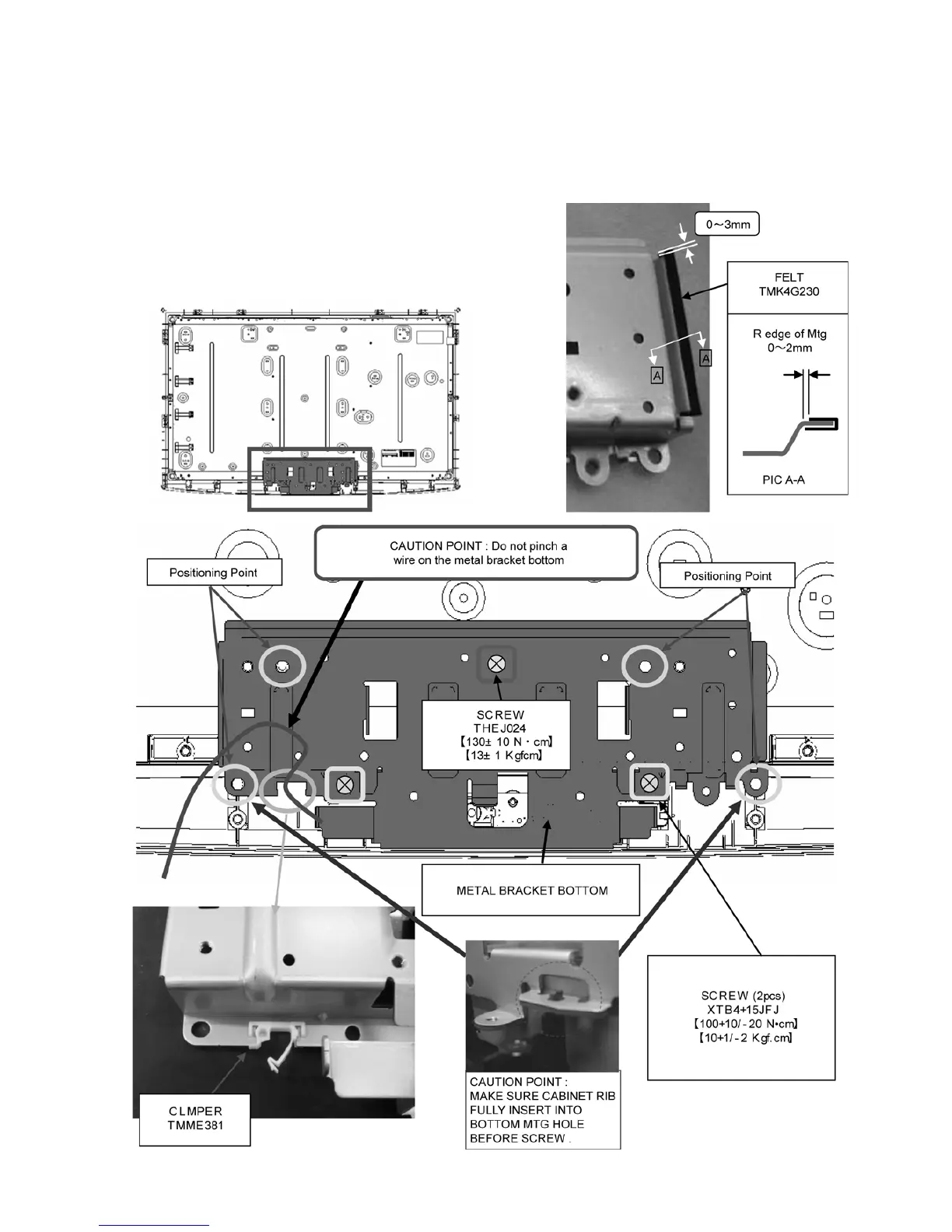

7.10. LCD Mounting Installation 1
1. Stick the FELT to METAL BRACKET BOTTOM.
2. Put clamper on METAL BRACKET BOTTOM.
3. Put METAL BRACKET BOTTOM on the LCD PANEL.
4. Fix them with screw.
5. Wire dressing and lock CLAMPER.
