Installing the Alkaline Ionizer (continued)

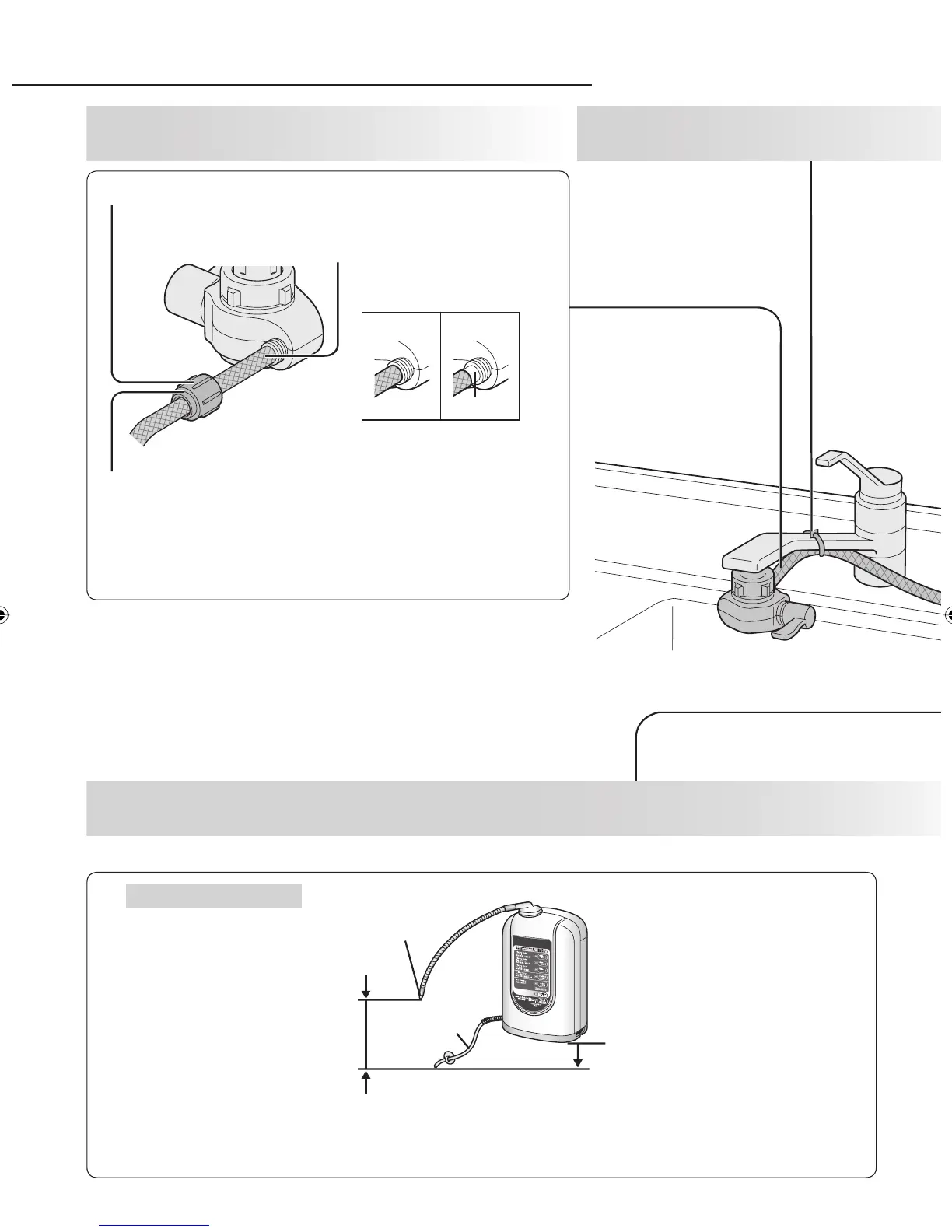

q Remove the hose fastening nut from the bypass
selector, and pass the hose through the nut.
e Tighten up the hose fastening nut securely.
● Do not use any tools for this job (since the hose
fastening nut may be damaged).
w Insert the water supply
hose into the bypass
selector as far as it will go.
OK
NG
The tip of the drain hose must be below the level of the bottom of the main unit and the
difference in height between the main spout and tip of the drain hose must be greater than
10 cm and less than 50 cm (so that the appropriate pH level (ion concentration) is achieved).
Installation position
Main spout
Drain hose
Bottom of main unit
Height difference
After completing the preparations,
connect the water supply hose.
1
Secure the water supply
hose
(using the hose strap)
2
Secure the hoses so that they will not move out of place.
4
Secure the drain hose using the suction disc.
Gap
