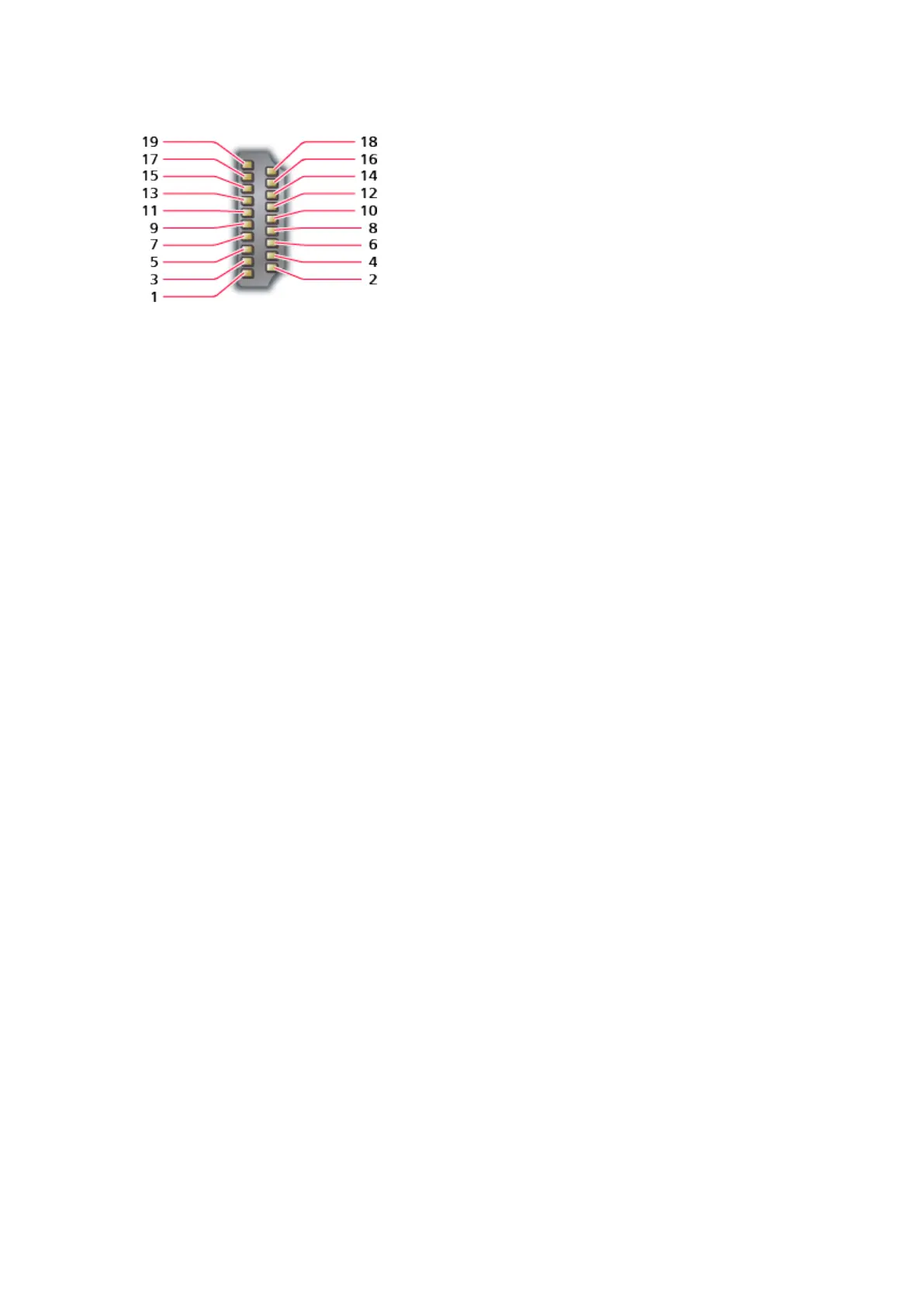

■ HDMI terminal
1 : TMDS Data2+
2 : TMDS Data2 Shield
3 : TMDSData2−
4 : TMDS Data1+
5 : TMDS Data1 Shield
6 : TMDSData1−
7 : TMDS Data0+
8 : TMDS Data0 Shield
9 : TMDSData0−
10: TMDS Clock+
11 : TMDS Clock Shield
12: TMDSClock−
13: CEC
14: Utility
15: SCL
16: SDA
17: DDC/CEC Ground
18: +5V Power
19: Hot Plug Detect
