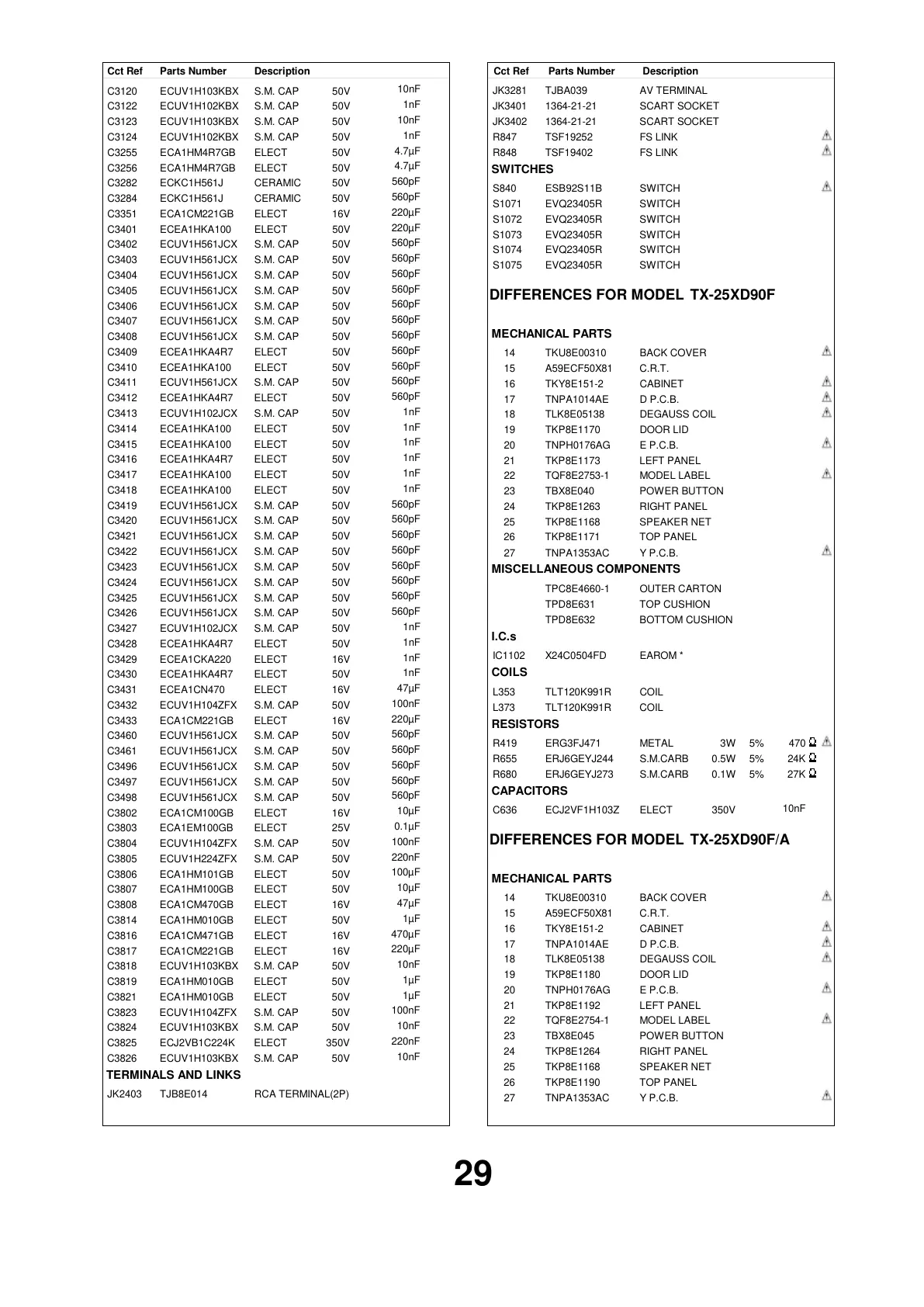

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
S.M. CAPC3120 ECUV1H103KBX 50V
10nF
S.M. CAPC3122 ECUV1H102KBX 50V
1nF
S.M. CAPC3123 ECUV1H103KBX 50V
10nF
S.M. CAPC3124 ECUV1H102KBX 50V
1nF
ELECT C3255 ECA1HM4R7GB 50V
4.7µF
ELECT C3256 ECA1HM4R7GB 50V
4.7µF
CERAMIC C3282 ECKC1H561J 50V
560pF
CERAMIC C3284 ECKC1H561J 50V
560pF
ELECT C3351 ECA1CM221GB 16V
220µF
ELECT C3401 ECEA1HKA100 50V
220µF
S.M. CAPC3402 ECUV1H561JCX 50V
560pF
S.M. CAPC3403 ECUV1H561JCX 50V
560pF
S.M. CAPC3404 ECUV1H561JCX 50V
560pF
S.M. CAPC3405 ECUV1H561JCX 50V
560pF
S.M. CAPC3406 ECUV1H561JCX 50V
560pF
S.M. CAPC3407 ECUV1H561JCX 50V
560pF
S.M. CAPC3408 ECUV1H561JCX 50V
560pF
ELECT C3409 ECEA1HKA4R7 50V
560pF
ELECT C3410 ECEA1HKA100 50V
560pF
S.M. CAPC3411 ECUV1H561JCX 50V
560pF
ELECT C3412 ECEA1HKA4R7 50V
560pF
S.M. CAPC3413 ECUV1H102JCX 50V
1nF
ELECT C3414 ECEA1HKA100 50V
1nF
ELECT C3415 ECEA1HKA100 50V
1nF
ELECT C3416 ECEA1HKA4R7 50V
1nF
ELECT C3417 ECEA1HKA100 50V
1nF
ELECT C3418 ECEA1HKA100 50V
1nF
S.M. CAPC3419 ECUV1H561JCX 50V
560pF
S.M. CAPC3420 ECUV1H561JCX 50V
560pF
S.M. CAPC3421 ECUV1H561JCX 50V
560pF
S.M. CAPC3422 ECUV1H561JCX 50V
560pF
S.M. CAPC3423 ECUV1H561JCX 50V
560pF
S.M. CAPC3424 ECUV1H561JCX 50V
560pF
S.M. CAPC3425 ECUV1H561JCX 50V
560pF
S.M. CAPC3426 ECUV1H561JCX 50V
560pF
S.M. CAPC3427 ECUV1H102JCX 50V
1nF
ELECT C3428 ECEA1HKA4R7 50V
1nF
ELECT C3429 ECEA1CKA220 16V
1nF
ELECT C3430 ECEA1HKA4R7 50V
1nF
ELECT C3431 ECEA1CN470 16V
47µF
S.M. CAPC3432 ECUV1H104ZFX 50V
100nF
ELECT C3433 ECA1CM221GB 16V
220µF
S.M. CAPC3460 ECUV1H561JCX 50V
560pF
S.M. CAPC3461 ECUV1H561JCX 50V
560pF
S.M. CAPC3496 ECUV1H561JCX 50V
560pF
S.M. CAPC3497 ECUV1H561JCX 50V
560pF
S.M. CAPC3498 ECUV1H561JCX 50V
560pF
ELECT C3802 ECA1CM100GB 16V
10µF
ELECT C3803 ECA1EM100GB 25V
0.1µF
S.M. CAPC3804 ECUV1H104ZFX 50V
100nF
S.M. CAPC3805 ECUV1H224ZFX 50V
220nF
ELECT C3806 ECA1HM101GB 50V
100µF
ELECT C3807 ECA1HM100GB 50V
10µF
ELECT C3808 ECA1CM470GB 16V
47µF
ELECT C3814 ECA1HM010GB 50V
1µF
ELECT C3816 ECA1CM471GB 16V
470µF
ELECT C3817 ECA1CM221GB 16V
220µF
S.M. CAPC3818 ECUV1H103KBX 50V
10nF
ELECT C3819 ECA1HM010GB 50V
1µF
ELECT C3821 ECA1HM010GB 50V
1µF
S.M. CAPC3823 ECUV1H104ZFX 50V
100nF
S.M. CAPC3824 ECUV1H103KBX 50V
10nF
ELECTC3825 ECJ2VB1C224K 350V
220nF
S.M. CAPC3826 ECUV1H103KBX 50V
10nF
TERMINALS AND LINKS
RCA TERMINAL(2P)JK2403 TJB8E014
AV TERMINAL JK3281 TJBA039
SCART SOCKET JK3401 1364-21-21
SCART SOCKET JK3402 1364-21-21
FS LINK R847 TSF19252
FS LINK R848 TSF19402
SWITCHES
SWITCH S840 ESB92S11B
SWITCHS1071 EVQ23405R
SWITCHS1072 EVQ23405R
SWITCHS1073 EVQ23405R
SWITCHS1074 EVQ23405R
SWITCHS1075 EVQ23405R
DIFFERENCES FOR MODEL TX-25XD90F
MECHANICAL PARTS
BACK COVER 14 TKU8E00310
C.R.T. 15 A59ECF50X81
CABINET 16 TKY8E151-2
D P.C.B. 17 TNPA1014AE
DEGAUSS COIL 18 TLK8E05138
DOOR LID 19 TKP8E1170
E P.C.B. 20 TNPH0176AG
LEFT PANEL 21 TKP8E1173
MODEL LABEL 22 TQF8E2753-1
POWER BUTTON 23 TBX8E040
RIGHT PANEL 24 TKP8E1263
SPEAKER NET 25 TKP8E1168
TOP PANEL 26 TKP8E1171
Y P.C.B. 27 TNPA1353AC
MISCELLANEOUS COMPONENTS
OUTER CARTON TPC8E4660-1
TOP CUSHION TPD8E631
BOTTOM CUSHION TPD8E632
I.C.s
EAROM * IC1102 X24C0504FD
COILS
COIL L353 TLT120K991R
COIL L373 TLT120K991R
RESISTORS
METALR419 ERG3FJ471 3W 5% 470
S.M.CARBR655 ERJ6GEYJ244 0.5W 5% 24K
S.M.CARBR680 ERJ6GEYJ273 0.1W 5% 27K
CAPACITORS
ELECTC636 ECJ2VF1H103Z 350V
10nF
DIFFERENCES FOR MODEL TX-25XD90F/A
MECHANICAL PARTS
BACK COVER 14 TKU8E00310
C.R.T. 15 A59ECF50X81
CABINET 16 TKY8E151-2
D P.C.B. 17 TNPA1014AE
DEGAUSS COIL 18 TLK8E05138
DOOR LID 19 TKP8E1180
E P.C.B. 20 TNPH0176AG
LEFT PANEL 21 TKP8E1192
MODEL LABEL 22 TQF8E2754-1
POWER BUTTON 23 TBX8E045
RIGHT PANEL 24 TKP8E1264
SPEAKER NET 25 TKP8E1168
TOP PANEL 26 TKP8E1190
Y P.C.B. 27 TNPA1353AC
29
