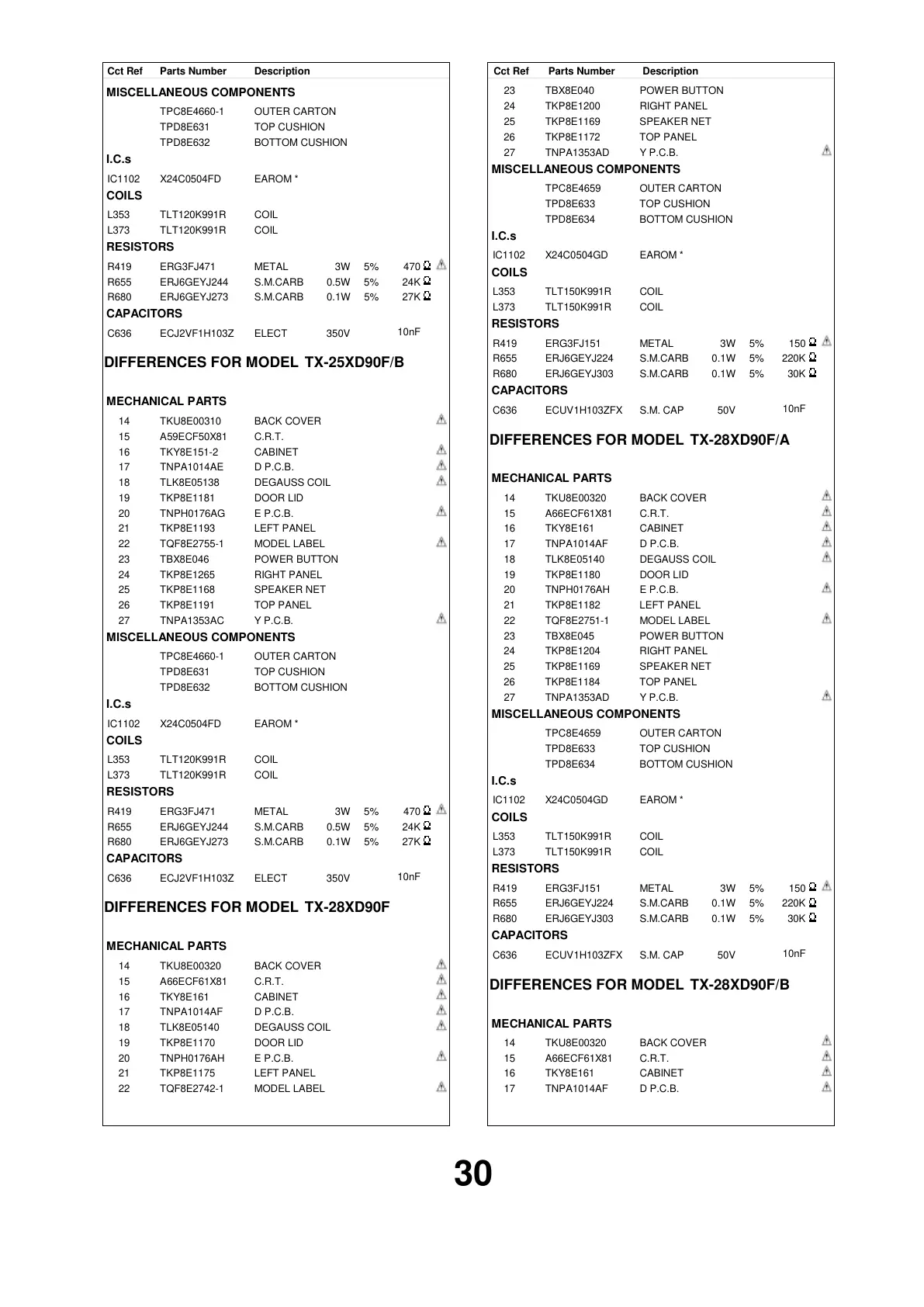

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
MISCELLANEOUS COMPONENTS
OUTER CARTON TPC8E4660-1
TOP CUSHION TPD8E631
BOTTOM CUSHION TPD8E632
I.C.s
EAROM * IC1102 X24C0504FD
COILS
COIL L353 TLT120K991R
COIL L373 TLT120K991R
RESISTORS
METALR419 ERG3FJ471 3W 5% 470
S.M.CARBR655 ERJ6GEYJ244 0.5W 5% 24K
S.M.CARBR680 ERJ6GEYJ273 0.1W 5% 27K
CAPACITORS
ELECTC636 ECJ2VF1H103Z 350V
10nF
DIFFERENCES FOR MODEL TX-25XD90F/B
MECHANICAL PARTS
BACK COVER 14 TKU8E00310
C.R.T. 15 A59ECF50X81
CABINET 16 TKY8E151-2
D P.C.B. 17 TNPA1014AE
DEGAUSS COIL 18 TLK8E05138
DOOR LID 19 TKP8E1181
E P.C.B. 20 TNPH0176AG
LEFT PANEL 21 TKP8E1193
MODEL LABEL 22 TQF8E2755-1
POWER BUTTON 23 TBX8E046
RIGHT PANEL 24 TKP8E1265
SPEAKER NET 25 TKP8E1168
TOP PANEL 26 TKP8E1191
Y P.C.B. 27 TNPA1353AC
MISCELLANEOUS COMPONENTS
OUTER CARTON TPC8E4660-1
TOP CUSHION TPD8E631
BOTTOM CUSHION TPD8E632
I.C.s
EAROM * IC1102 X24C0504FD
COILS
COIL L353 TLT120K991R
COIL L373 TLT120K991R
RESISTORS
METALR419 ERG3FJ471 3W 5% 470
S.M.CARBR655 ERJ6GEYJ244 0.5W 5% 24K
S.M.CARBR680 ERJ6GEYJ273 0.1W 5% 27K
CAPACITORS
ELECTC636 ECJ2VF1H103Z 350V
10nF
DIFFERENCES FOR MODEL TX-28XD90F
MECHANICAL PARTS
BACK COVER 14 TKU8E00320
C.R.T. 15 A66ECF61X81
CABINET 16 TKY8E161
D P.C.B. 17 TNPA1014AF
DEGAUSS COIL 18 TLK8E05140
DOOR LID 19 TKP8E1170
E P.C.B. 20 TNPH0176AH
LEFT PANEL 21 TKP8E1175
MODEL LABEL 22 TQF8E2742-1
POWER BUTTON 23 TBX8E040
RIGHT PANEL 24 TKP8E1200
SPEAKER NET 25 TKP8E1169
TOP PANEL 26 TKP8E1172
Y P.C.B. 27 TNPA1353AD
MISCELLANEOUS COMPONENTS
OUTER CARTON TPC8E4659
TOP CUSHION TPD8E633
BOTTOM CUSHION TPD8E634
I.C.s
EAROM * IC1102 X24C0504GD
COILS
COILL353 TLT150K991R
COILL373 TLT150K991R
RESISTORS
METALR419 ERG3FJ151 3W 5% 150
S.M.CARBR655 ERJ6GEYJ224 0.1W 5% 220K
S.M.CARBR680 ERJ6GEYJ303 0.1W 5% 30K
CAPACITORS
S.M. CAPC636 ECUV1H103ZFX 50V
10nF
DIFFERENCES FOR MODEL TX-28XD90F/A
MECHANICAL PARTS
BACK COVER 14 TKU8E00320
C.R.T. 15 A66ECF61X81
CABINET 16 TKY8E161
D P.C.B. 17 TNPA1014AF
DEGAUSS COIL 18 TLK8E05140
DOOR LID 19 TKP8E1180
E P.C.B. 20 TNPH0176AH
LEFT PANEL 21 TKP8E1182
MODEL LABEL 22 TQF8E2751-1
POWER BUTTON 23 TBX8E045
RIGHT PANEL 24 TKP8E1204
SPEAKER NET 25 TKP8E1169
TOP PANEL 26 TKP8E1184
Y P.C.B. 27 TNPA1353AD
MISCELLANEOUS COMPONENTS
OUTER CARTON TPC8E4659
TOP CUSHION TPD8E633
BOTTOM CUSHION TPD8E634
I.C.s
EAROM * IC1102 X24C0504GD
COILS
COILL353 TLT150K991R
COILL373 TLT150K991R
RESISTORS
METALR419 ERG3FJ151 3W 5% 150
S.M.CARBR655 ERJ6GEYJ224 0.1W 5% 220K
S.M.CARBR680 ERJ6GEYJ303 0.1W 5% 30K
CAPACITORS
S.M. CAPC636 ECUV1H103ZFX 50V
10nF
DIFFERENCES FOR MODEL TX-28XD90F/B
MECHANICAL PARTS
BACK COVER 14 TKU8E00320
C.R.T. 15 A66ECF61X81
CABINET 16 TKY8E161
D P.C.B. 17 TNPA1014AF
30
