4 Self Check Function
4.1. Self Check
1. Self-Check is used to automatically check the bus lines and hexadecimal code of the TV set.
2. To get into the Self -Check mode press the Down (
) button on the customer controls at the front of the set, at the same
time pressing the Status/Information (

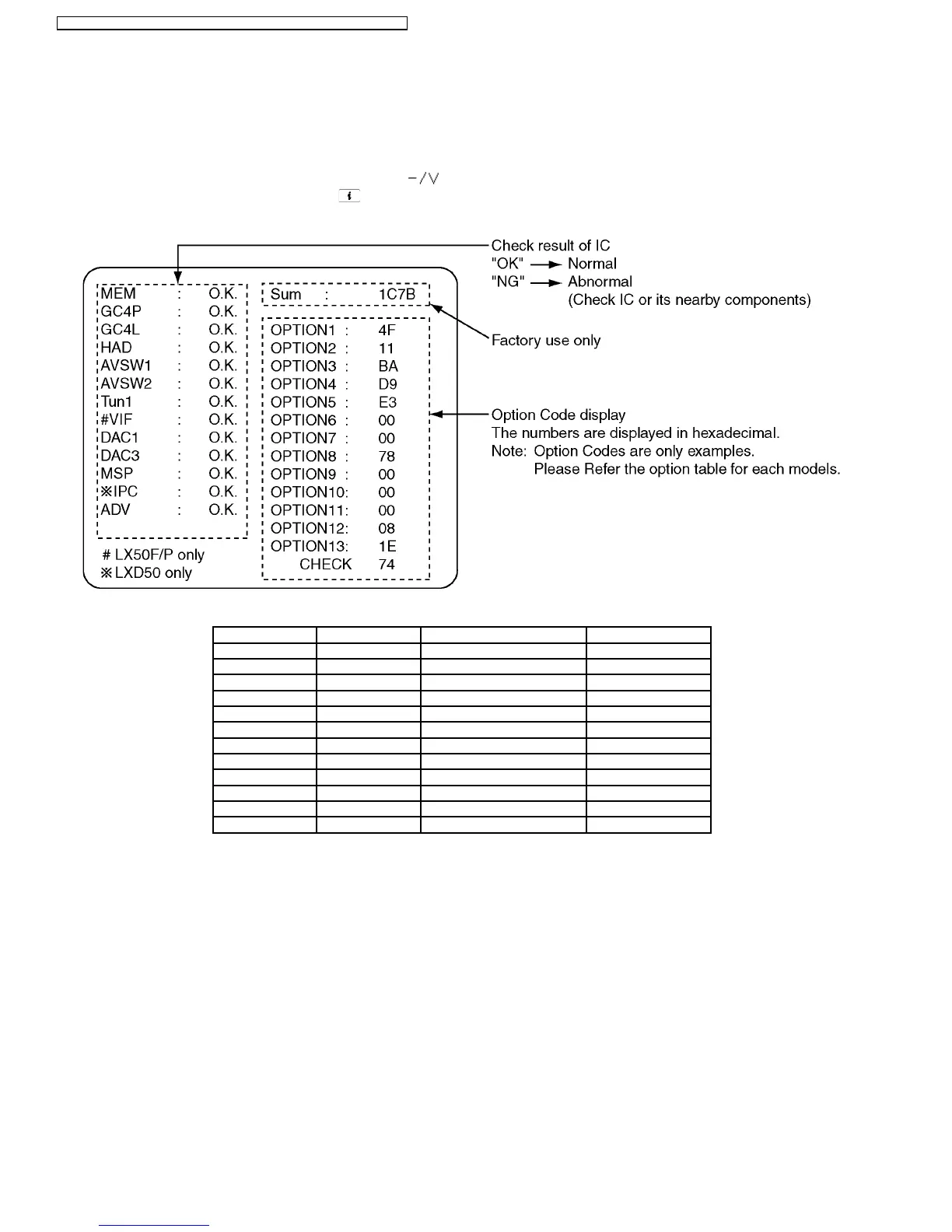

) button on the remote control, and the screen will show :
3. Turn off the TV to reset JPEG Viewer circuit after SELF-CHECK.
If the CCU ports have been checked and found to be incorrect or not located then “--” will appear in place of “O.K.”.
Display Ref. No. Description P.C.B.
MEM IC1107 Memory DG-Board
GC4P IC4054 Global Core DG-Board
GC4L IC4057 Global Core DG-Board
HAD IC4012 OSD RGB A/D Converter DG-Board
AVSW1 IC3005 AV Switch VIDEO H-Board
AVSW2 IC2105 AV Switch AUDIO H-Board
Tun1 TU3201 Tuner H-Board
DAC1 IC1106 DAC control 1 DG-Board
DAC3 IC3006 DAC control 3 H-Board
MSP IC2106 Stereo Decoder H-Board
IPC IC8013 HDSL PEAKS Lite XV-Board
ADV IC4005 A/D Converter DG-Board
6
TX-32LXD50 / TX-26LXD50 / TX-32LX50F / TX-32LX50P / TX-26LX50F / TX-26LX50P
To Next Page
