Panasonic TX-32LXD50 - Power LED Blinking Timing Chart; Contents

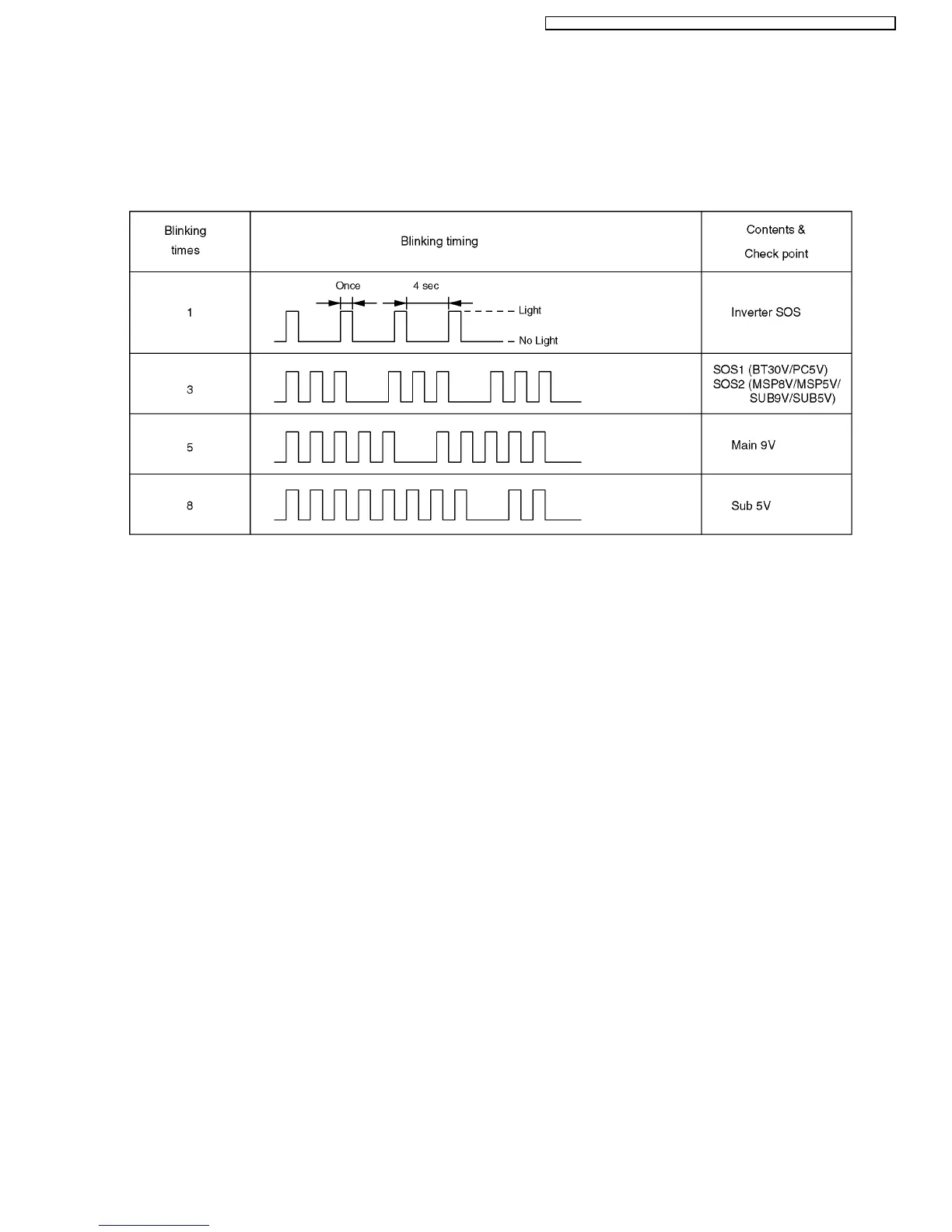

4.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abonormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by the number of blinking of the Power LED on the front panel of the unit.
7
TX-32LXD50 / TX-26LXD50 / TX-32LX50F / TX-32LX50P / TX-26LX50F / TX-26LX50P
